Short Message Service 9
339
SMS Server Setup
Before starting the SMS service, you must configure these three settings: (1) Device Settings, (2)
Server Settings, and (3) Account Settings.
Device Settings
1. Click the Device Setting button (No. 5, Figure 9-1), and then select GSM Module. The following
dialog box appears.

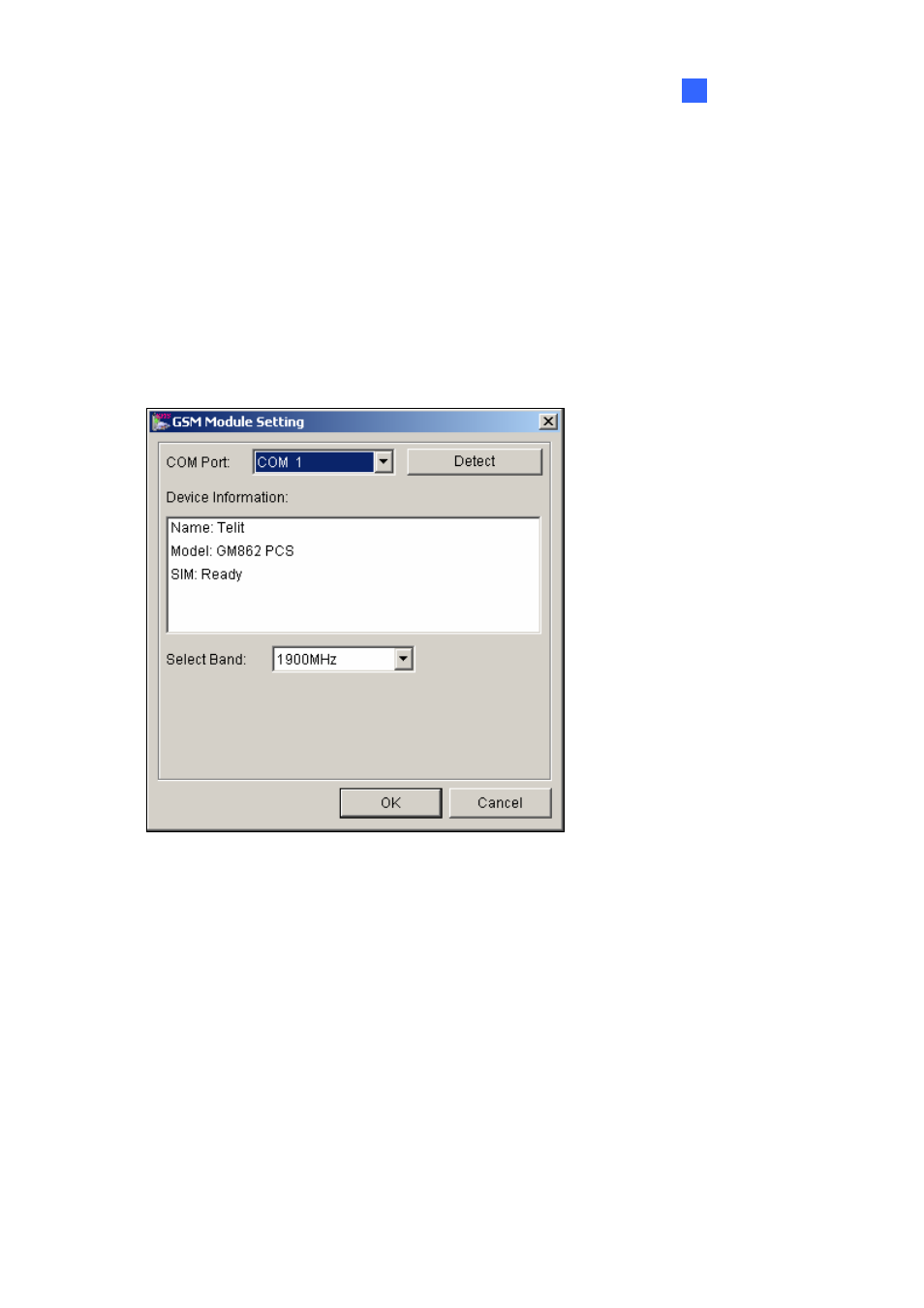

Figure 9-2 GSM Module Setting
2. Select the COM port connecting to a GSM/GPRS modem.
3. Click the Detect button to detect the modem.
¾ If the connection between the modem and the computer is established, the message will
show in the Device Information field: Name: (Manufacturer), Module: xxx, SIM Ready.
¾ If the connection fails, the display will be shown as: No usable device in COM xxx.
4. If you are using a tri-band modem, select 1900 or 1800 MHz from the drop-down list of Select
Band.
5. Click OK to apply above settings.
