CCTV Camera Pros Geovision 8.2 Multicam Digital Surveillance System - Manual (Page 436)

422
Setting Up Report Criteria
1. In the Report Generator dialog box, click the Program Report tab.

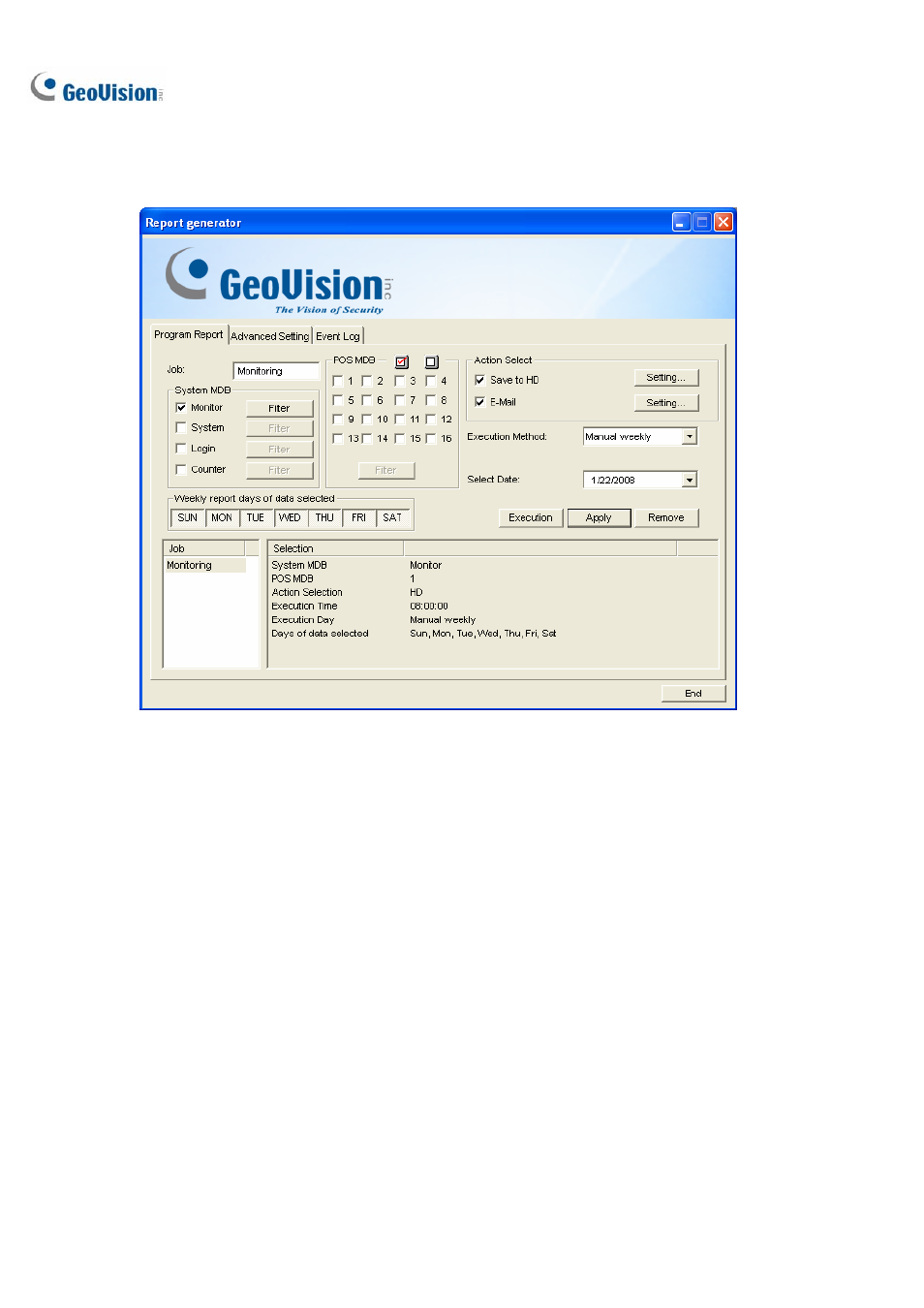

Figure 10-72
2. In the Job field, type a descriptive name for the report.
3. Select the types of events you want to include in the report. To set up specific criteria, click the
Filter button beside each option.
[System MDB]
„ Monitor: Includes the events of motion and I/O events.
„ System: Includes the events of functions enabled and disabled in GV-System.
„ Login: Includes the events of who has logged in and out of GV-System and WebCam
Server at what time.
„ Counter: Includes the events of and result of GV-System’s counter function.
[POS MDB] Select the cameras for searching POS event.
4. In the Action Select field, select how the report is accessed.
„ Save to HD: Select this option to save the report on the hard disk. Click the Setting button
to display this dialog box.
