Configuring Main System
1

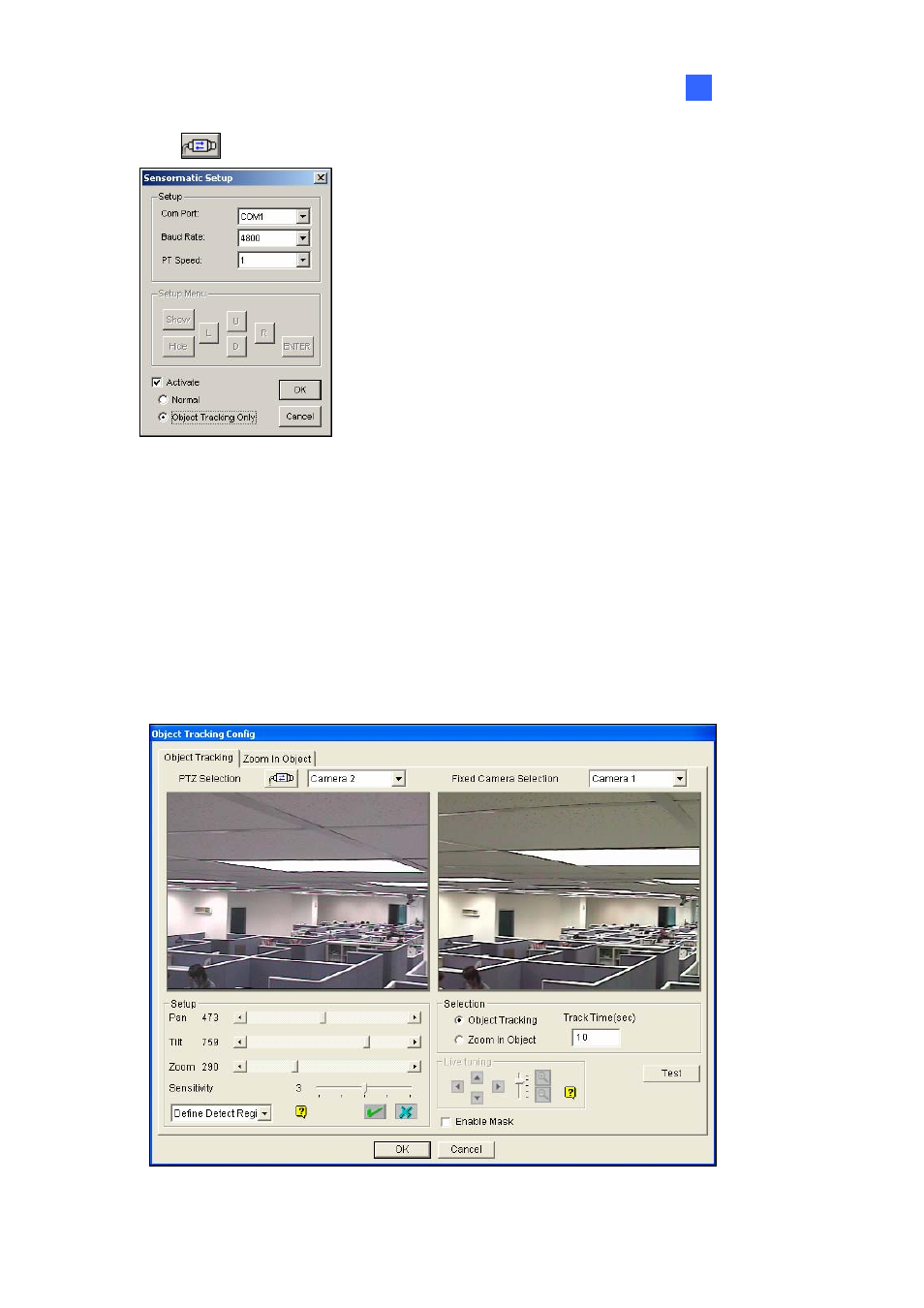

3. Click to display the Sensormatic Setup window.
Figure 1-69
4. Enter
Com Port, Baud Rate and PT Speed of the PTZ camera.
5. Check
the Activate item and select Object Tracking Only.
6. Click
OK to apply the settings.
Object Tracking Setup
After the above PTZ setup, go back to the menu bar. Click the Configure button (No. 14, Figure 1-2),
point to Video Analysis, select Object Tracking Application, and click Object Tracking Setup to
display the following window. The left screen is the PTZ camera view and the right screen is the
stationary camera view.
Figure 1-70
75
