Configuring Main System 1
Detecting Unattended and Missing Objects
The Object Monitor program can detect any unattended and/or missing object within the camera view
by highlighting its location.
Detecting Unattended Objects
To detect any unattended objects within the camera view, follow the steps below:
1. Click the Configure button (No. 14, Figure 1-2), point to Video Analysis, and then select Object
Index/Monitor Setup to display the Camera Applied Object Index/Monitor window.
2. Check the desired cameras for the application (The checked cameras will also be applied to the
settings of Object Index).
3. Click the Configure button to display the Video Object Setup window (see Figure 1-63.)
4. Click the Object Monitor tab in the upper part to display the following window.

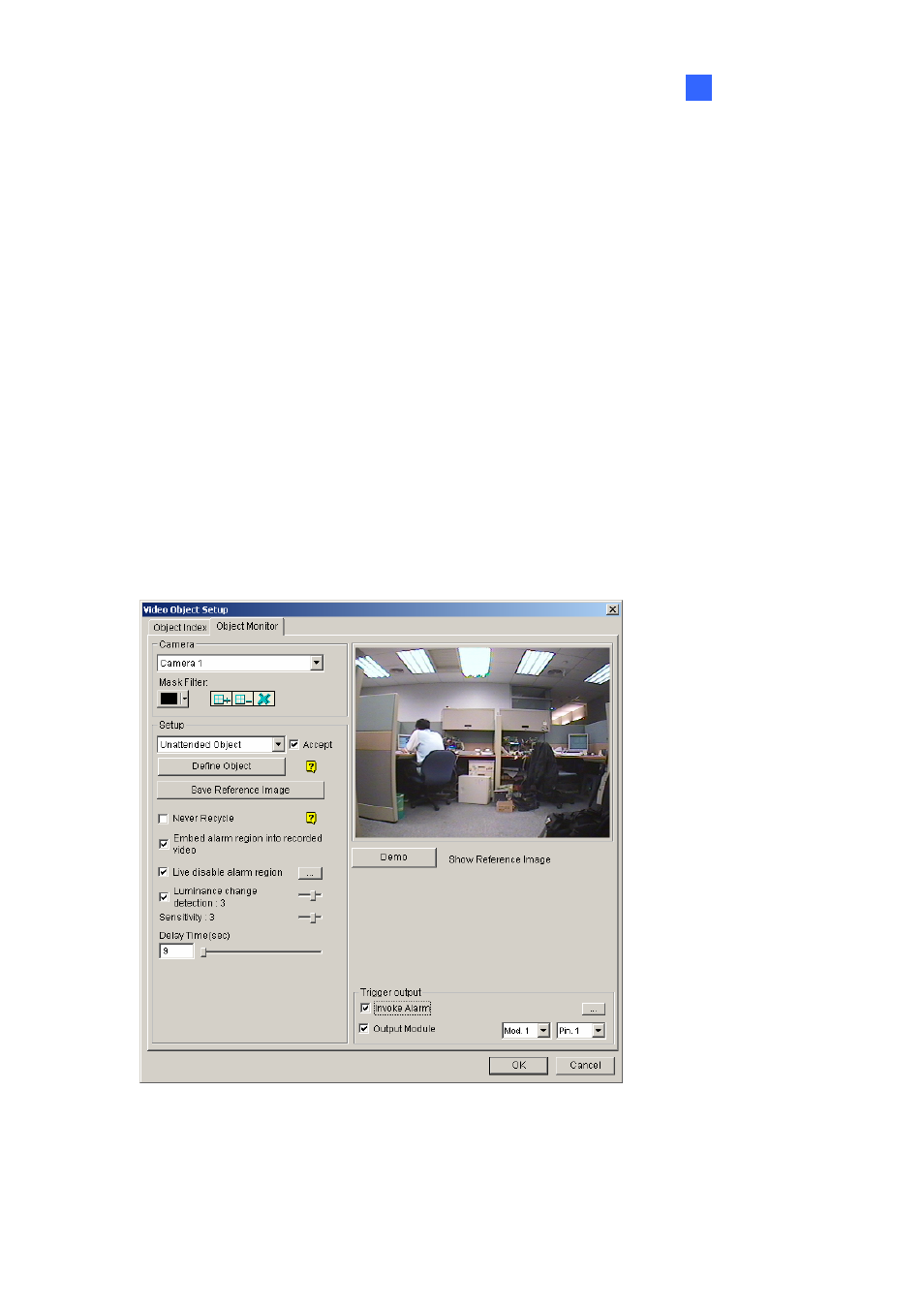

Figure 1-63 Object Monitor
5. In the Camera field, select a desired camera for setup.
6. Select Unattended Object from the drop-down list.
69
