100
Video Stabilization
Images from a shaky camera are jittery or blurry. This feature helps to reduce camera shake, leaving
you with clear and steady images.
Note:
z This function is only available when an appropriate USB dongle is used.
z This function takes high CPU and memory usage. Make sure at least 1 GB of DRAM is installed
on your system.
1. Click the Configure button (No. 14, Figure 1-2), point to Advanced Video Analysis, select
Stabilizer Setting, select up to 4 cameras to be configured, and then click the Configure button.
This dialog box appears.

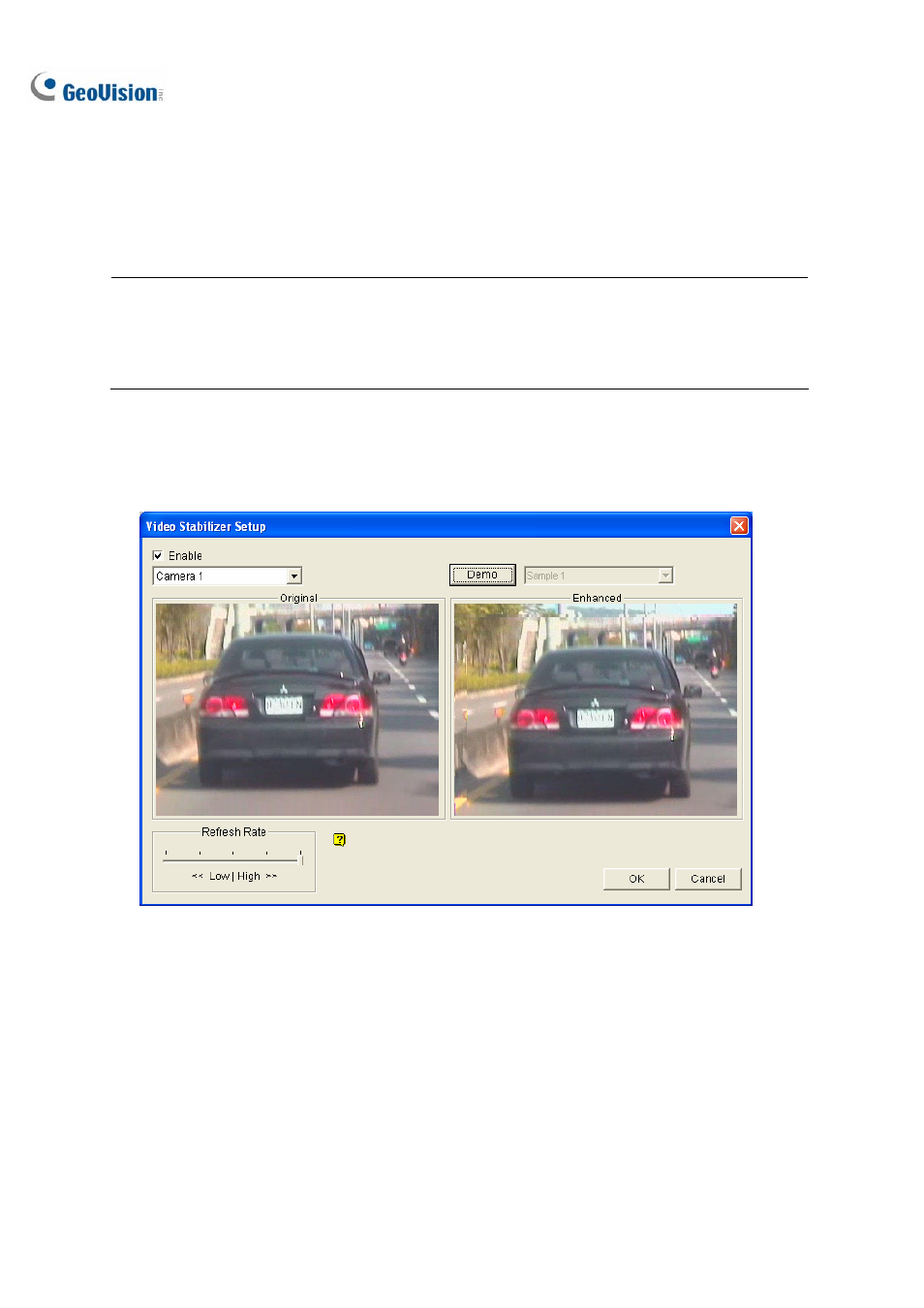

Figure 1-98
2. Use the drop-down list to select one camera, and check the Enable option.
3. When the image enhancement is enabled, the system load will increase. Adjust the Refresh rate
by moving the slide bar to optimize system performance.
4. If you want to view the demonstration of this function, click the Demo button.
