Configuring Main System 1
Configuring Object Counting
Object counting in GV-System provides bi-directional counting of objects under the surveillance area.
When defined, it could count any objects, such as people, vehicles, animals, etc.

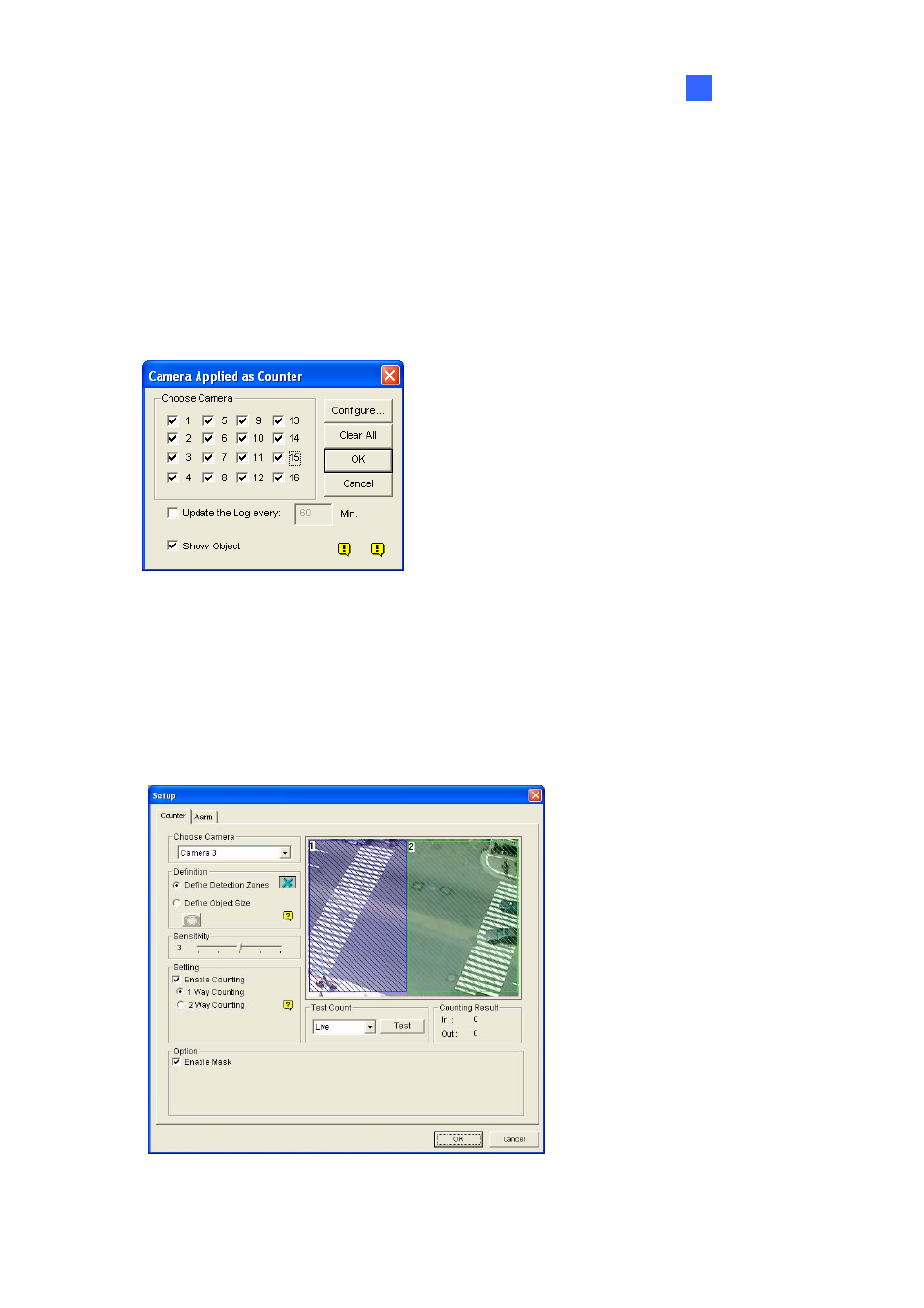

1. Click the Configure button (No.14, Figure 1-2), point to Video Analysis, and then select Counter
Application Setting. This dialog box appears.
Figure 1-29
2. Select the desired cameras for the counter application.
3. Select Show Object in the lower of the window to put a rectangle around the object being tracked.
4. Click the Configure tab to open the Setup dialog box.
[Counter]
To define the counter to count target objects, click the Counter tab.
Figure 1-30
33
