Configuring Main System 1

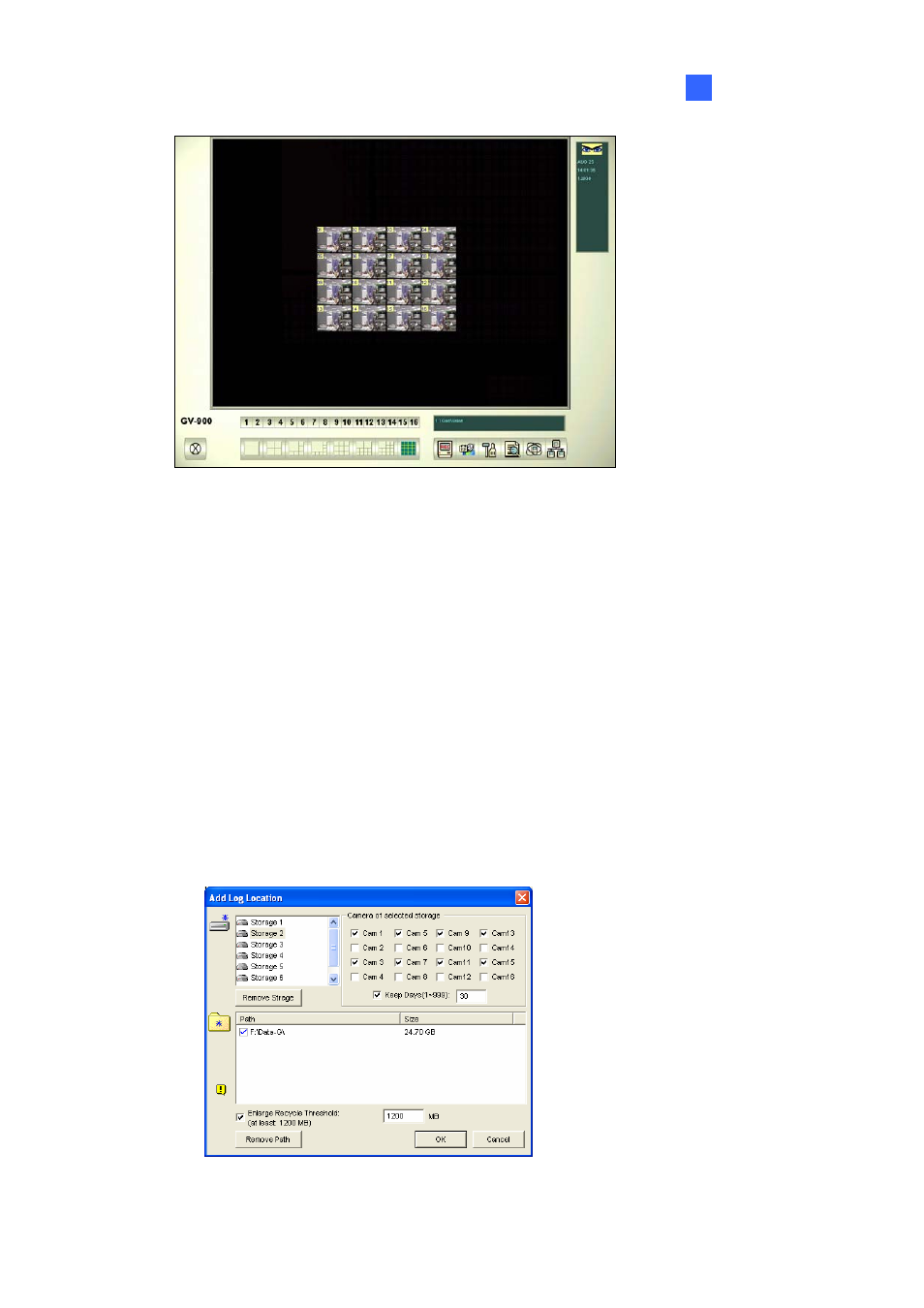

Figure 1-4 Mini View
[Location Name] The given name (maximum 14 characters) is displayed in main screen as the name
of the server.
[Video Log Storage] Select storage type (recycle or not recycle) and location.
„ Available: Shows remaining hard disk space.
„ Recycle Log: Indicates the recording date of the next video file to be erased.
„ Set Location:
~ Database Folder: You can specify a new location for the database. The database location
determines where the records of ViewLog Event List (Cam*.db and Aud*.db) are stored.
~ Storage Group Folder: You can create the maximum of 8 storage groups with different
storage locations, keep dates and recycle sizes to store video files.
To create a storage group:
1. Select Storage Group Folder. This dialog box appears.
Figure 1-5
11
