CCTV Camera Pros Geovision 8.2 Multicam Digital Surveillance System - Manual (Page 64)

50
System Log
System Log displays detailed information about the GV-System and remote operation. This
information is being saved in a database Access format. To view the System Log, click the ViewLog
button (No. 13, Figure 1-2), and then select System Log from the menu. This brings up the Live Log
Brower as shown below. The Log Browser viewer displays five types of event information. Use the
control tab to switch among them.
Clicking the icon on the upper left corner brings up the Advanced Log Browser. For details on the
Advanced Log Browser, see Searching and Playing Back Motion, Alarm, and POS Event in Chapter 4.
[Monitor] Displays information pertaining to motion and I/O events. Double-clicking the log list will
allow you to view related video in ViewLog or Quick Search (depending on the video player you
selected in the Activate System Log dialog box. See Figure 1-26).

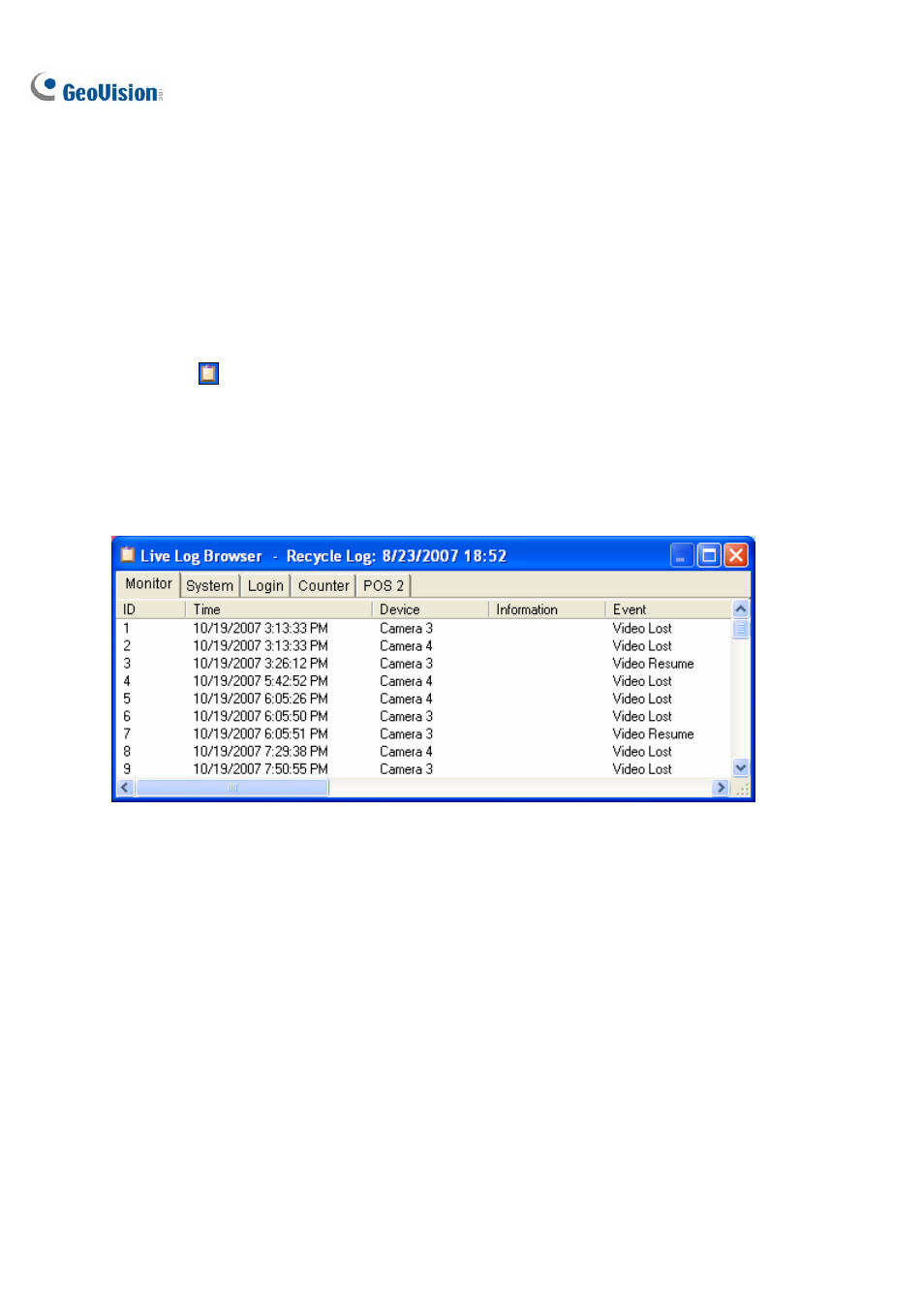

Figure 1-43
ID: This column shows the event ID number generated by the system.
Time: This column shows the time when a motion or I/O monitor event occurs.
Device: This column shows camera ID or I/O device associated with the event.
Information: This column shows the I/O module number
Event: These event messages mean:
„ Motion: Appear if motion occurs in the associated camera.
„ Video Lost: Appears if video lost occurs in the associated camera.
„ Video Resume: Appears if video resume in the associated camera.
„ Signal On: Appears if one of the input device connected to the associated I/O module are
activated.
„ Signal Off: Appears if one of the input device connected to the associated I/O module are
terminated.
