I /O Applications 2
I/O Enable Setting
You can manually arm or disarm any I/O devices without interrupting the monitoring. For example,
when an output alarm is triggered at the front door, you can turn off the output while the system keeps
on recording and I/O monitoring.
Arming / Disarming I/O devices:

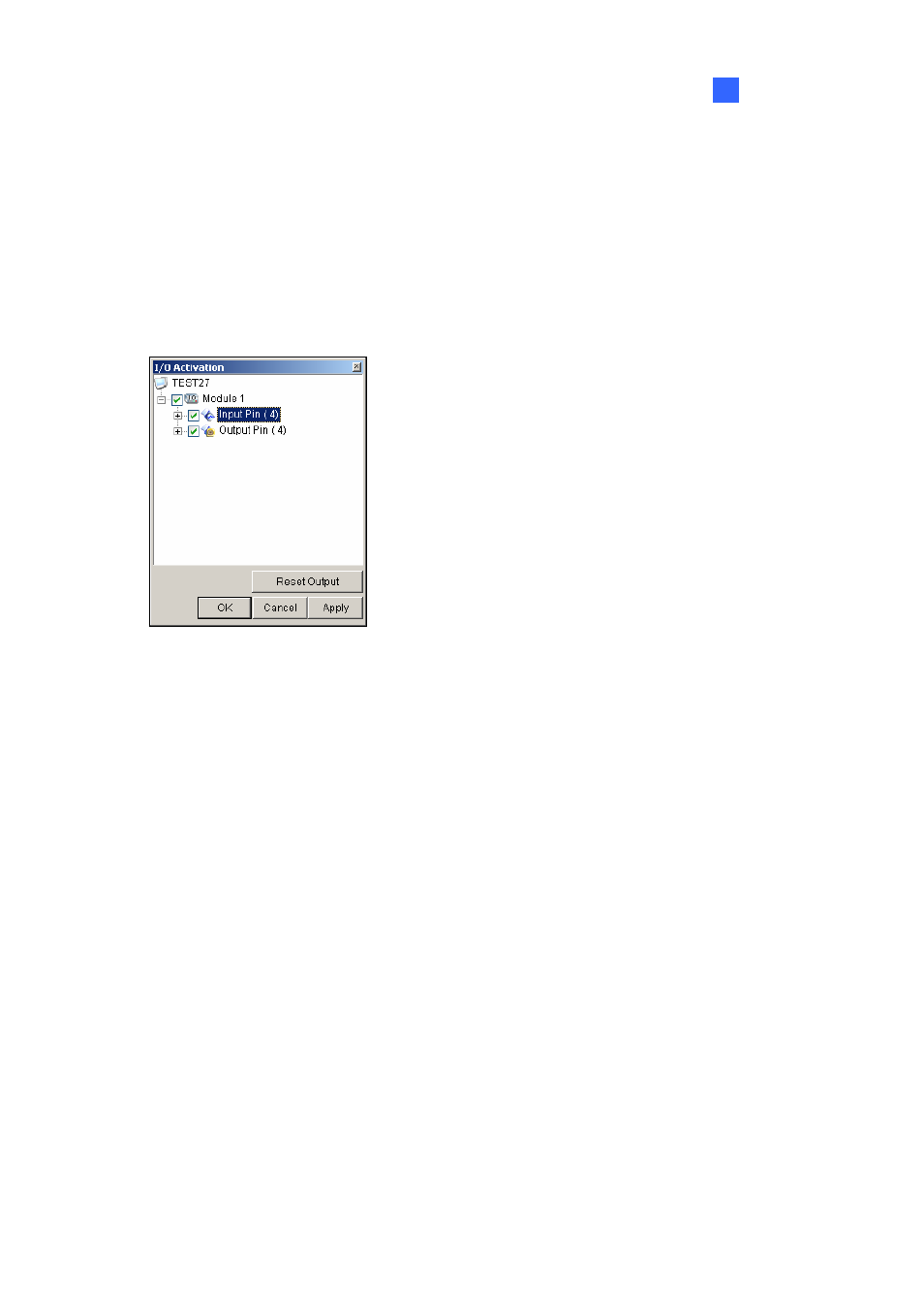

1. On the main screen, click the I/O button, and select I/O Enable Setting. This dialog box appears.
Figure 2-12
2. Check the Input/Output to arm or uncheck the Input/Output to disarm the device(s). Then click
Apply to verify the changes.
141
