I /O Applications 2
Editing an I/O Device
In addition to editing groups, you can also edit the settings of individual I/O device. Right-click an I/O
device, and select Setting. This dialog box appears.

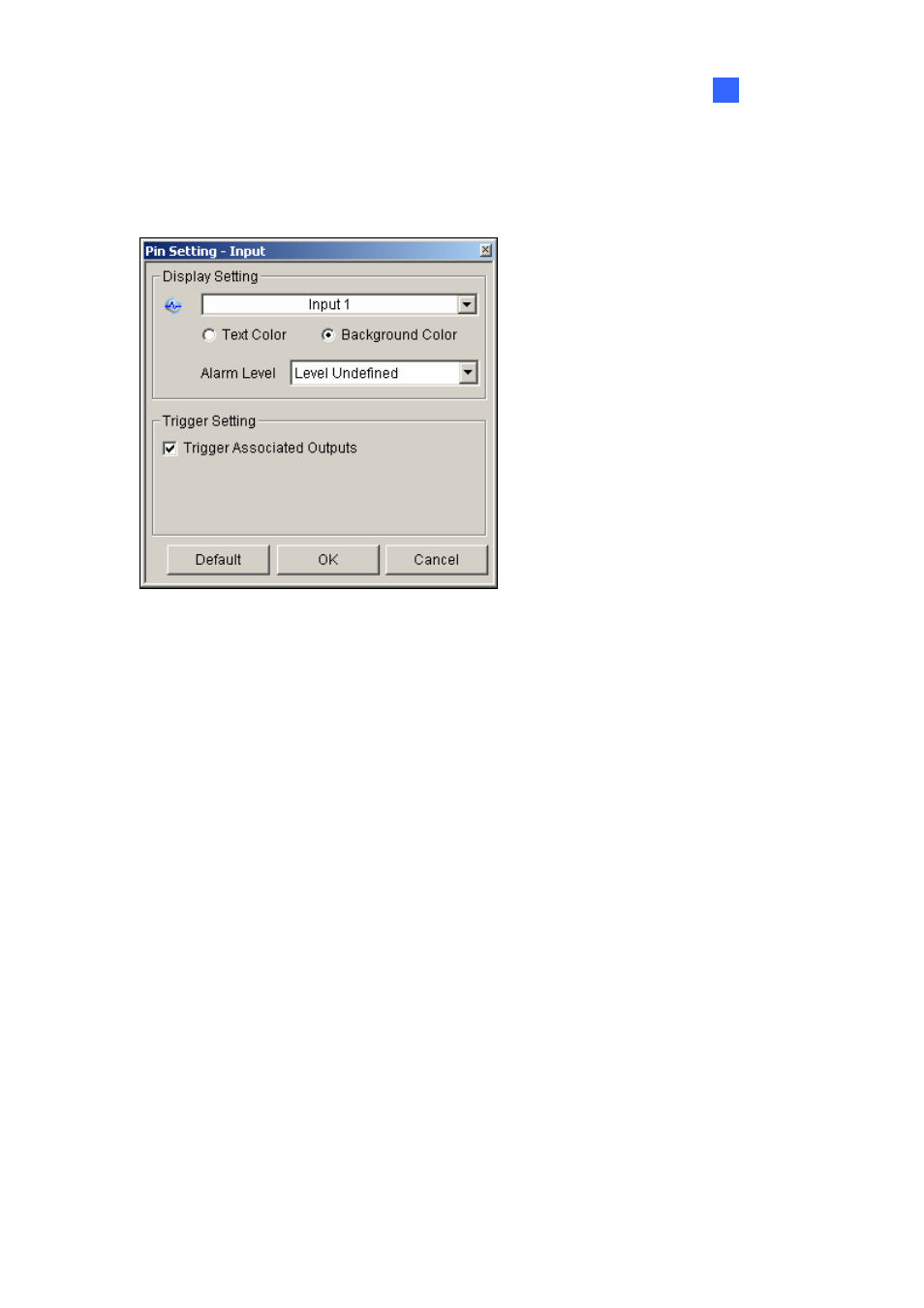

Figure 2-17
[Display Setting] You can define the nature of I/O devices by colors. Note that the setting only affects
the Detail style of the Advanced I/O List (No. 4, Figure 2-13).
„ Alarm Level: Click the Alarm Level drop-down list, and select one of the six default colors: Fire,
Smog, Vibration, Intruder, Motion and Emergency. For the Level Undefined option, select Text
Color or Background Color, and then click the Input/Output drop-down list to change its color.
[Trigger Setting]
„ Trigger Associated Outputs: Triggers outputs in cascade mode (see Creating a Group for
Cascade Triggers above).
145
