Configuring Main System 1
Quad Spot Monitors Controller
The Controller integrates the GV-Multi Quad Card with TV monitor (spot monitor) applications. It
features:
z Up to 5 TV monitors can be controlled.
z TV Monitor 1 supports up to 16 screen divisions, and TV Monitor 2 to TV Monitor 5 support 1 and
4 divisions.
z Different screen divisions can be set up on each monitor.
z The channel sequence of screen divisions is user-defined.
Note: The Controller does not support the videos from GV-Video Server.
Setting Up the Controller
Click the Configure button (No. 14, Figure 1-2), point to Accessories, and select Quad Spot
Monitors Setup. The TV Quad Setting dialog box appears.
z In the General Setting tab, you can modify Video Format and Video Attribute for all TV monitors.
z In the TV tabs (TV1 to TV5), you can set up the following configurations for each TV monitor.

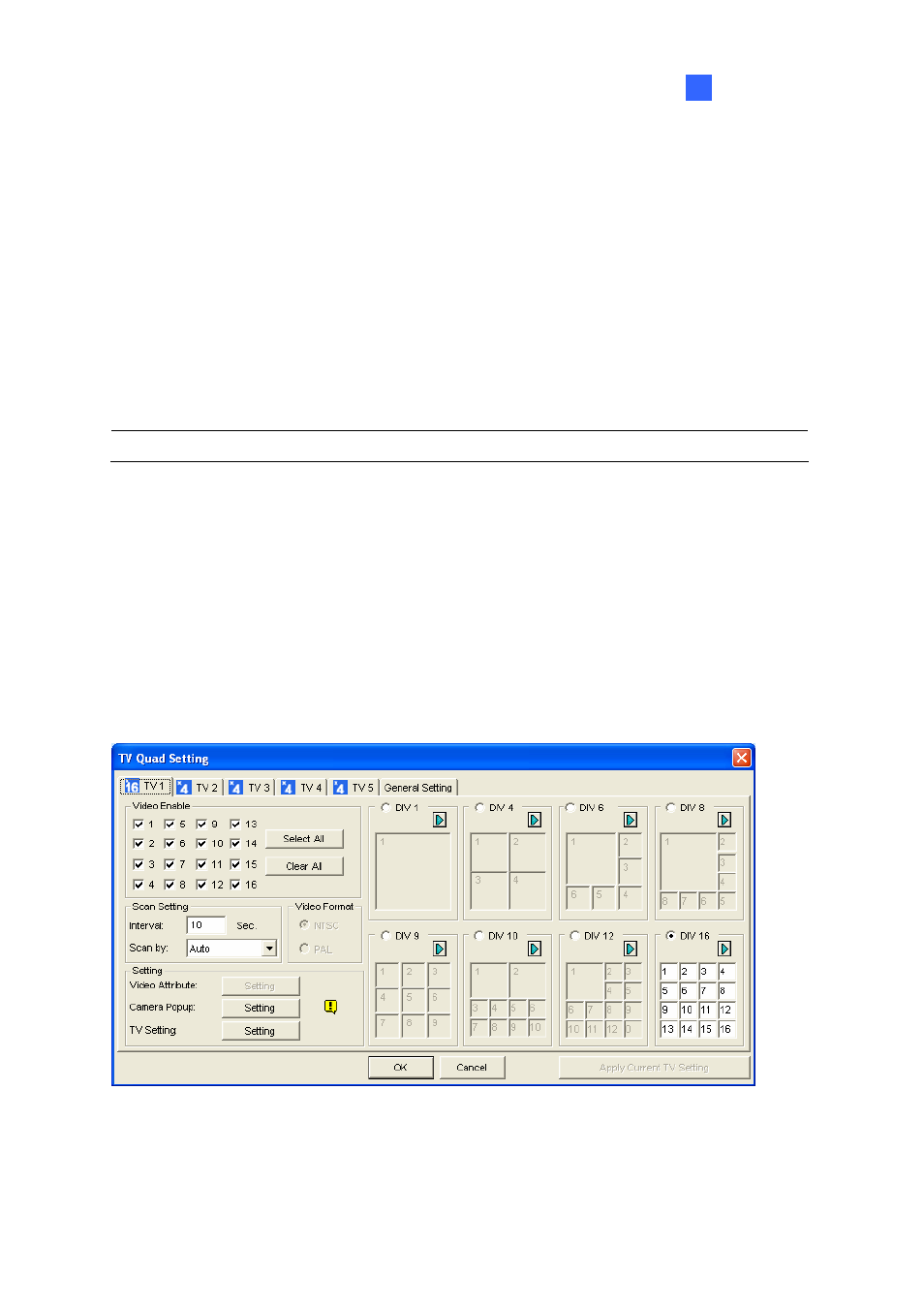

Figure 1-107
