Finance can access storage systems B and C but not storage system A. Likewise, users in Production
can access storage systems A and C, but not storage system B.
Figure 106
Resources in Two Zones

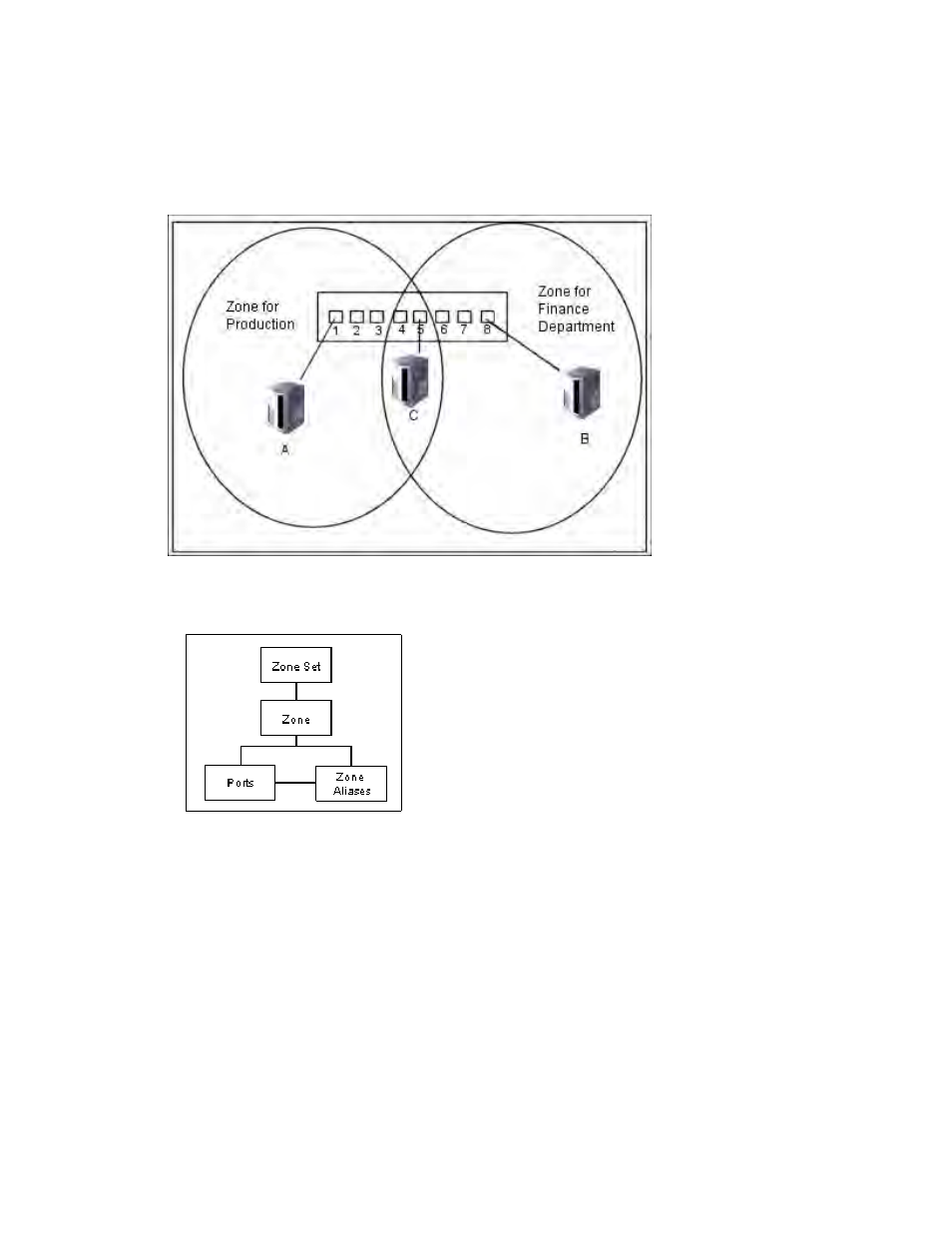

The following figure provides an overview of zoning structure:
Figure 107
Overview of Zoning Structure
Zoning Structure
•
Zone Sets - A zone set is a collection of zones. You can have only one zone set active at a time
in a fabric; however, you can have a zone in more than one zone set. Zones sets are usually
created for a particular task.
•
Zone - A collection of zone aliases and ports.
•
Ports - The WWN of the port to which an element is connected. The WWN of the port can be
either the WWN of a switch port or the WWN of the connected element.
