HP Storage Essentials SRM 6.0 User Guide 263
displayed under the node, and the storage system is highlighted in the right pane, as shown in the
following figure.

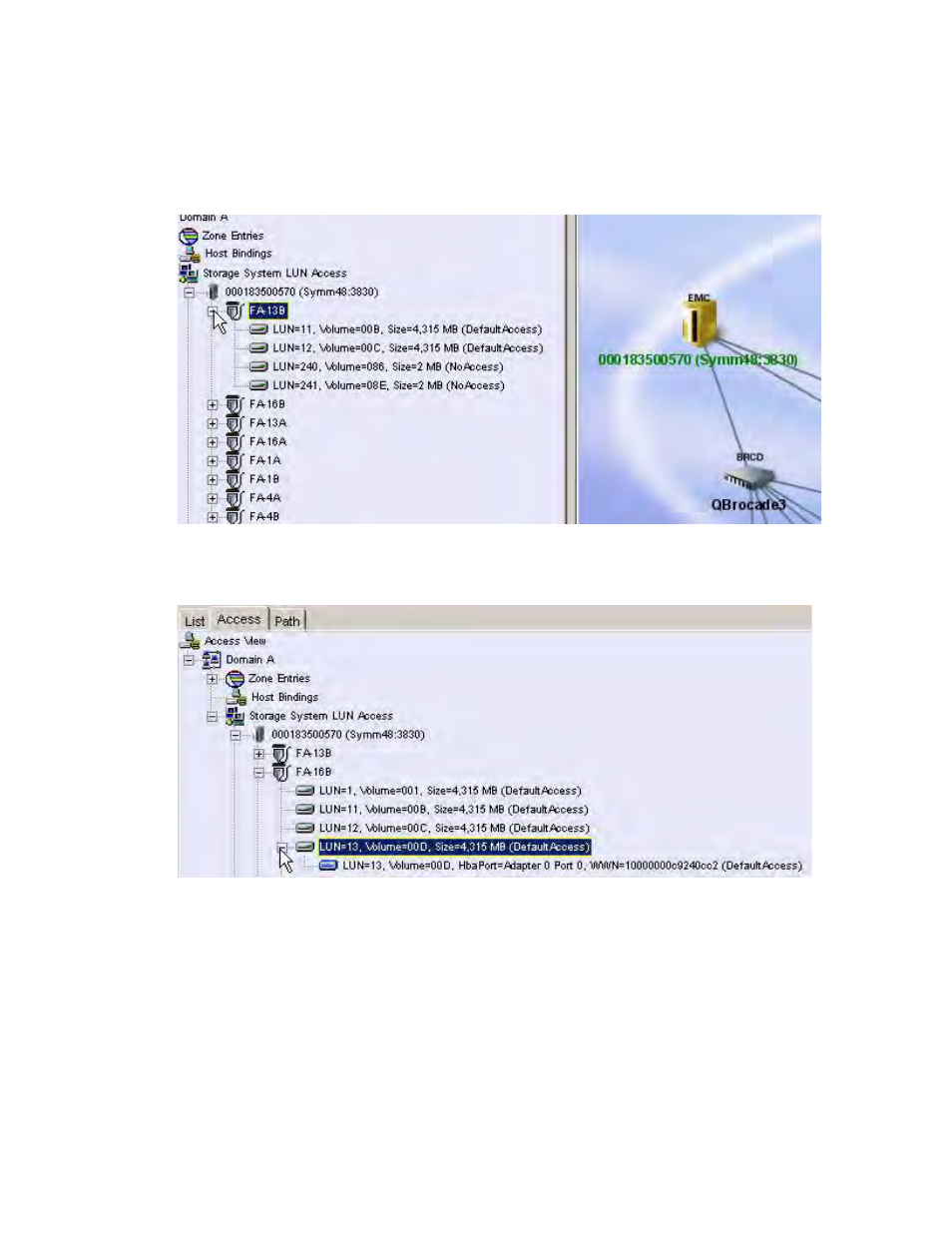

Figure 43 WWN Properties
The software displays properties of the WWN. If the LUN has a LUN masking, expand the LUN
node to obtain information about the LUN masking, as shown in the following figure.
Figure 44 WWN Properties
To view a LUN masking, expand a LUN node.
About the Path Tab
The Path tab provides information about an element's path. By clicking a host's node, you can
determine the host's path in the application.
