Functional description 987
Figure 284

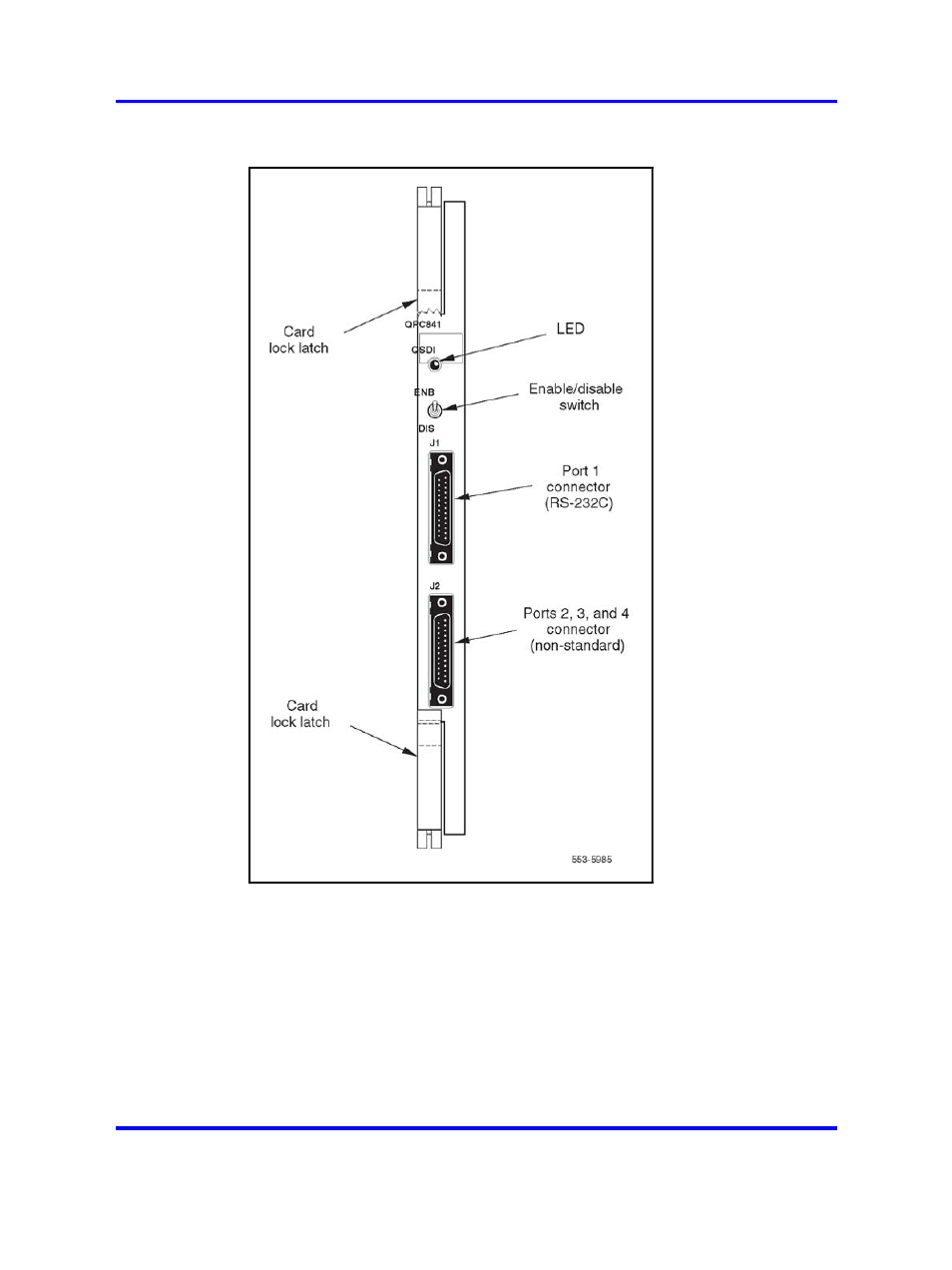

QPC841 QSDI card front panel
Functional description
The QPC841 Quad Serial Data Interface card contains all the logic for four
asynchronous serial ports, including the baud rate generators. These serial
ports are directly accessed by the system processor using memory reads
and writes.
The QPC841 Quad Serial Data Interface card contains four universal
asynchronous receiver/transmitters (UARTs) and the logic necessary
to connect the UARTs to the system processor bus. See
Figure 285
