628

NT8D14 Universal Trunk card

Figure 204 "Connecting paging equipment to the NT8D14 Universal
Trunk card (typical)" (page 628)

shows a typical connection from

customer-provided equipment to unit 0 on a universal trunk card that
can be installed in slots 1, 2, and 3 in a Media Gateway and slots 7, 8,
9, and 10 in a Media Gateway Expansion. See Communication Server
1000M and Meridian 1 Large System Installation and Configuration
(NN43021-310) for trunk wiring information.

Figure 204
Connecting paging equipment to the NT8D14 Universal Trunk card (typical)

A universal trunk card unit can be configured as a paging trunk. Configure
units as paging trunks in the Trunk Administration program LD 14 and
assign routes in the Route Administration program LD 16.

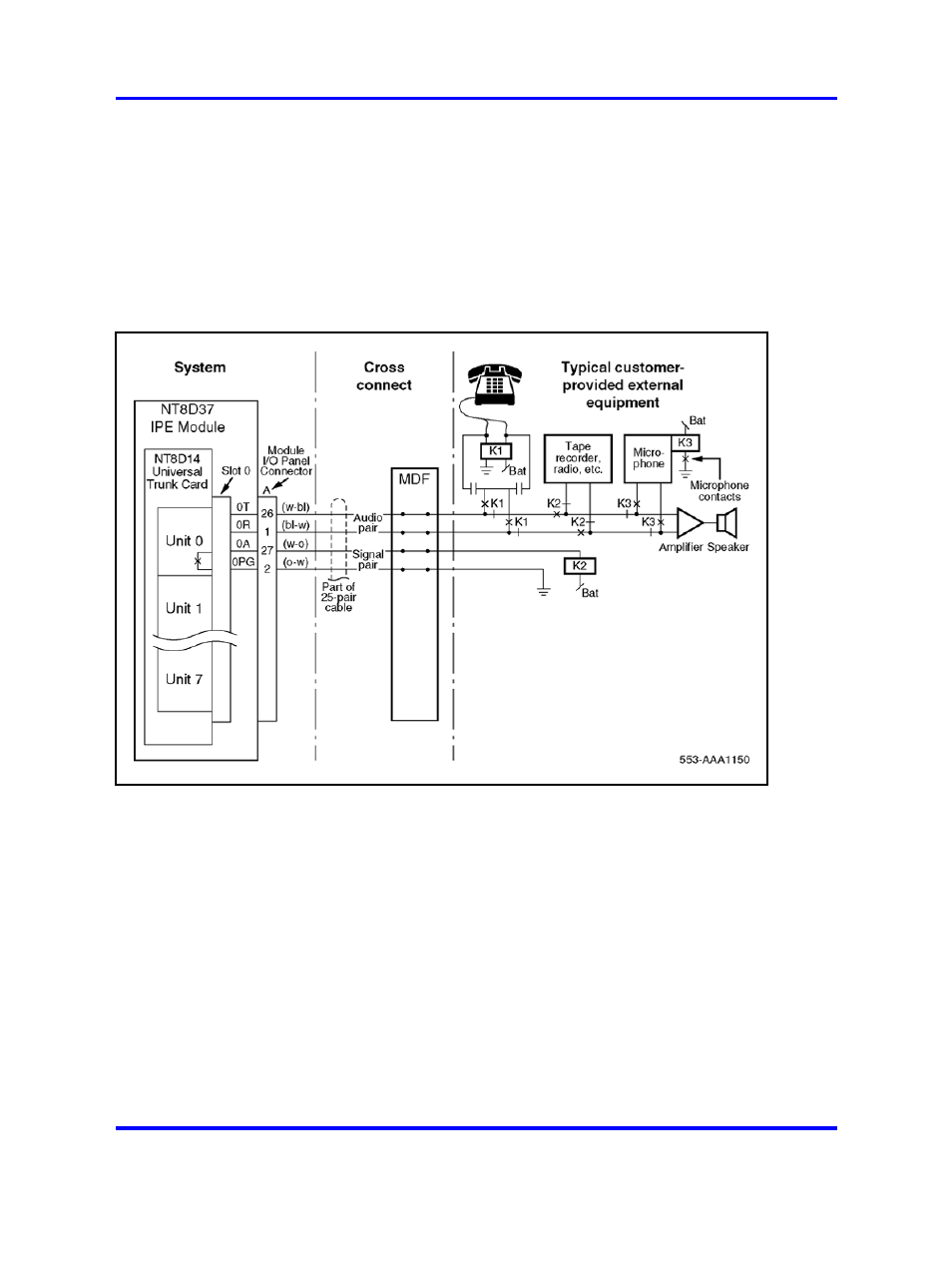

Figure 206 "Connecting paging equipment to the NT8D14 Universal
Trunk Card (typical)" (page 631)

shows a typical connection from

customer-provided equipment to unit 0 on a universal trunk card that is
installed in slot 0 in an NT8D37 IPE Module.

See Communication Server 1000M and Meridian 1 Large System
Installation and Configuration (NN43021-310) for more detailed trunk
wiring information.
