332 NT5D97 Dual-port DTI2 PRI2 card
MSDL/DCH cables
External DCH cable
The NTCK46 cable connects the DDP2 card to the NT6D11AF/NT5K75
AA/NT5K35AA D-Channel Handler card. The cable is available in four
different sizes:
• NTCK46AA (6 ft.) - DDP2 to DCH cable
•
NTCK46AB (18 ft.) - DDP2 to DCH cable
• NTCK46AC (35 ft.) - DDP2 to DCH cable
• NTCK46AD (50 ft.) - DDP2 to DCH cable

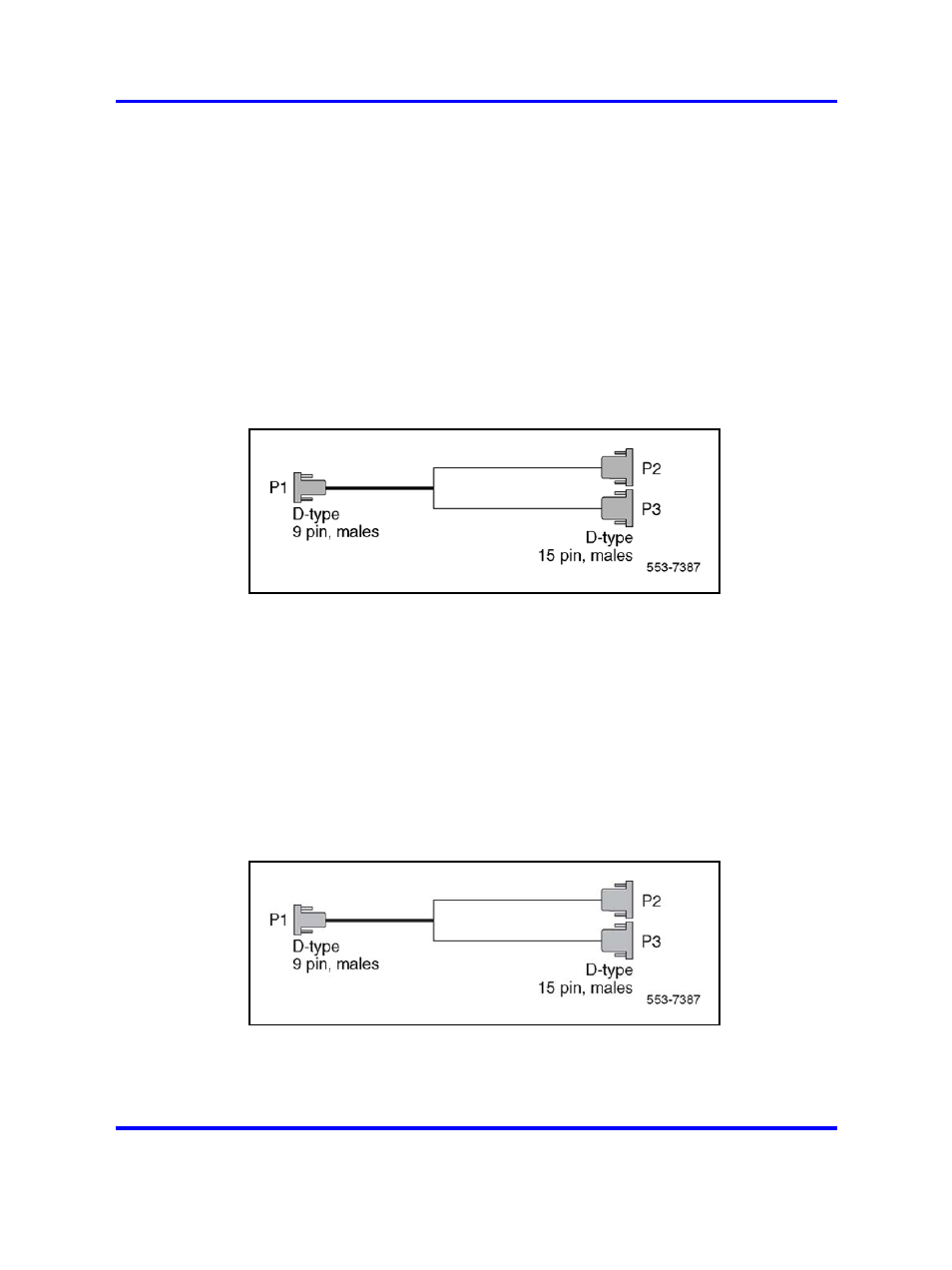

Figure 89
NTCK46AA/AB/AC/AD
External MSDL cable
The NTCK80 cable connects the DDP2 card to the NT6D80 MSDL card.
The cable is available in four different sizes:
• NTCK80AA (6 ft) - DDP2 to MSDL cable
• NTCK80AB (18 ft) - DDP2 to MSDL cable
•
NTCK80AC (35 ft) - DDP2 to MSDL cable
•
NTCK80AD (50 ft) - DDP2 to MSDL cable
Figure 90
NTCK80AA/AB/AC/AD
