Functional description 389

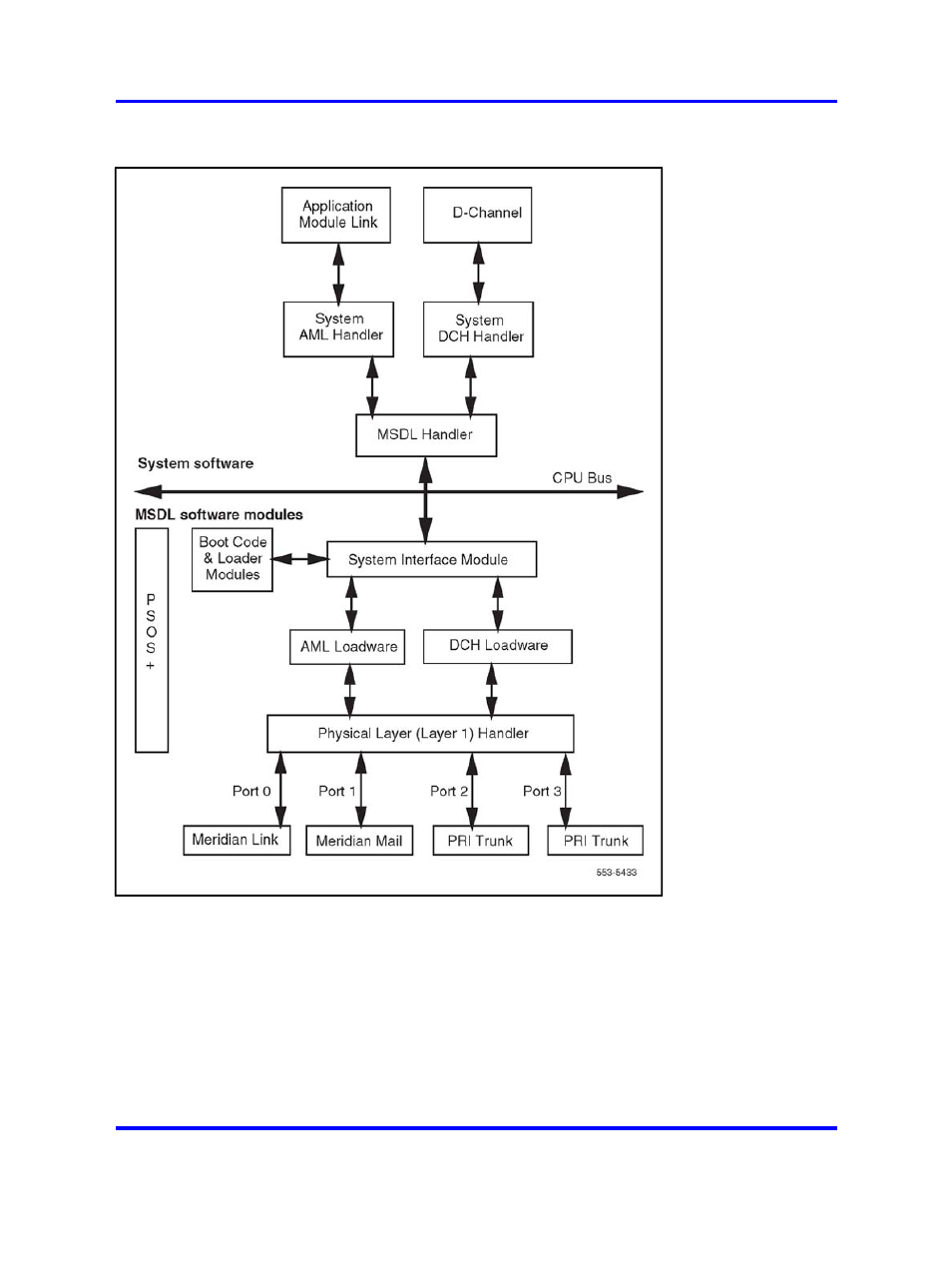

Figure 102
MSDL functional block diagram
Data flow
The MSDL transmit interface, managed by the MSDL handler, sends data
from the system to the MSDL. This interface receives packetized data from
the system and stores it in the transmit buffer on the MSDL. The transmit
buffer transports these messages to the appropriate buffers, from which
the messages travel over the MSDL port to the I/O equipment.
