506 NT8D14 Universal Trunk card

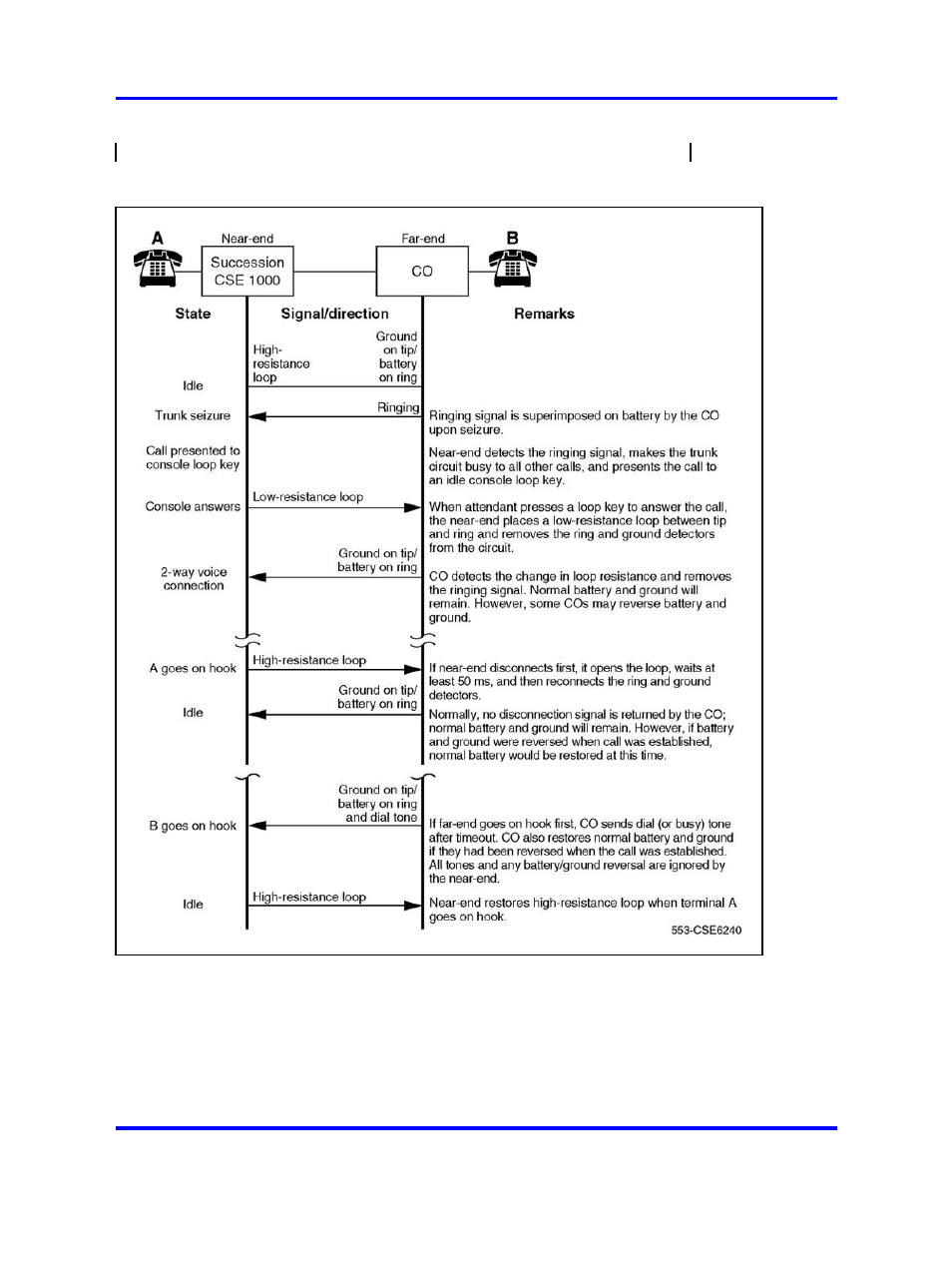

Figure 134
Loop start call connection sequence - incoming call
Outgoing calls
For outgoing calls, the software sends an outgoing seizure message
to place a low-resistance loop across the tip and ring leads toward
the CO. See
Figure 135 "Ground start call states - incoming call from
CO/FX/WATS" (page 507) and Figure 136 "Ground start call connection
sequence - incoming call from CO/FX/WATS" (page 508) . When the CO
