330 NT5D97 Dual-port DTI2 PRI2 card
Table 127
NTCK78AA cable pins (cont’d.)
Cable Name Description Color
DDP2
pins
NCTE pins
0 R-PRI0TX Trunk 0 Transmit
Ring Red P1-2 P2-9
0 T-PRI0RX Trunk 0 Receive Tip Black P1-3 P2-3
0 R-PRI0RX Trunk 0 Receive Ring White P1-4 P2-11
0 GND Shield Wire Bare P1 Case P2-2
0 GND Shield Wire Bare P1 Case P2-4
1 T-PRI1TX Trunk 1 Transmit Tip Black P1-5 P3-1
1 R-PRI1TX Trunk 1 Transmit
Ring Red P1-6 P3-9
1 T-PRI1RX Trunk 1 Receive Tip Black P1-7 P3-3
1 R-PRI1RX Trunk 1 Receive Ring White P1-8 P3-11
1 GND Shield Wire Bare P1 Case P3-2
1 GND Shield Wire Bare P1 Case P3-4
NTCK79AA (A0618296) The NTCK79AA (40 ft) is a 75W coaxial cable
for connecting the TRK port on the DDP2 faceplate (P1, D-type 9 pin male)
to the Line Terminating Unit (LTU) (P2, P3, P4, P5 BNC males).

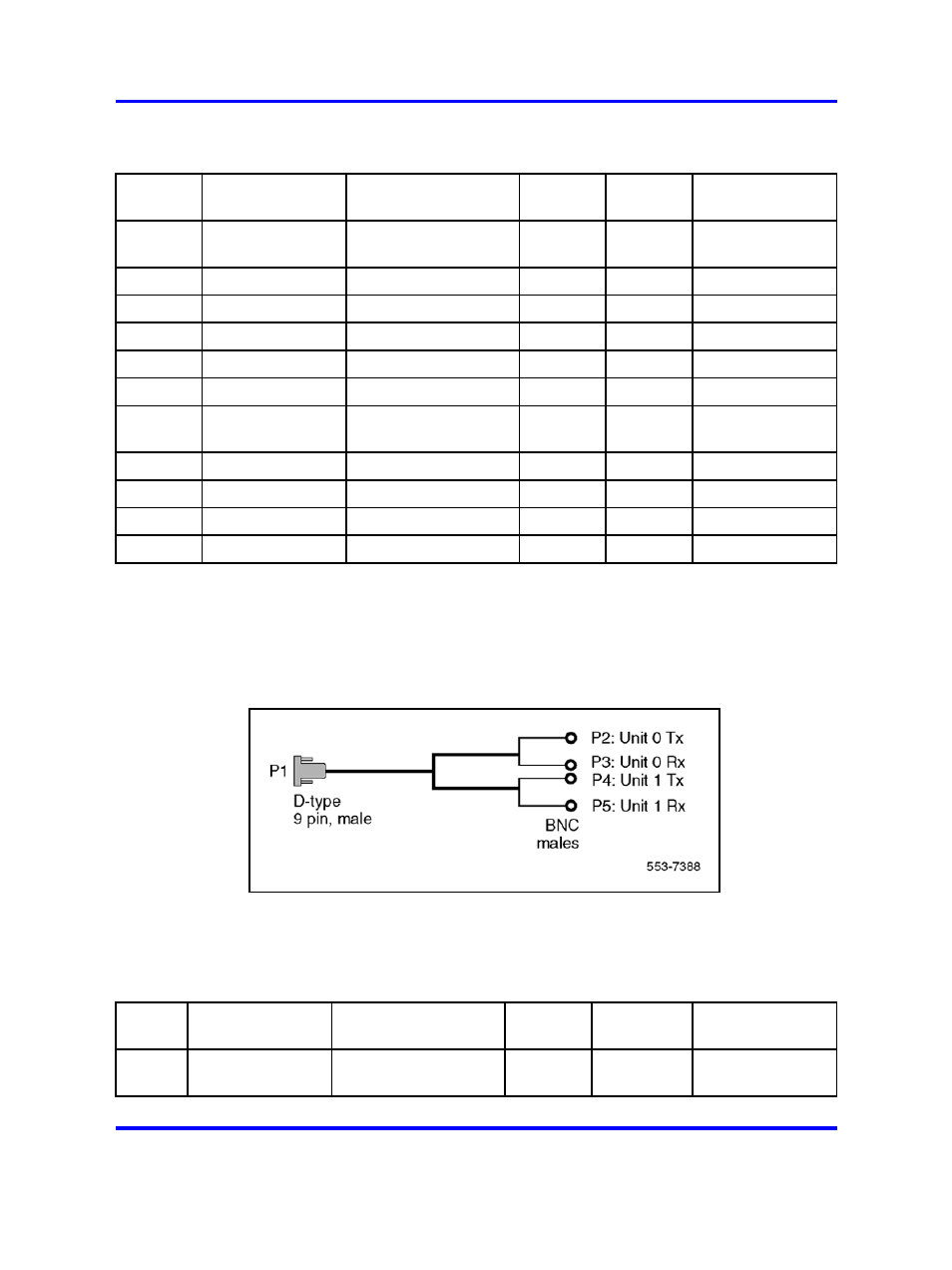

Figure 87
NTCK79AA
Table 128 "NTCK79AA cable pins" (page 330) lists the pin attributes for
the NTCK79AA cable.
Table 128
NTCK79AA cable pins
Cable Name Description Color
DDP2
pins
NCTE pins
0 T-PRI0TX Trunk 0 Transmit Tip Red P1-1 P2 inner
conductor
