644 NT8D15 E and M Trunk card
Figure 210

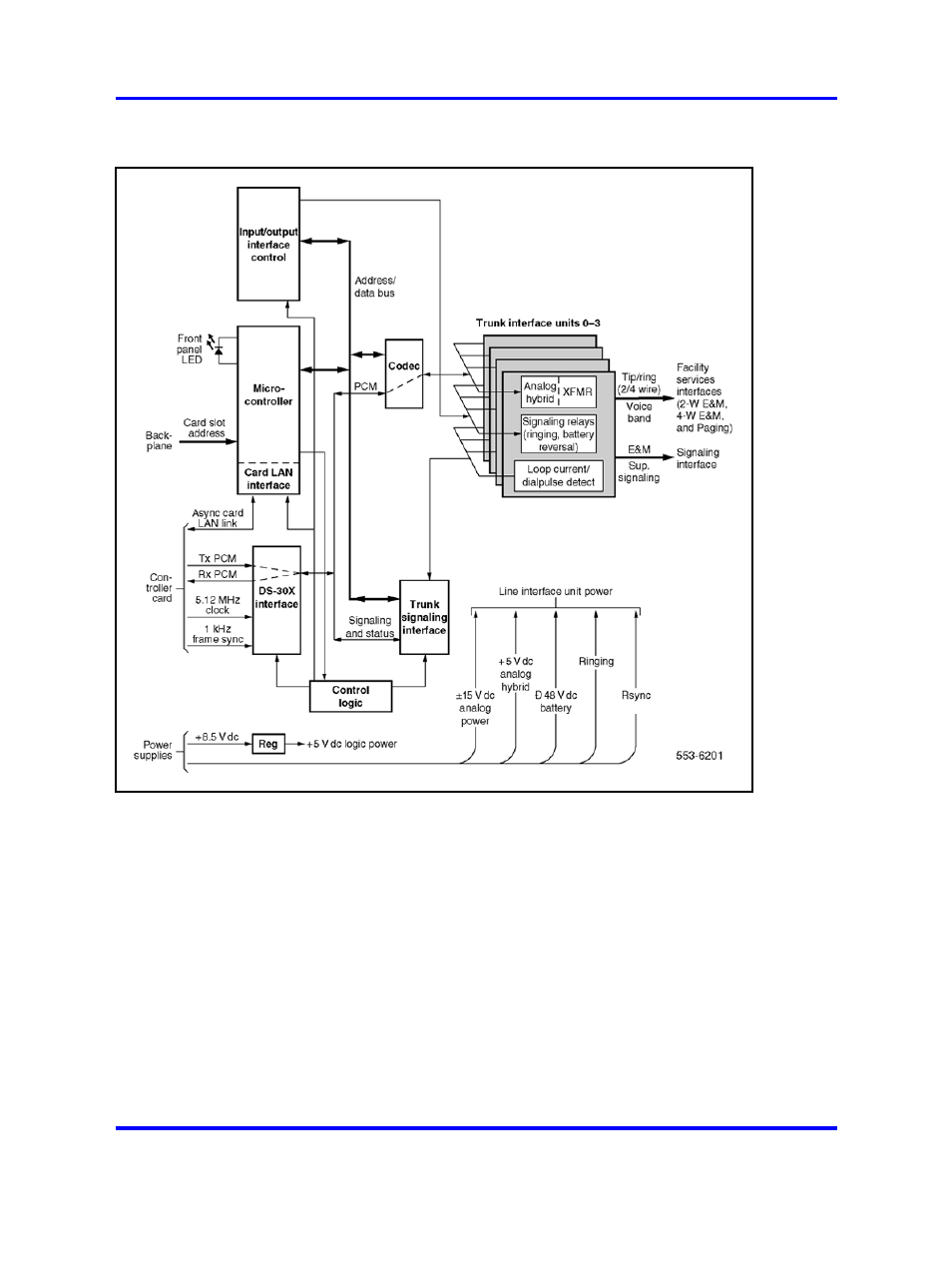

E and M Trunk card - block diagram
• Software controlled terminating impedance (600, 900, or 1200 ohm)
two and four-wire modes.
• Allows trunk type to be configured on a per port basis in software.
• Software controlled 600 ohm balance impedance is provided.
