Page 477
Configuration
477

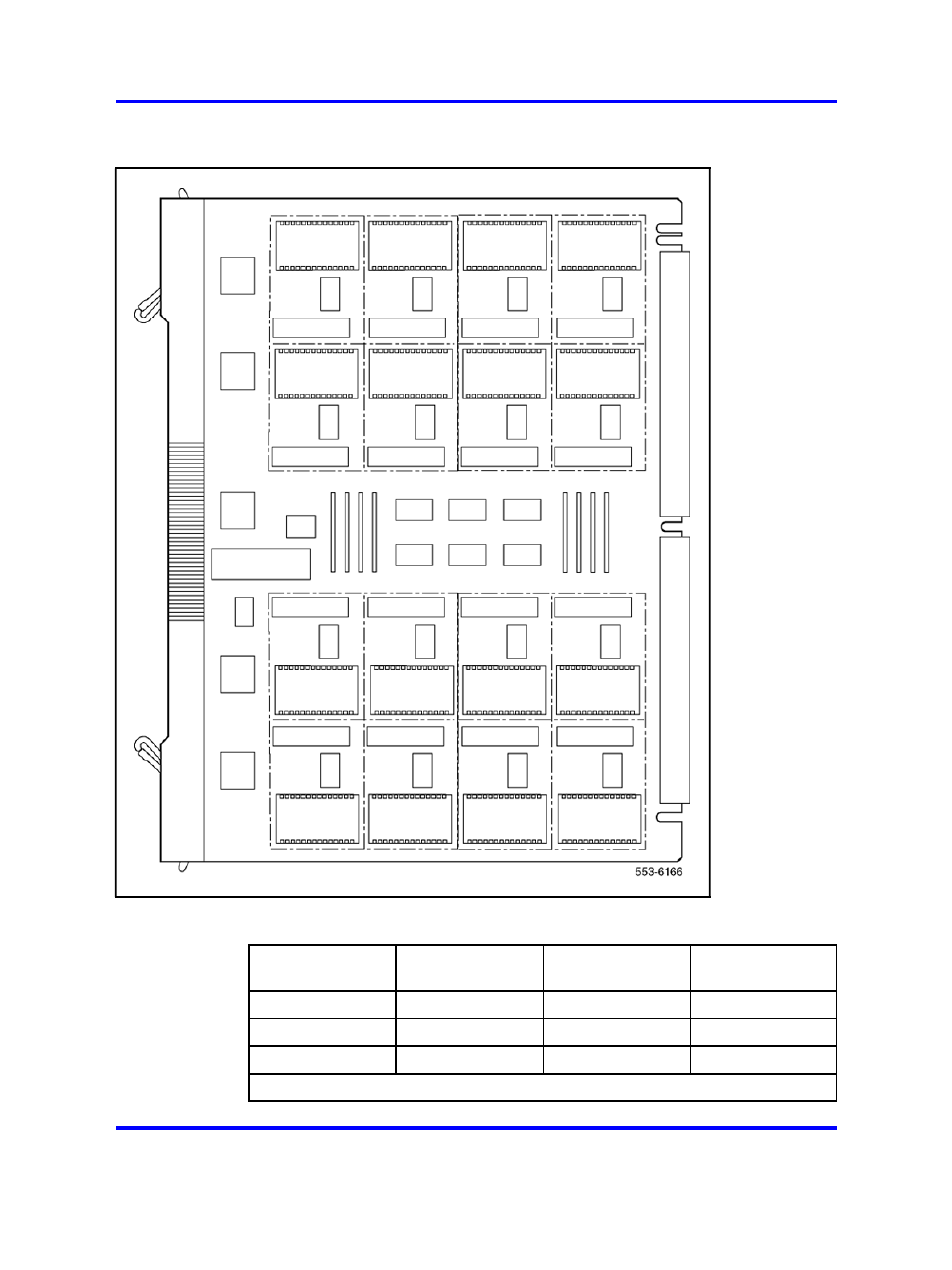

Figure 122
Analog message waiting line card - jumper block and switch locations
Table 201
Analog message waiting line card - backplane pinouts
Backplane
pinout*
Lead
designations
Backplane
pinout*
Lead
designations
12A
Line 0, Ring
12B
Line 0, Tip
13A
Line 1, Ring
13B
Line 1, Tip
14A
Line 2, Ring
14B
Line 2, Tip
* These pinouts apply to both NT8D37 and NT8D11 backplanes.
Nortel Communication Server 1000
Circuit Card Reference
NN43001-311
02.06
Standard
27 August 2008
Copyright © 2003-2008 Nortel Networks
.
