100BaseT IP daughterboards

921

An optional second NTDK83 daughterboard can be mounted on the
NTDK20 SSC card in the Call Server. Adding the second NTDK83
daughterboard provides support for up to four Media Gateways. See

Figure 262 "NTDK83AA dual-port 100BaseT IP daughterboard" (page
921)

The NTDK99AA (single-port) daughterboard is mounted on the NTDK20
SSC card in the Media Gateway to provide connectivity to the Call Server.
See

Figure 263 "NTDK99A single-port 100BaseT IP daughterboard" (page

922)

Note:

Third party media conversion devices can be used to extend the

range of Media Gateways from the Call Server. The IMC Networks
Ethernet Compatible Media Converter with a McLIM Tx/Fx-SM/Plus
module was tested by Nortel. It provided acceptable transmission
between the Call Server and the Media Gateway located up to 40 kms
apart.

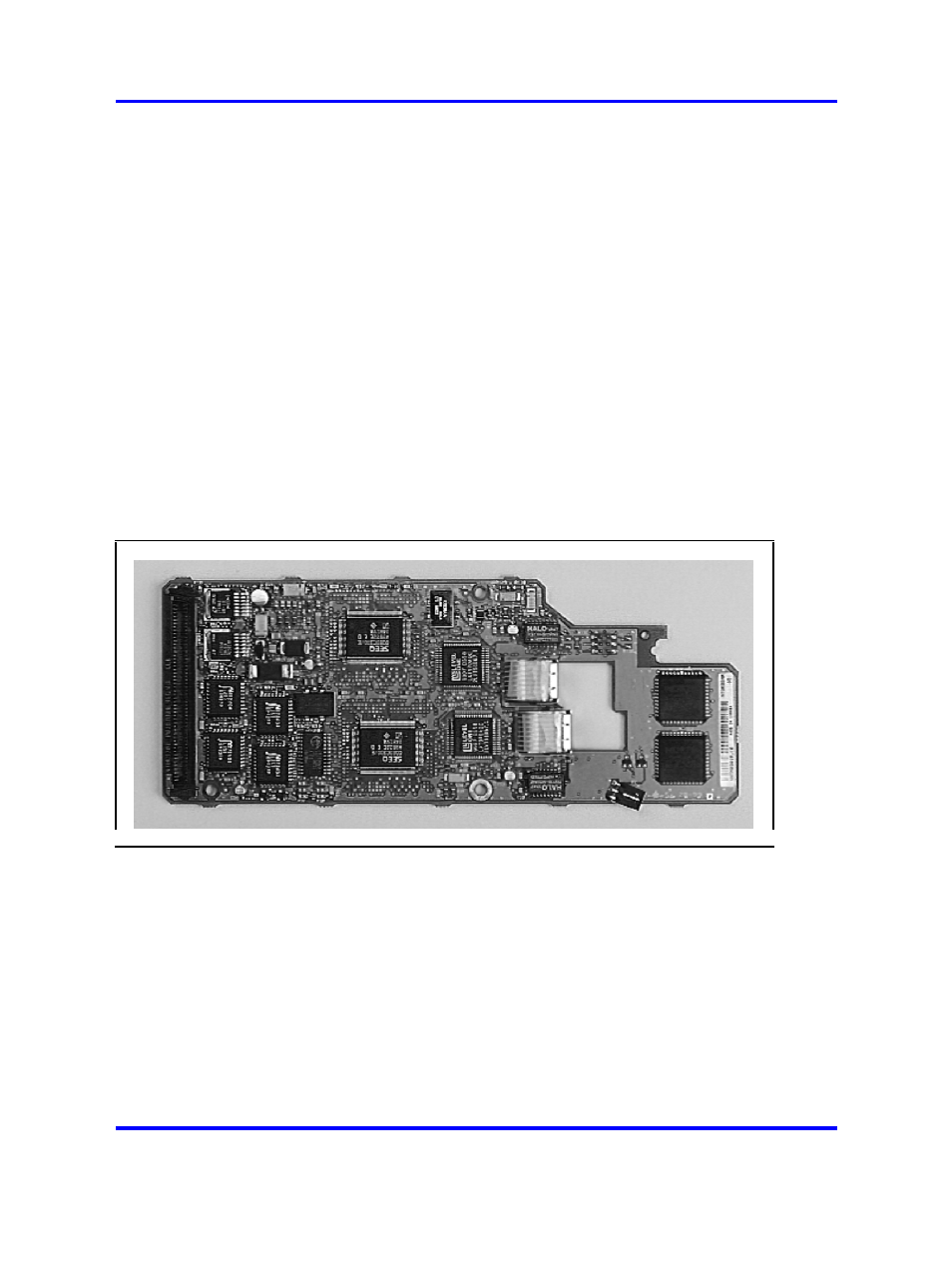

Figure 262
NTDK83AA dual-port 100BaseT IP daughterboard
