Physical description 327
•
DDP2 to DCH cables
— NTCK46AA
— NTCK46AB
— NTCK46AC
— NTCK46AD
•
DDP2 to MSDL cables
— NTCK80AA
— NTCK80AB
— NTCK80AC
— NTCK80AD
A description of each type of DDP2 cable follows.
E1 carrier cables
NTCK45AA (A0407956) The NTCK45AA (8 ft.) is an 120W cable for
systems equipped with an I/O filter panel, connecting the TRK port (P1,
D-type 9 pin male) on the DDP2 faceplate to the I/O filter (P2, P3 D-type 9
pin males).

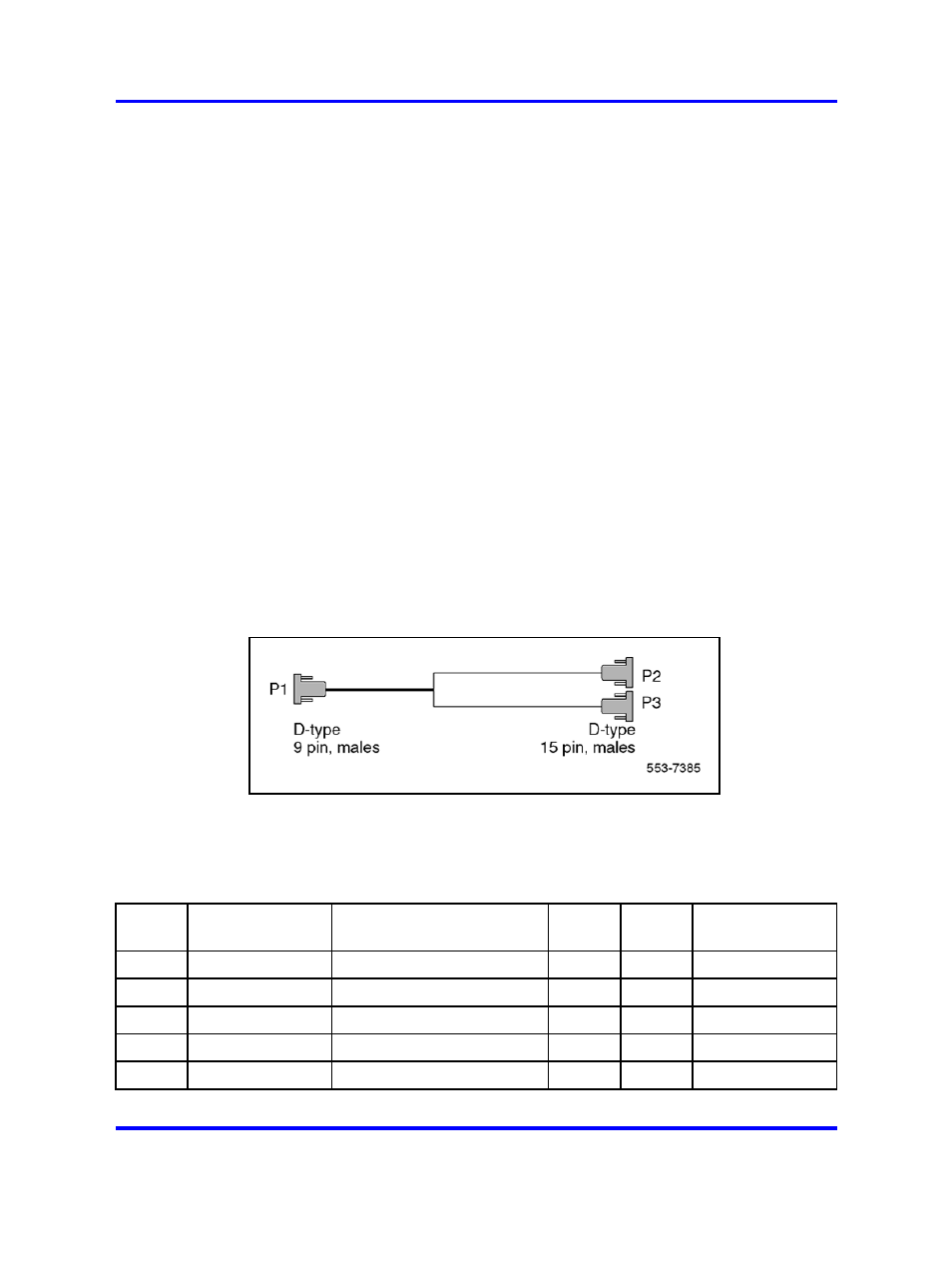

Figure 84
NTCK45AA
Table 125 "NTCK45AA cable pins" (page 327) which follows lists the pin
attributes for the NTCK45AA cable.
Table 125
NTCK45AA cable pins
Cable Name Description Color
DDP2
pins I/O Pane
pins
0 T-PRI0TX Trunk 0 Transmit Tip Black P1-1 P2-6
0 R-PRI0TX Trunk 0 Transmit Ring Red P2-2 P2-7
0 T-PRI0RX Trunk 0 Receive Tip Black P1-3 P2-2
0 R-PRI0RX Trunk 0 Receive Ring White P1-4 P2-3
0 GND Shield Wire Bare N/C Case P2
