424 NT8D02 and NTDK16 Digital Line cards
Figure 111

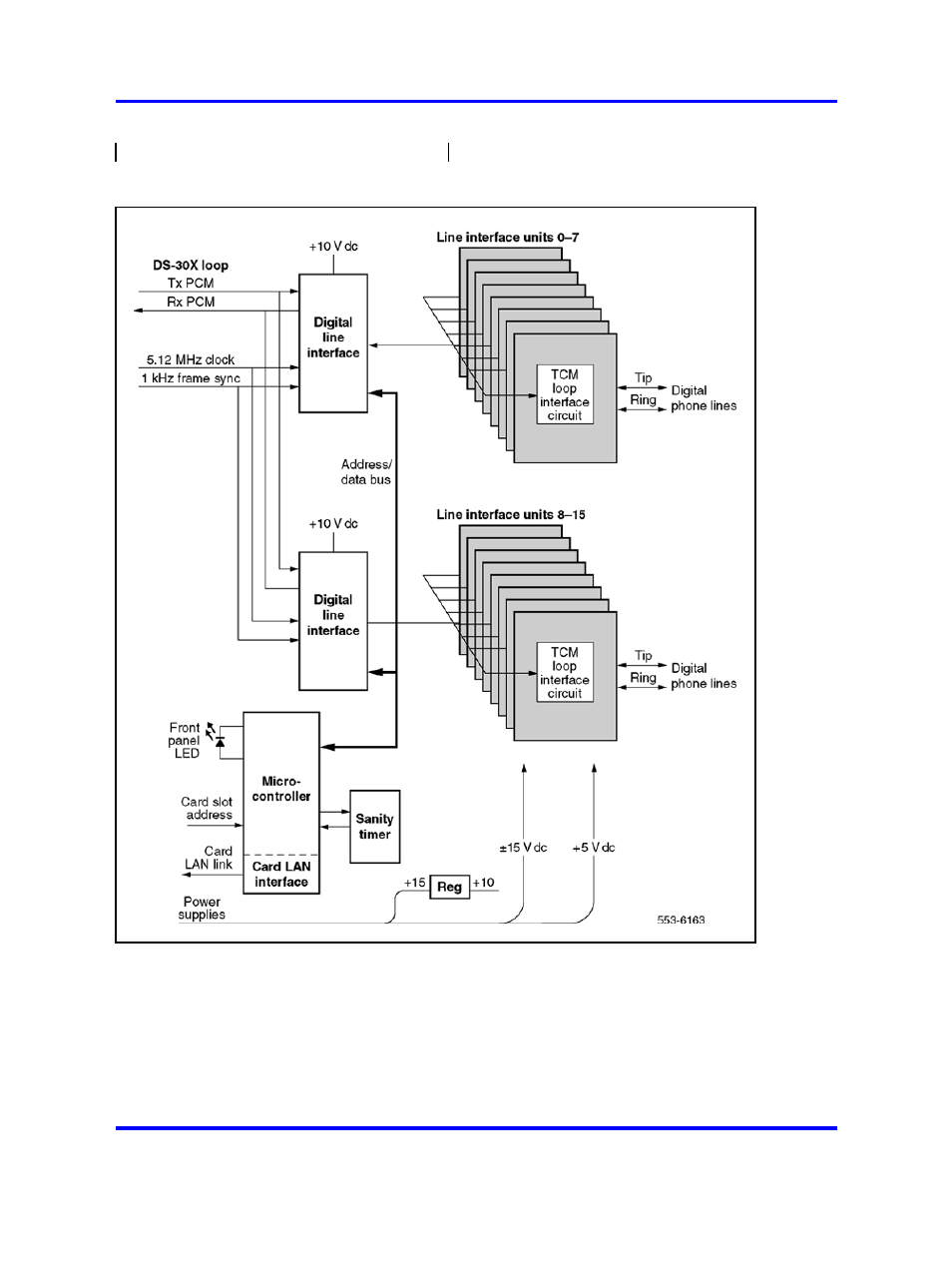

Digital line card - block diagram
The NT8D02 Digital Line Card is equipped with 16 identical digital line
interfaces. Each interface provides a multiplexed voice, data, and signaling
path to and from a digital terminal (telephone) over a 2-wire full duplex
512 kHz Time Compression Multiplexed (TCM) digital link. Each digital
telephone and associated data terminal is assigned a separate Terminal
