700 NT8D15 E and M Trunk card
A typical connection example is shown in Figure 237 "E and M Trunk card
- typical cross connection example" (page 700) . A list of the connections to
the E and M Trunk card in the various 2-wire modes is shown in Table 273
"E and M Trunk card - backplane pinouts for 2-wire modes" (page 699) .
A list of the connections to the E and M Trunk card in the various 4-wire
modes is shown in
Table 274 "E and M Trunk card - backplane pinouts
for 4-wire modes" (page 699) . See Communication Server 1000M and
Meridian 1 Large System Installation and Configuration (NN43021-310) for
complete I/O connector information and wire assignments for each tip/ring
pair.

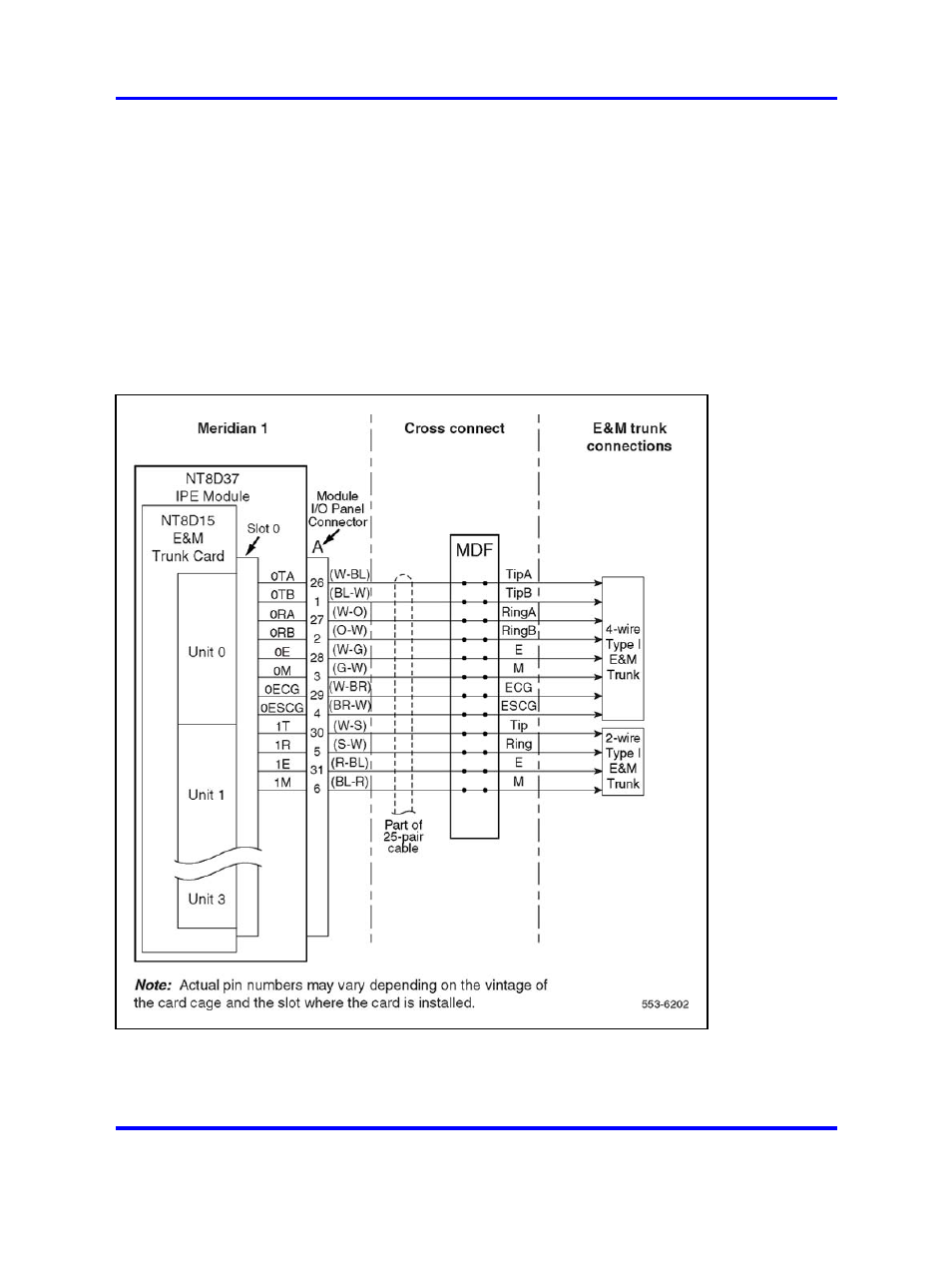

Figure 237
E and M Trunk card - typical cross connection example
