Operation 669

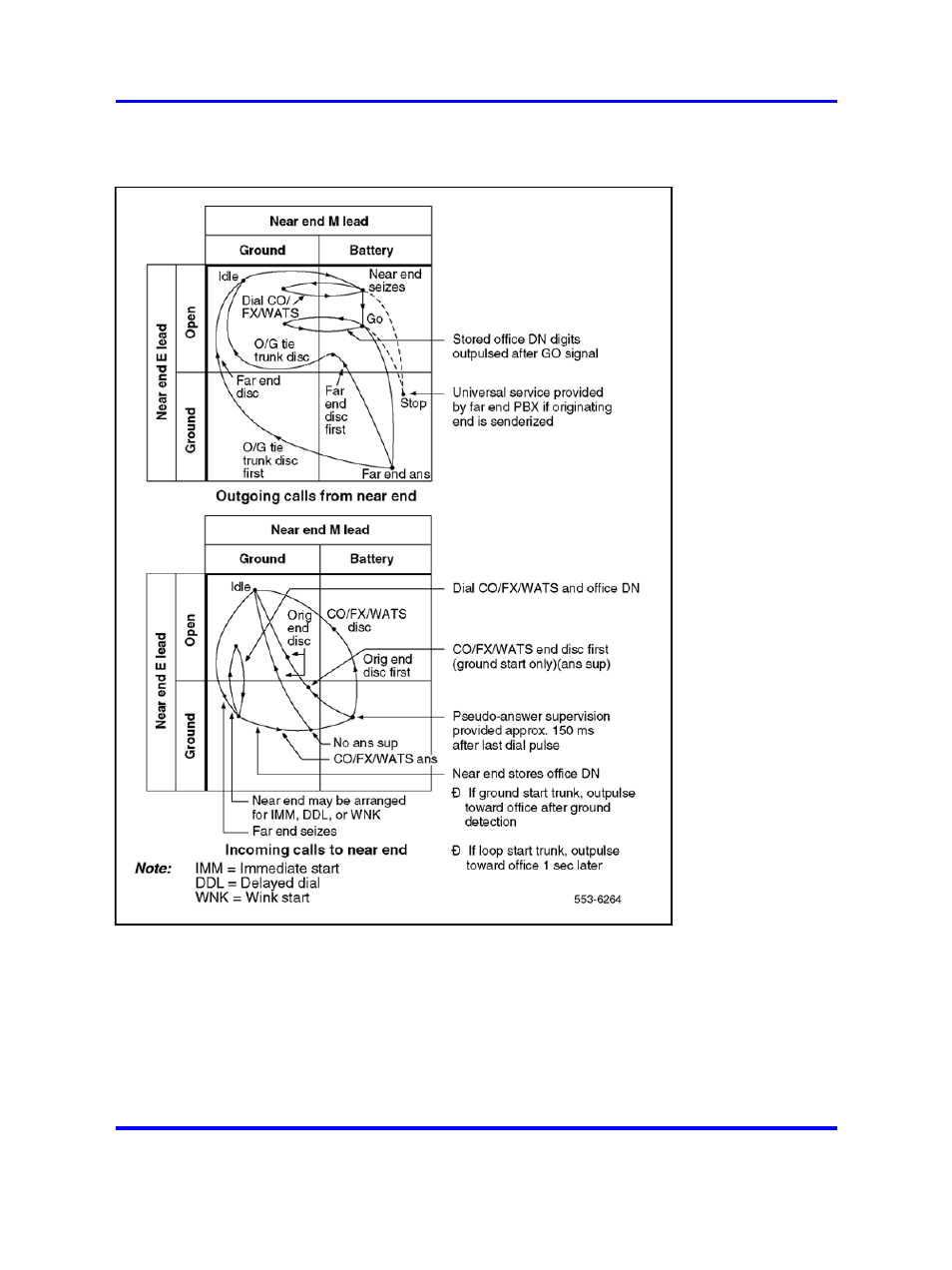

Figure 225
E and M Type I signaling patterns - originating party release on a tandem connection
— If answer supervision is provided by the far end, there is a change
from open to ground on the E lead (ground detection).
Outgoing calls are processed as follows:
• The M lead changes from ground to battery.
— If answer supervision is provided by the far-end, there is a change
from open to ground on the E lead (ground detection).
