944 NTDW61 and NTDW66 Common Processor Pentium Mobile Card
Ethernet LEDs
ELAN and TLAN LEDs

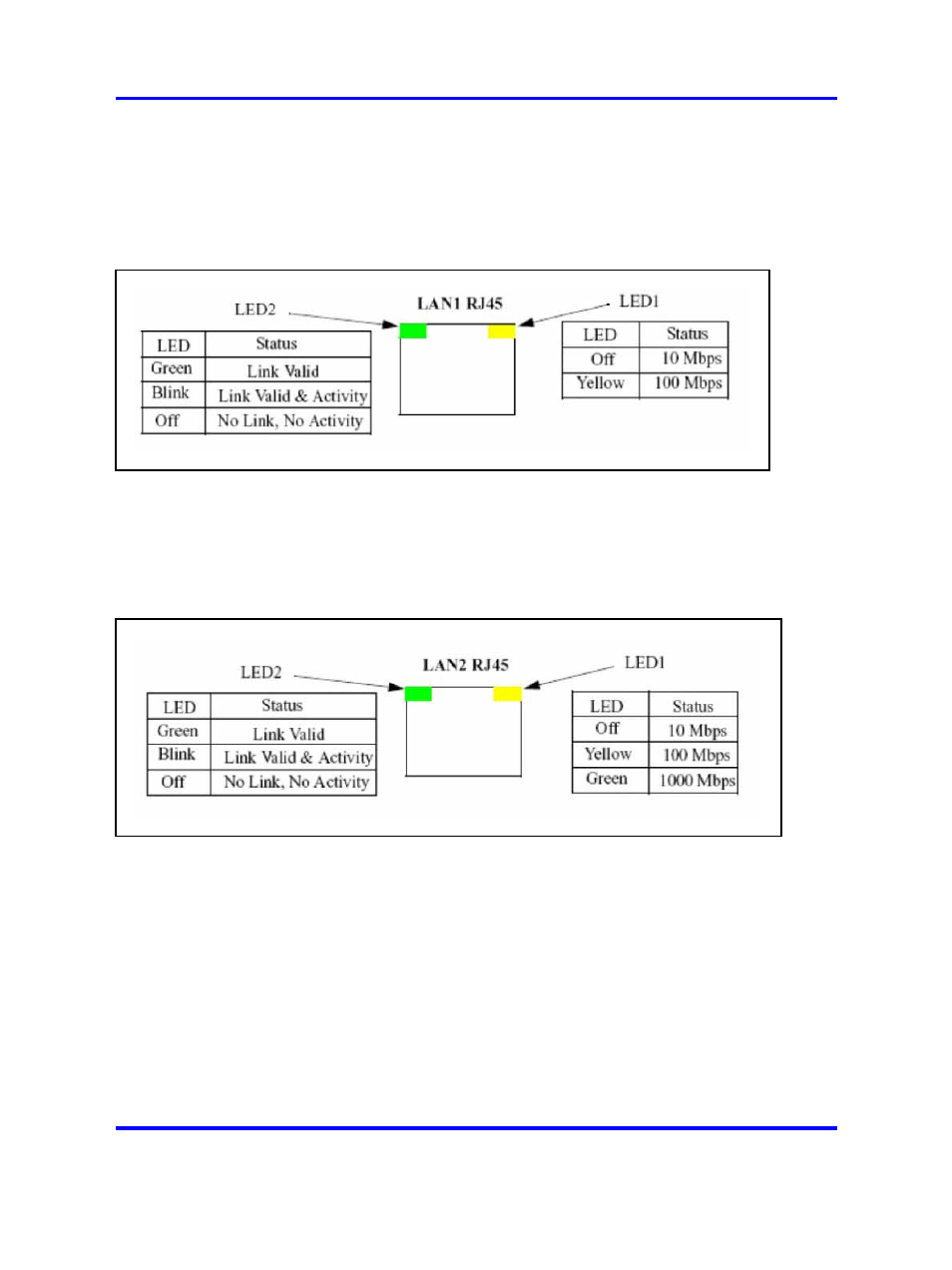

The functionality of the ELAN and TLAN network interface LED indicators
is depicted in the following figure.
Figure 271
ELAN and TLAN port LED indicators
HSP LEDs
The functionality of the HSP port LED indicators is depicted in the following
figure.
Figure 272
HSP port LED indicators
Removable and fixed media drive LEDs
LEDs are provided to indicate the access/activity of the removable and
fixed media drives.
