186 NT5D11 and NT5D14 Lineside T1 Interface cards

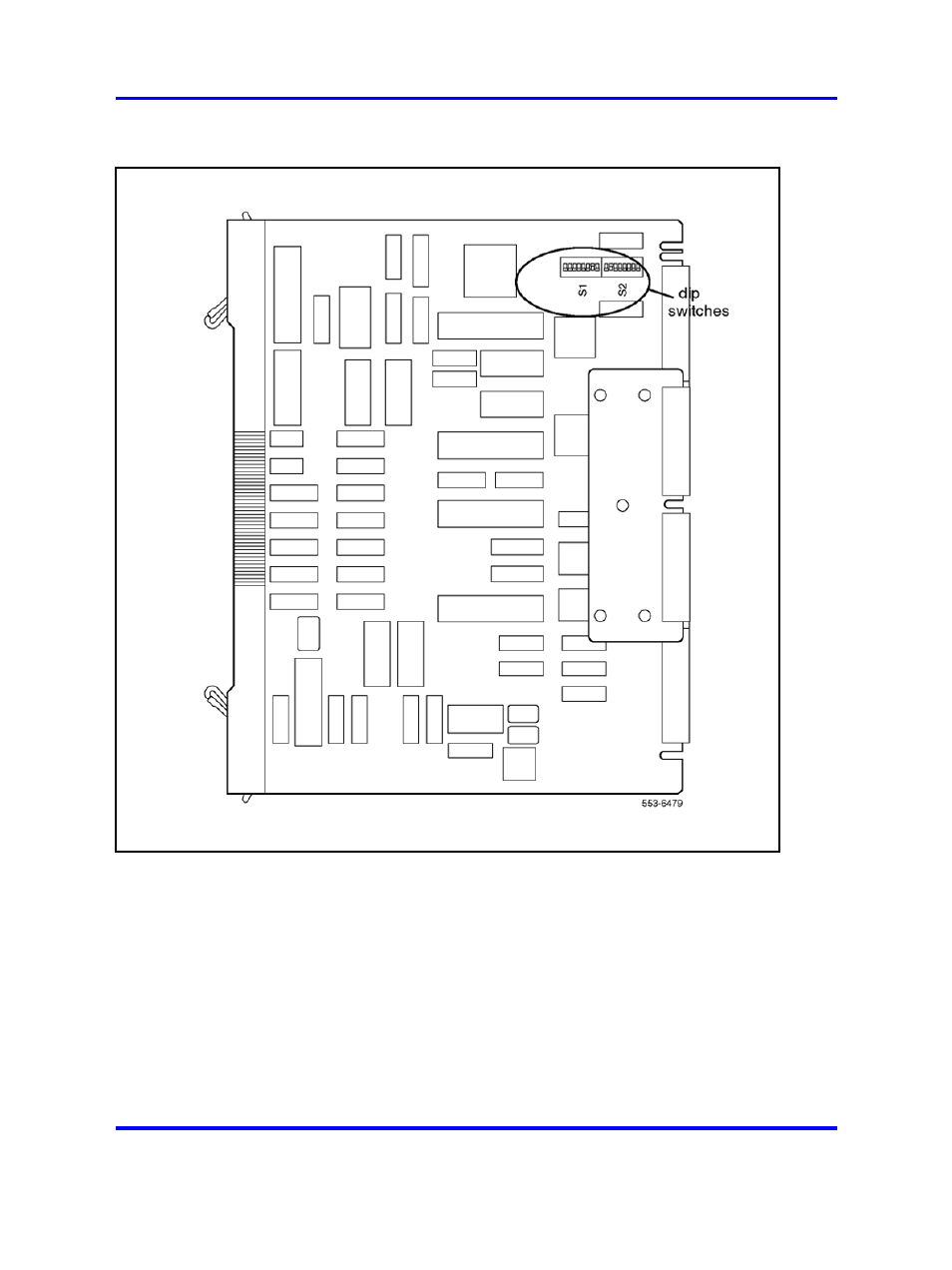

Figure 32
Lineside T1 card - T1 protocol dip switch locations
Line Supervisory Signaling protocol
As described in “Power requirements” (page 317) , the Lineside T1 card is
capable of supporting loop start or ground start call processing modes.
Make the selection for this dip switch position based on what type of line
signaling the CPE equipment supports.
