Physical description 329
Table 126
NT8D7217 cable pins (cont’d.)
Cable Name Description Color
DDP2
pins I/O Panel
pins
0 R-PRI0TX Trunk 0 Transmit
Ring White P1-7 P2-7
0 T-PRI0RX Trunk 0 Receive Tip Black P1-2 P2-2
0 R-PRI0RX Trunk 0 Receive Ring Red P1-3 P2-3
0 GND Shield Wire Bare P1-5 N/C
0 GND Shield Wire Bare P1-9 N/C
1 T-PRI1TX Trunk 1 Transmit Tip Black P1-6 P2-6
1 R-PRI1TX Trunk 1 Transmit
Ring White P1-7 P2-7
1 T-PRI1RX Trunk 1 Receive Tip Black P1-2 P2-2
1 R-PRI1RX Trunk 1 Receive Ring Red P1-3 P2-3
1 GND Shield Wire Bare P1-5 N/C
1 GND Shield Wire Bare P1-9 N/C
NTCK78AA (A0618294) The NTCK78AA (50 ft.) is an 120W cable for
connecting the TRK port on the DDP2 faceplate (P1, D-type 9 pin male)
to the Main Distribution Frame (MDF) (P2, P3 D-type 15 pin males). The
NTCK78AA is used for systems not equipped with an I/O filter panel.

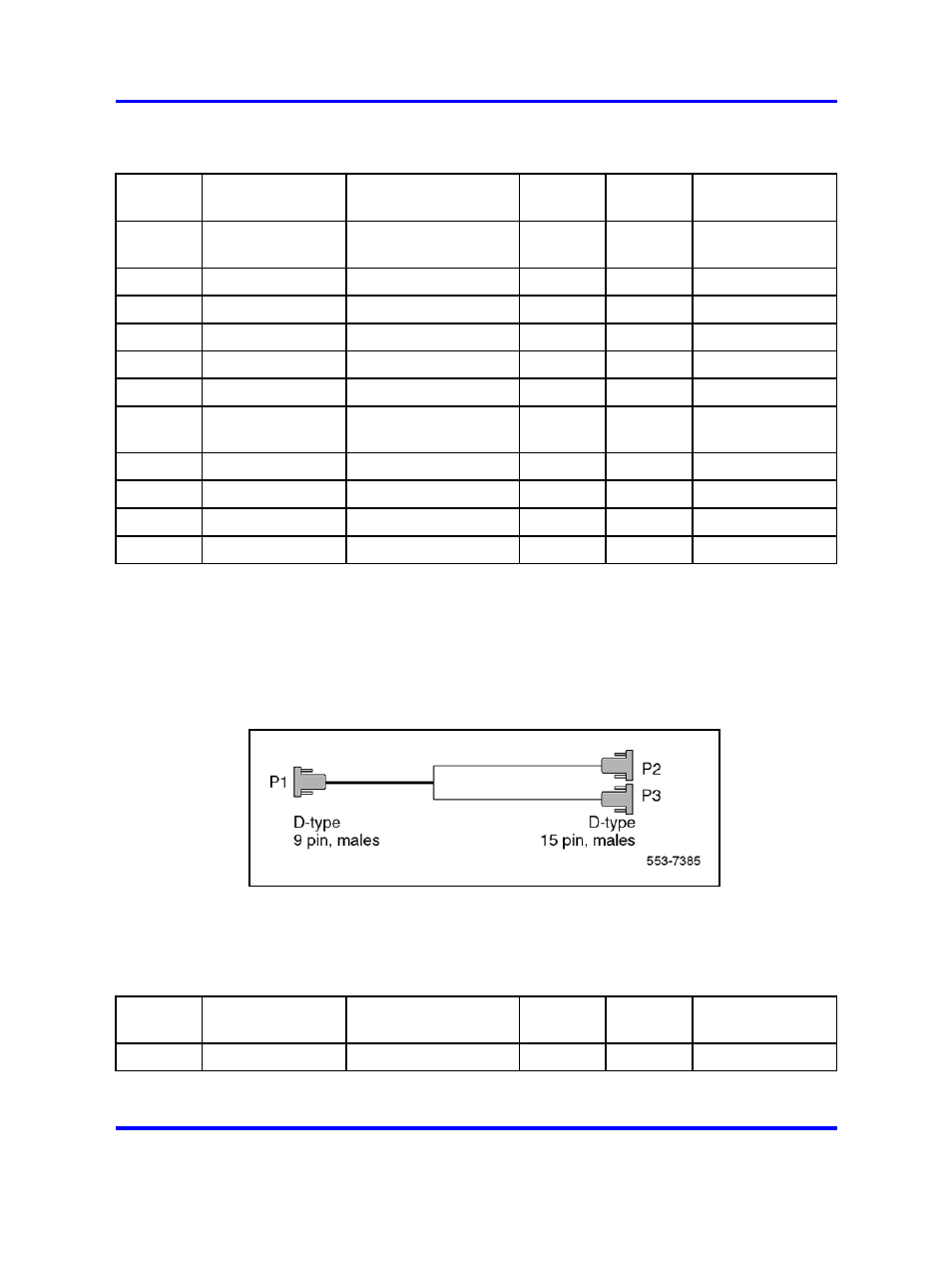

Figure 86
NTCK78AA
Table 127 "NTCK78AA cable pins" (page 329) lists the pin attributes for
the NTCK78AA cable.
Table 127
NTCK78AA cable pins
Cable Name Description Color
DDP2
pins
NCTE pins
0 T-PRI0TX Trunk 0 Transmit Tip Black P1-1 P2-1
