NT1R20 Off-Premise Station card 81

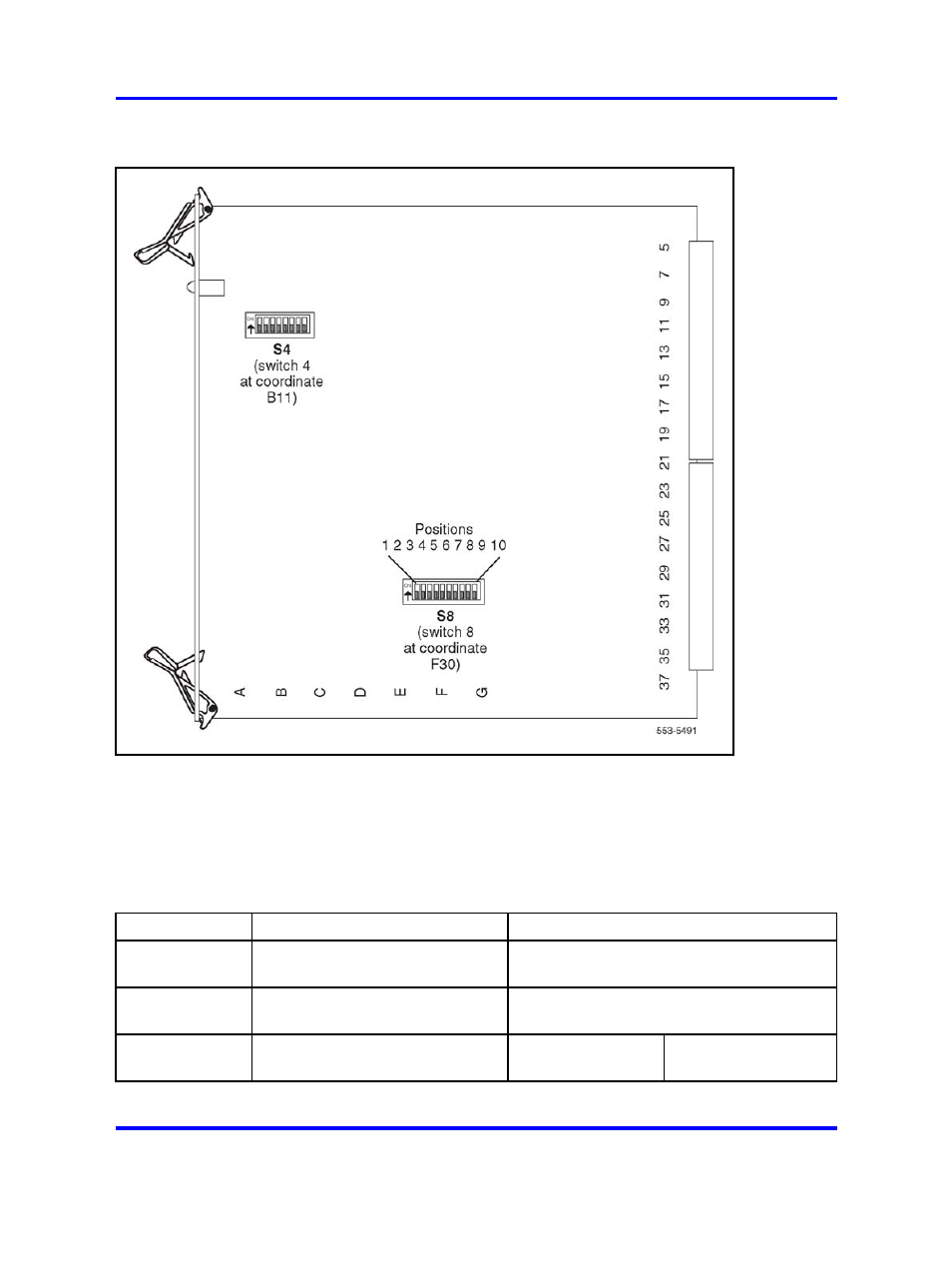

Figure 17
Circuit card grid
NT1R20 Off-Premise Station card
Table 13 "OPS analog line card configuration" (page 81) lists option
settings for the NT1R20 Off-Premise Station analog card.
Table 13
OPS analog line card configuration
Application On-premise station (ONS) Off-premise station (OPS)
Class of Service
(CLS) (Note 1)
ONP OPX
Loop resistance
(ohms)
0–460 0–2300 (Note 2)
Jumper strap
setting (Note 6) Both JX.0 and JX.1
off
Both JX.0 and JX.1
off
Both JX.0 and JX.1
on
