Clocking Requirement
215
Pre requisites
The pre requisites for connecting an MGC DECT Clock Reference Cable
are the following:
•
MGC DECT Clock Reference Cable --- NTDW67AAE5.

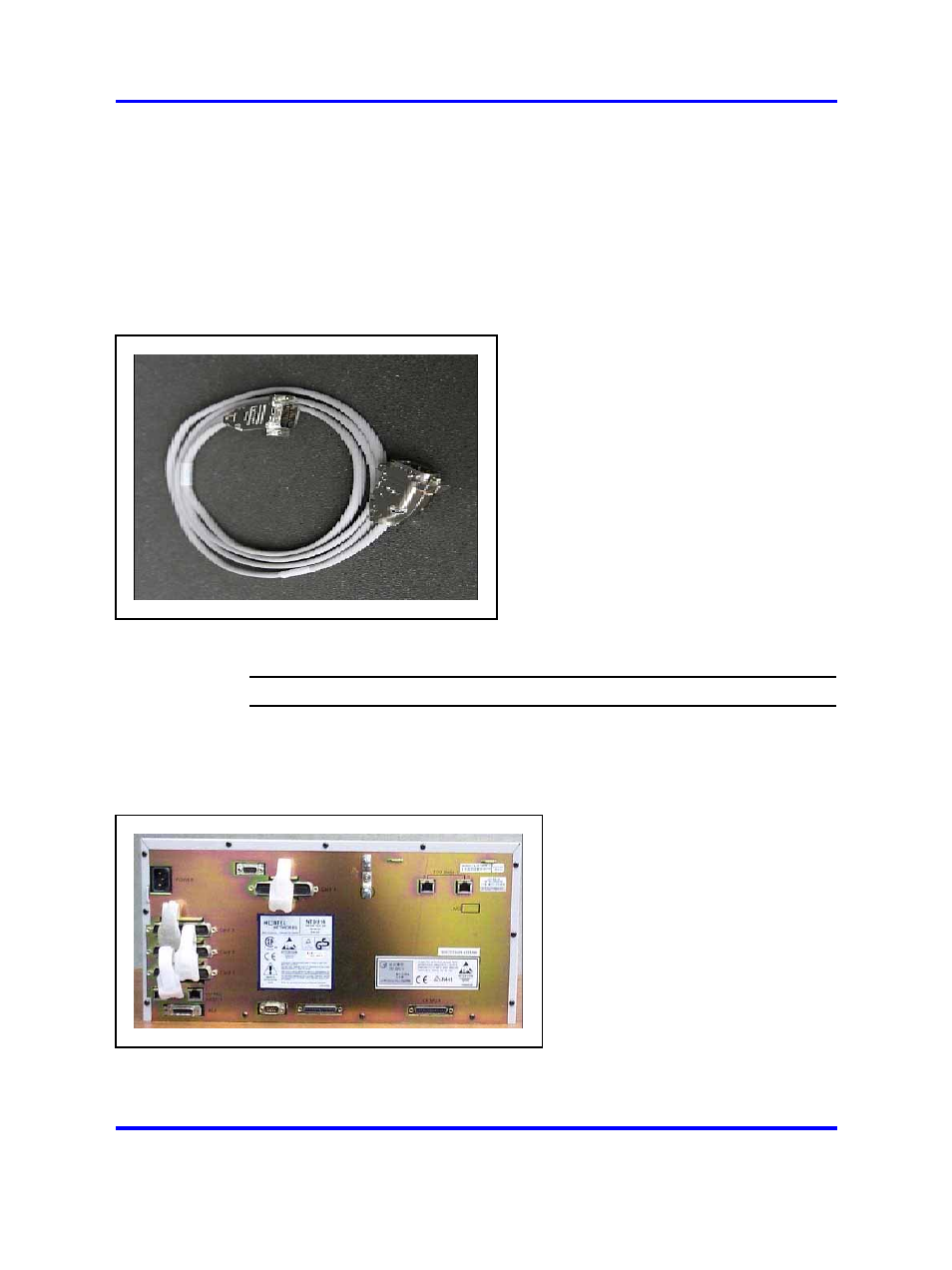

Figure 38 "MGC DECT Clock Reference Cable" (page 215)
shows
the MGC DECT Clock Reference Cable. It is used to provide clock
reference between CS1000 Media Gateway Cabinet/chassis.
Figure 38
MGC DECT Clock Reference Cable
Connecting MGC DECT Clock Reference Cable
Step
Action
1
Connect the MGC DECT Clock Reference Cable to the AUI port
of the back of the MG1000 chassis.
shows the AUI port of the MG1000 chassis.
Figure 39
MG1000 chassis
2
In the Option 11C Mini chassis or Succession 1.0 MG chassis,
connect to 15-pin DSUB connector on the back panel formerly
used for the 10Base-T AUI connection.
