528 NT8D14 Universal Trunk card
or DTMF tones. See Figure 151 "Ground start call states - outgoing call"
(page 528) and Figure 152 "Ground start call connection sequence -
outgoing call" (page 529) .
The Polarity-Sensitive/Polarity-Insensitive Packs (PSP and PIP) feature
must be set to provide for proper outgoing call-duration recording with
ground start operation. Refer to the description of loop start operation in
this section for a more complete discussion of PSP and PIP.

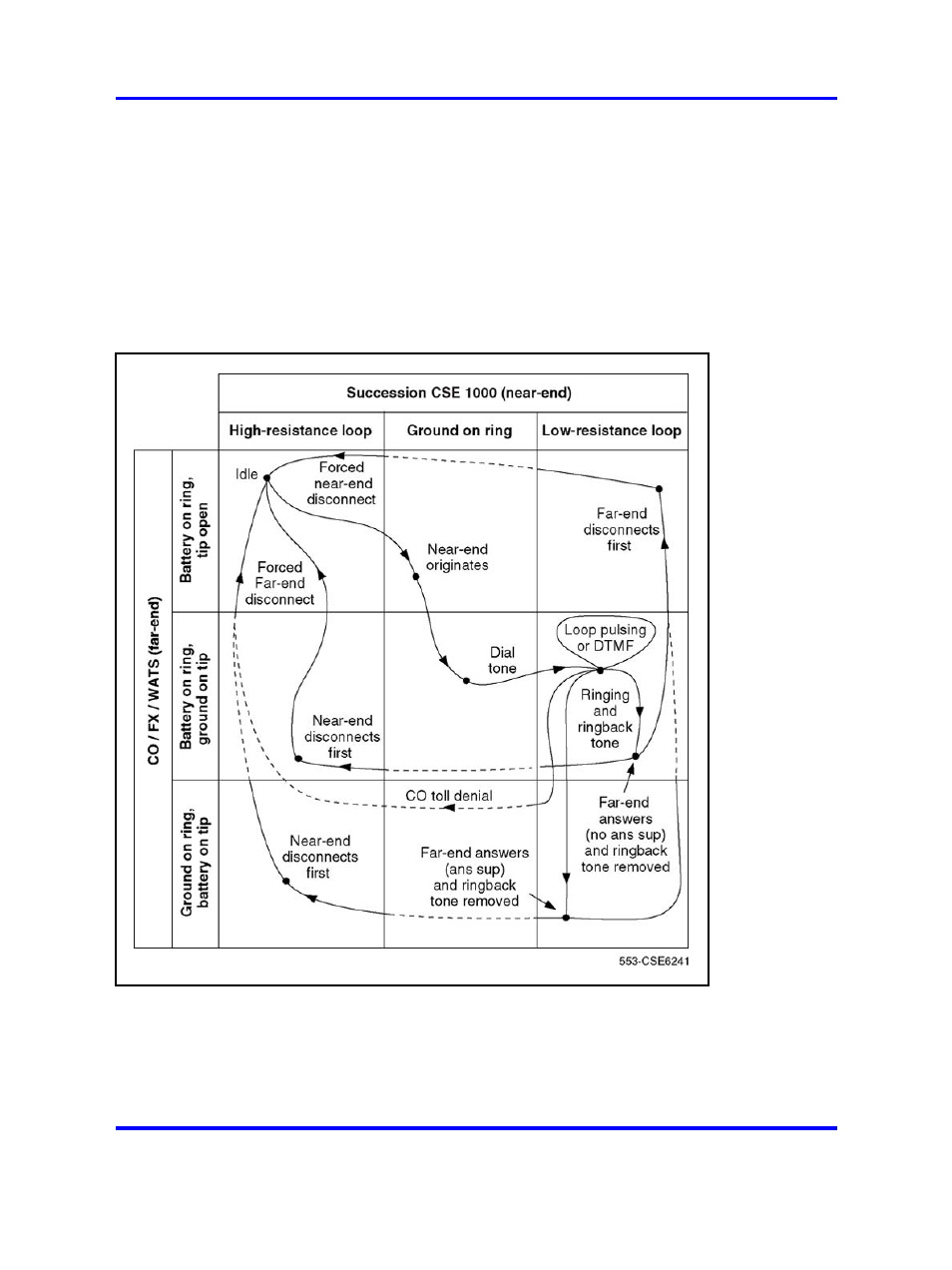

Figure 151
Ground start call states - outgoing call
Nortel Communication Server 1000
Circuit Card Reference
NN43001-311 02.06 Standard
27 August 2008
Copyright © 2003-2008 Nortel Networks
.
