Applications
717

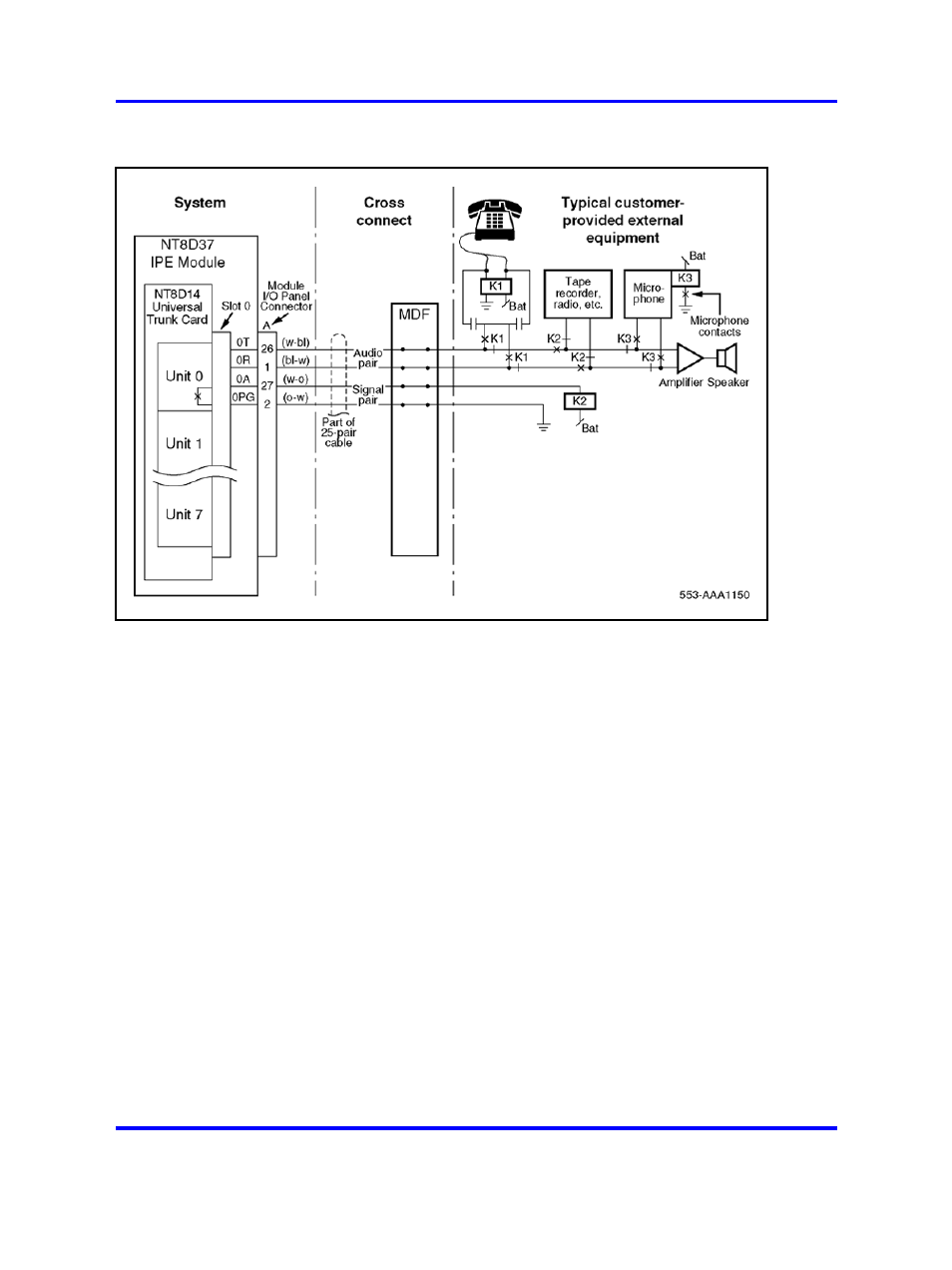

Figure 243
Paging trunk operation
When used in the paging mode, a trunk is connected to a
customer-provided paging amplifier system (not zone selectable). When
the trunk is accessed by dial-up or attendant-key operation, it provides a
loop closure across control leads PG and A1. See
In a typical application, this transfers the input of the paging amplifier
system to the transmission path of the trunk.
When used in the paging mode, a trunk is connected to a
customer-provided paging amplifier system (not zone selectable). When
the trunk is accessed by dial-up or attendant-key operation, it provides a
loop closure across control leads PG and A1. See
. In a typical application, this transfers the input
of the paging amplifier system to the transmission path of the trunk.
When used in the Paging mode the trunk circuit is connected to a
customer-provided paging amplifier system. When the trunk is accessed
by dial up or attendant key operation, it provides a loop closure across
control leads A and B. In a typical application, it transfers the input of the
paging amplifier system to the transmission path of the Trunk.
