437 MAESTRO User Manual
Appendix D — Specifications
Environmental
Air Intake/Exhaust Locations
8 RU Frame

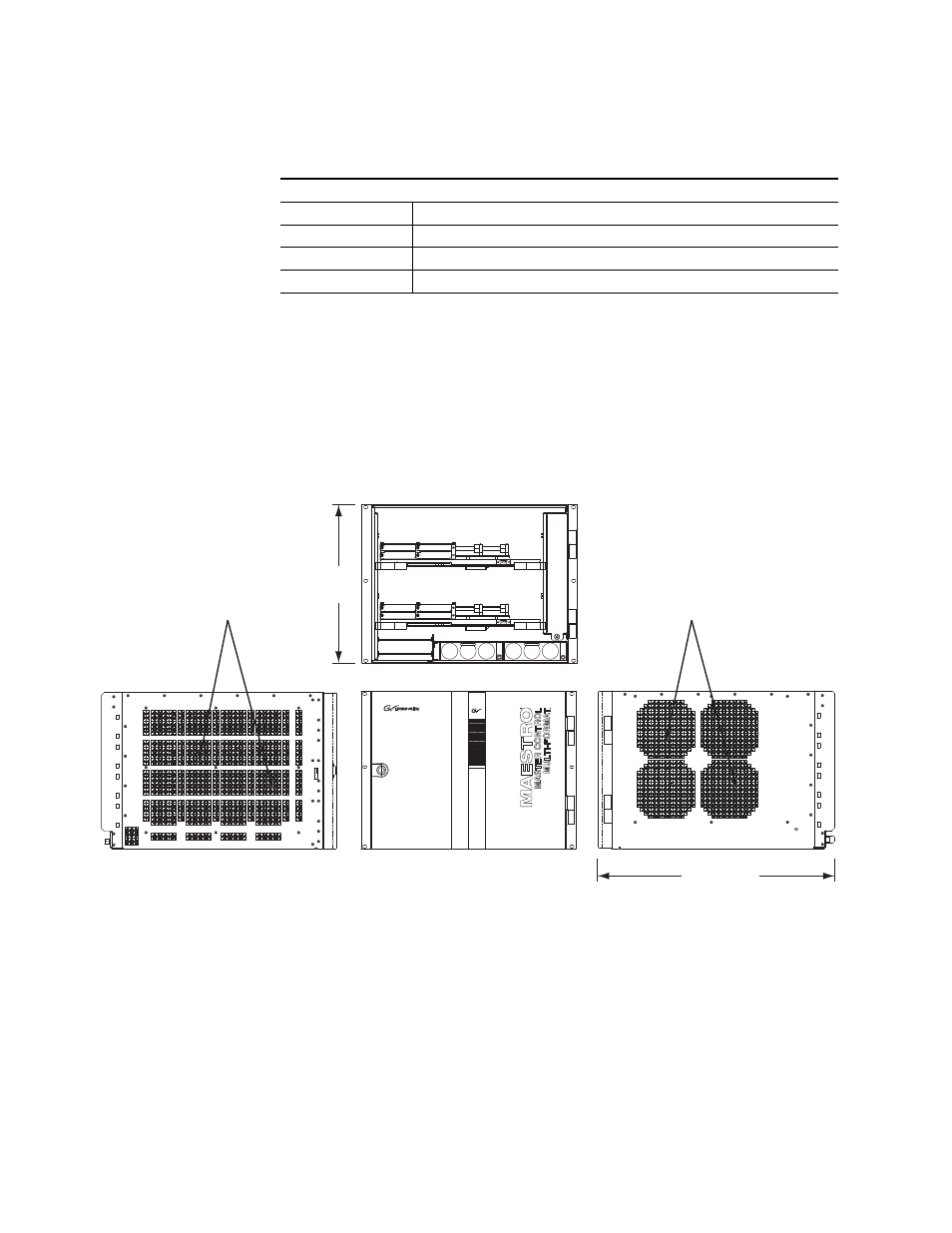

Figure 3. Two-channel Maestro system in 8 RU frame
The MAESTRO 8 RU frame ventilation system draws cooling air through
openings on the left side. Warm air is exhausted through four fans located
on the right side. The left and right sides must therefore be keep clear of
obstructions. It is not necessary to leave open space above or below the
chassis.
Note Heat-generating equipment must not be mounted beneath the MAESTRO
chassis.
Table 13.
Environmental Characteristics (SD and HD operation with required forced air cooling)
Operating temperature 32 to 106 degrees F (0 to 40 degrees C)
Storage temperature -13 to 185 degrees F (-25 to 85 degrees C)
Full specifications met 60 to 95 degrees F (15 to 35 degrees C) (after 30 minute warm-up)
Relative humidity Up to 95% (noncondensing)
Front view
(door removed)
Left side Right side
Air intake openings Exhaust fans (4)
8 RU
(14 in.)
20.5 inches
(521 mm)
