397 MAESTRO User Manual
Section 8 — Maestro Content Management Center

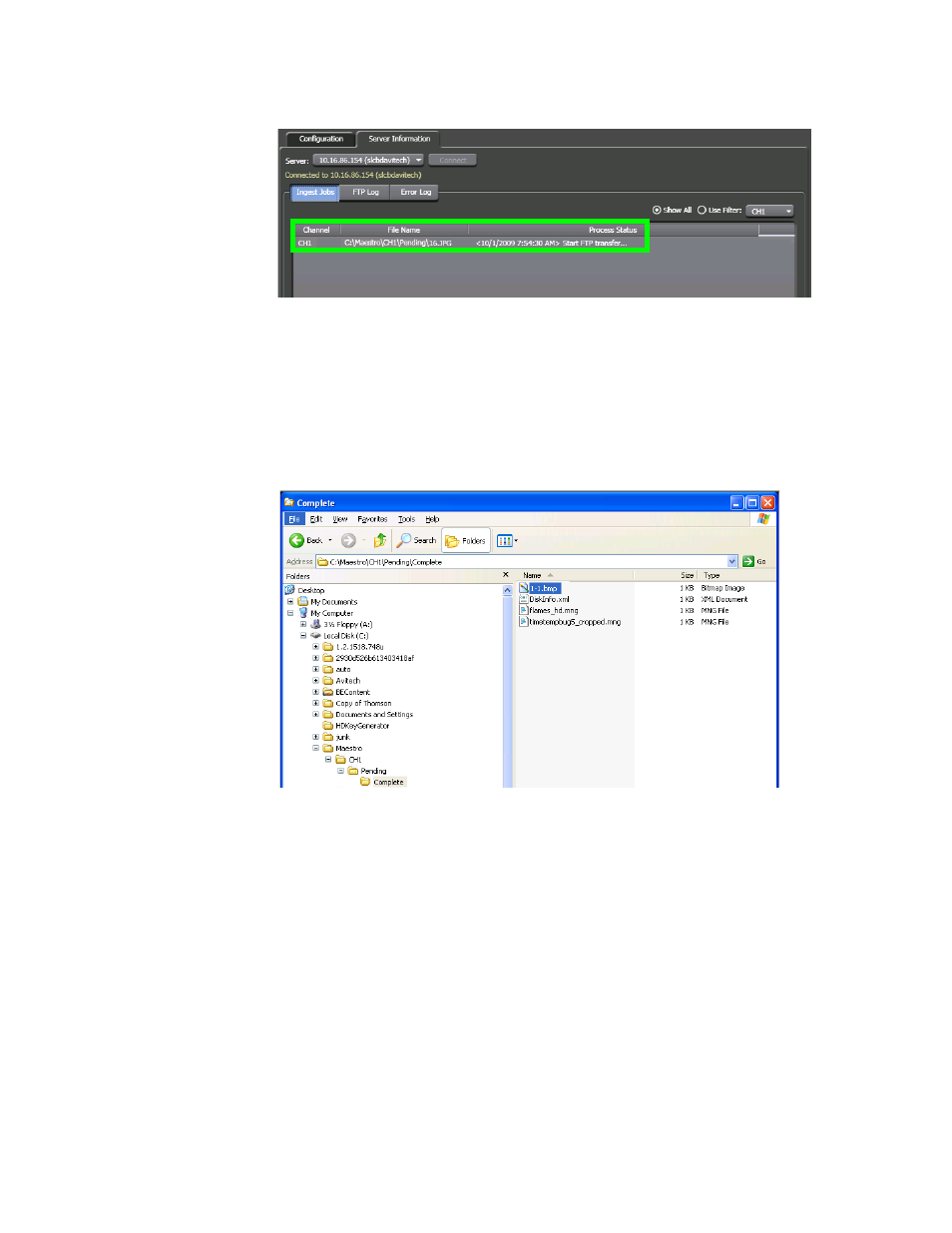

Figure 304. The File is Processed
The file will be transferred to the associated frame processor via
FTP after it has been converted.
• The file will be placed in the Complete folder when the conversion
and deployment is completed. The DiskInfo.xml file, which con-
tains a record of the available disk space, is then updated.
Figure 305. The Complete Folder
Reporting Tools
Transfer Completed
A message will appear in the Process Status column when the FTP process
is completed. This message indicates that all internal Maestro element pro-
cessing has been completed and the content is available to be loaded and
played.
