MAESTRO User Manual

126

6th Step: Input-based Sets

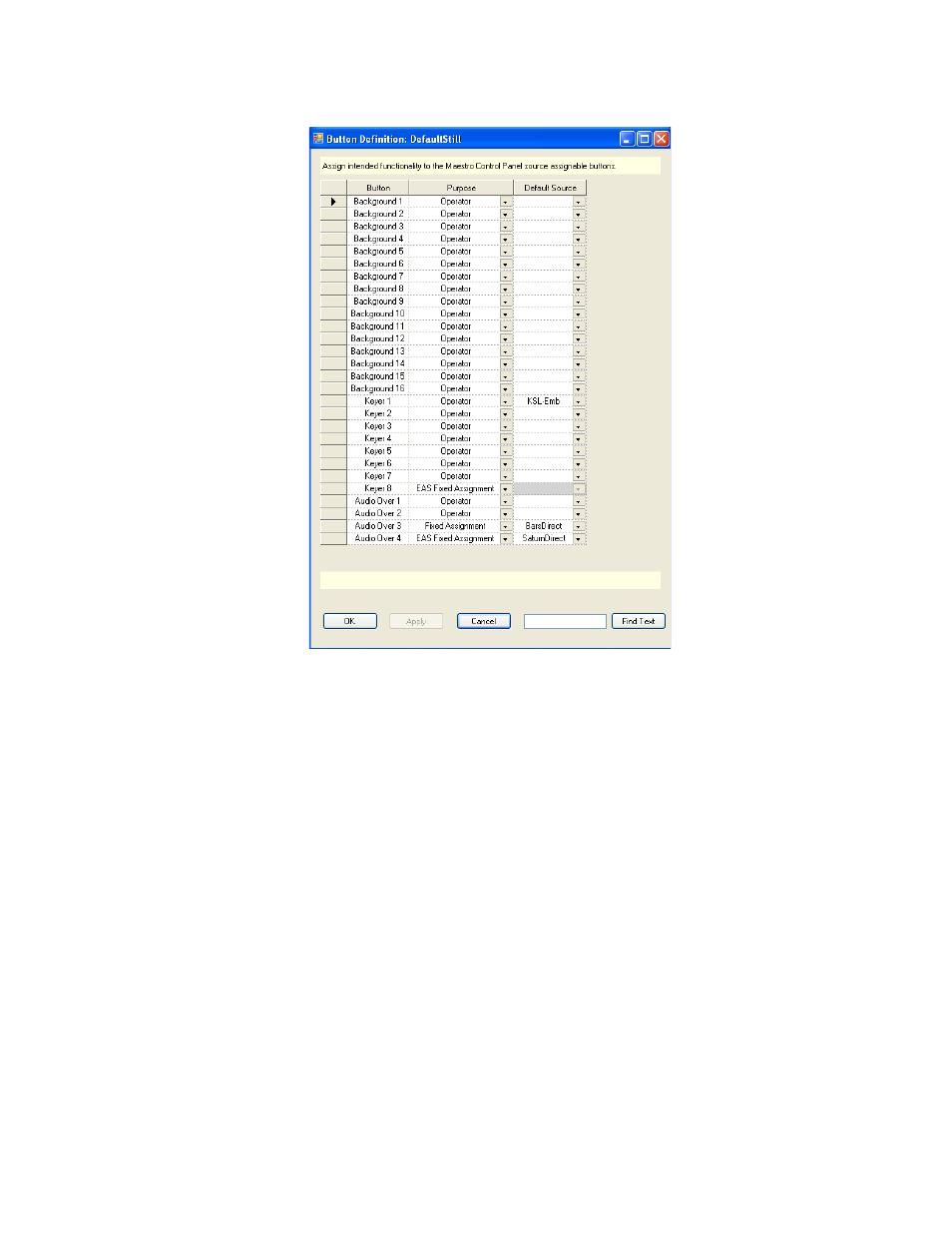

Figure 67. Button Definition Set (Example)

Button

This column shows a software-generated list of Maestro buttons including
all eight keyers and all four audio mixers. This list includes all selectable
LCD push buttons to which sources can be assigned.
