Dynamic Channel Mapping

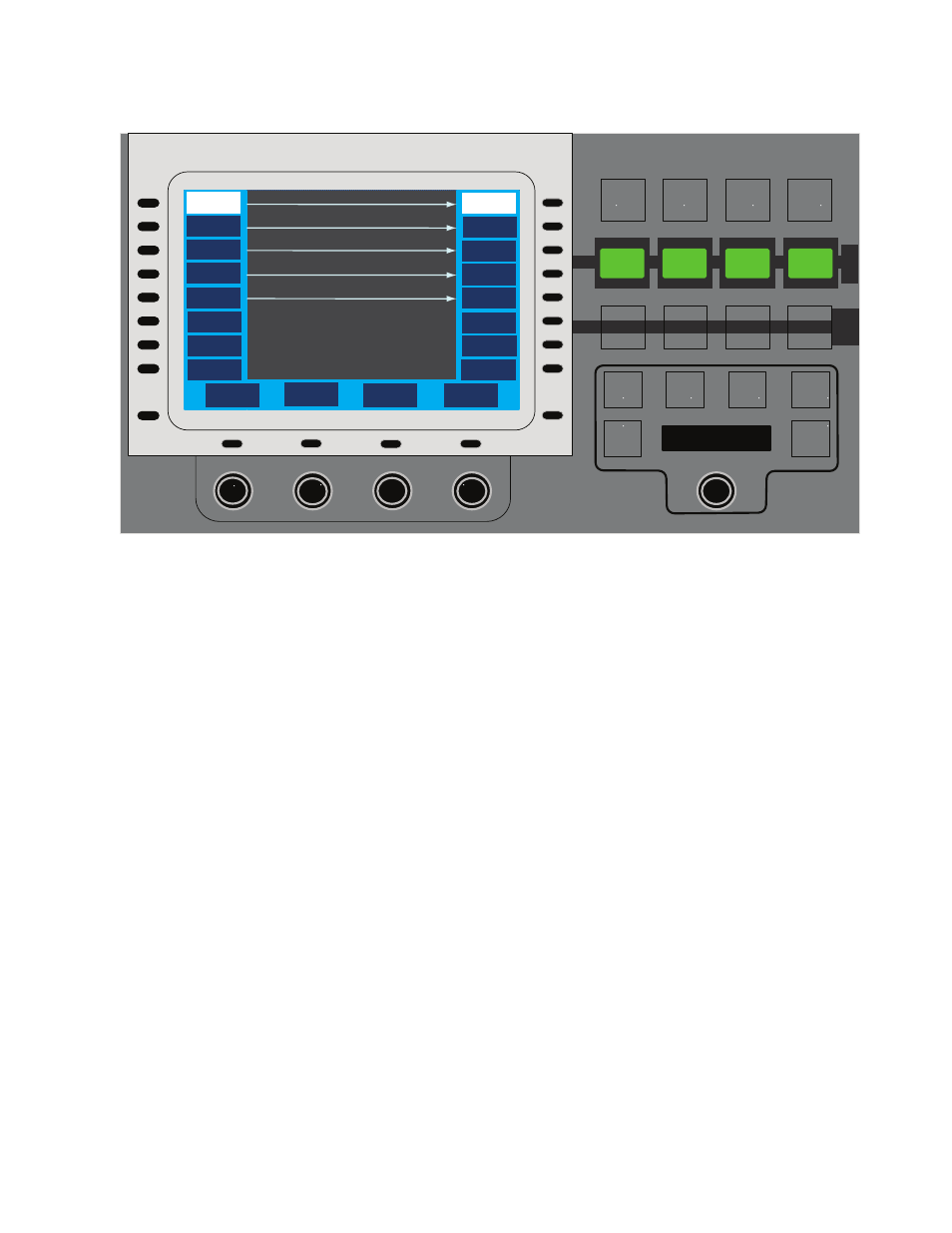

Figure 146. Channel Mapping Screen
The Channel Mapping Screen provides the following information and con-
trols:
• : Indicates the audio source (Program, Preset, AUX, Clean
Feed, etc.) being monitored on the Audio Control Home Screen.
Note The background color behind the soft buttons indicates the status of the
audio being monitored. If it is red, it is on-air and contributing to Program
content. If it is yellow, it will go to air on the next transition and is contributing
to Preset content. If it is blue, it is not currently on-air nor will it be going to
air on the next transition. For more information, see Audio Monitor Source
Tally
on page 230 .
• : Indicates the name/mnemonic of the source whose input
group is currently mapped to the monitored output group.
• Audio Input Group Name and : Appears on the left side of the screen.
The audio input group name is the first line of text and the mnemonic
for the selected source for that group appears on the second line.
• Audio Output Group Name: Appears on the right side of the screen. Audio
output group names come from the Audio Output Set defined in the
Maestro Configuration Editor. The first line of text is the audio group
name. The second line of text is the group status. The line will
be blank unless the named audio group is not defined for the selected
source.
