MAESTRO — User Manual 316
Visualization Tool

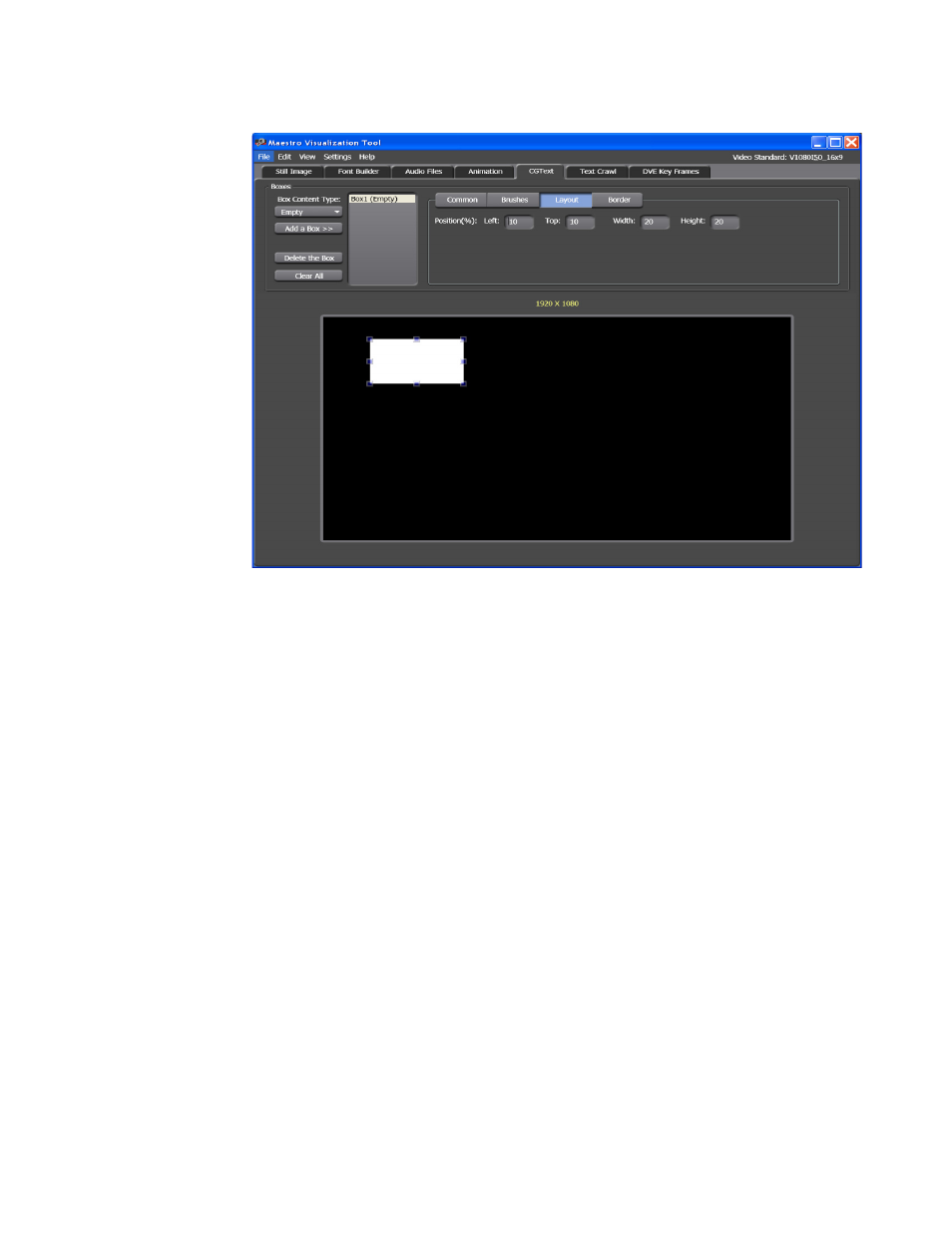

Figure 205. Visualization Tool - Box Layout Configuration Section
7. Drag the box to the location that you prefer. The information in the
Position% section will change to show the current position of the box.
You can also change the position by entering the information in the Left
and Top fields.
8. Change the size of the box by clicking on a corner and dragging. The
information in the Position% section will change to show the current
size of the box. You can also change the size by entering the information
in the Width and Height fields.
The result of these changes can be seen in Figure 206 on page 317 . The
numbers reflect the position of the Empty box’s top and left edge from
the top and left edges of the Display area. For example, in
Figure 206
the box has been stretched to the left edge so the value in the Left field
is zero (0). The height of the box is 20% of the Display area, so the Top
field shows 80.03, which means the top of the box is about 80% away
from the top of the Display area.
