MAESTRO — User Manual

314

Visualization Tool

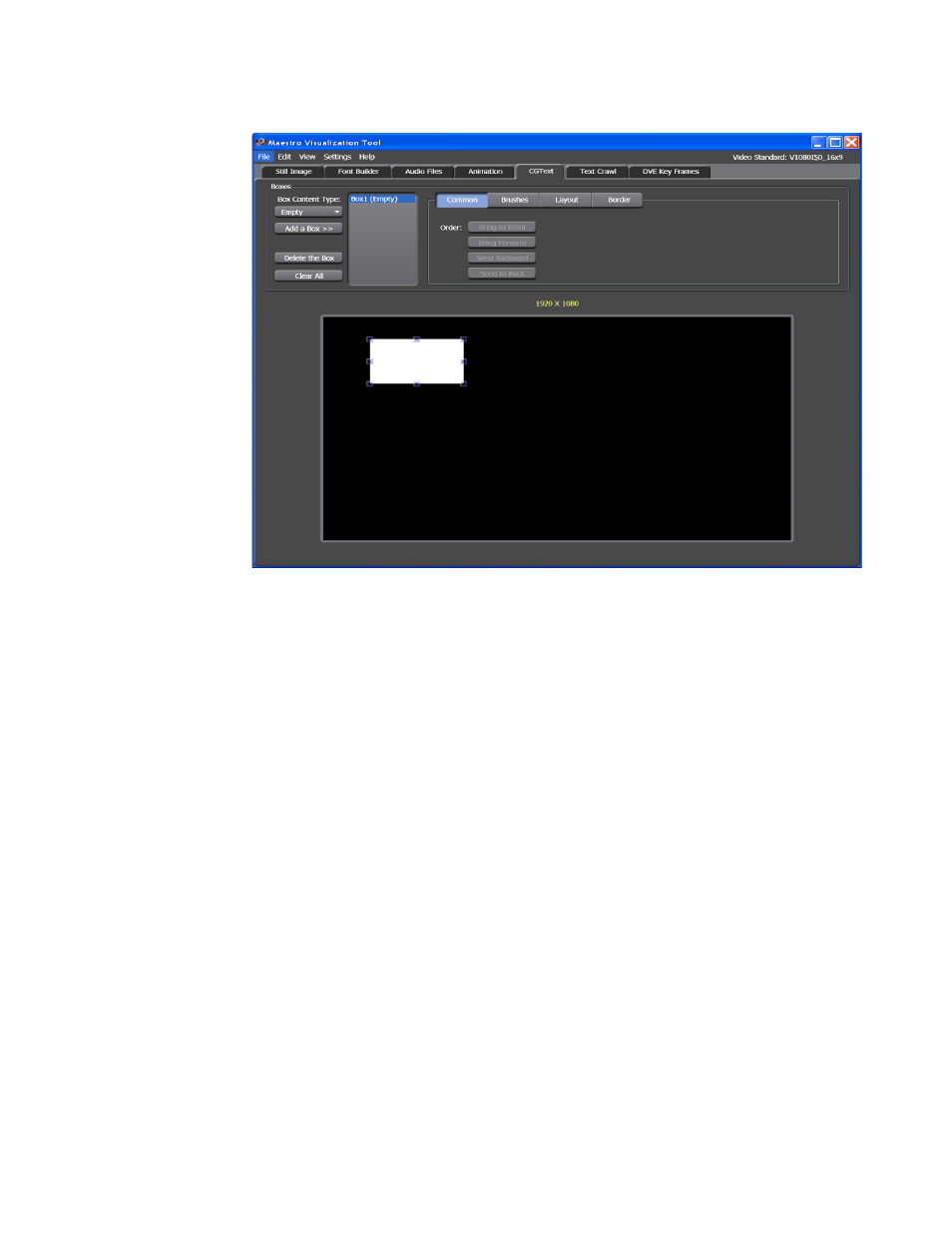

Figure 203. Visualization Tool - Box Configuration Section

Since this box is the only one in the display area, the buttons in

Common

tab are inactive.

4.

Click the

Brushes

button. The configuration settings will change to show

color options (

Figure 204 on page 315

).
