373 MAESTRO User Manual
Section 7 — DVE Option Configuration

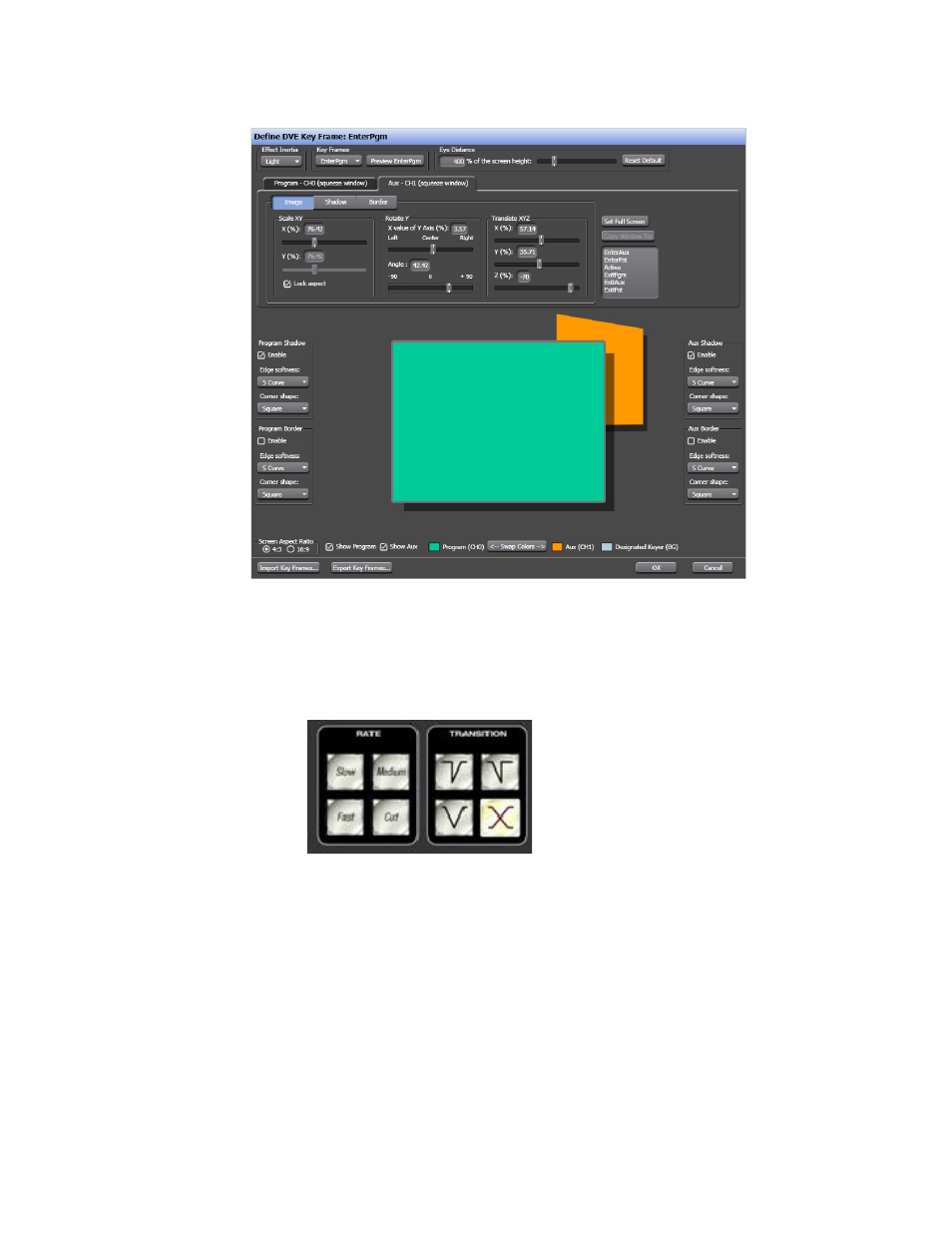

Figure 267. Example of a Maestro DVE Effect
A transition type (cut, fade, or wipe) and transition speed are selected using
the Maestro control panel. The Rate and Transitions buttons (
Figure 268 )
are located to the left of the EFFECTS button group.
Figure 268. The RATE and TRANSITION Button Groups
Transitions to DVE effects and exits from DVE effects take place at the
selected rate and type.
A unique number from 1-255 is entered for each DVE effect name in the
Automation DVE Association table of the Configuration Editor applica-
tion. Make sure this number is the same as the number that is designated
in your automation system for the desired effect.
