Pinout Tables
MPC5200B Users Guide, Rev. 1
Freescale Semiconductor 2-37

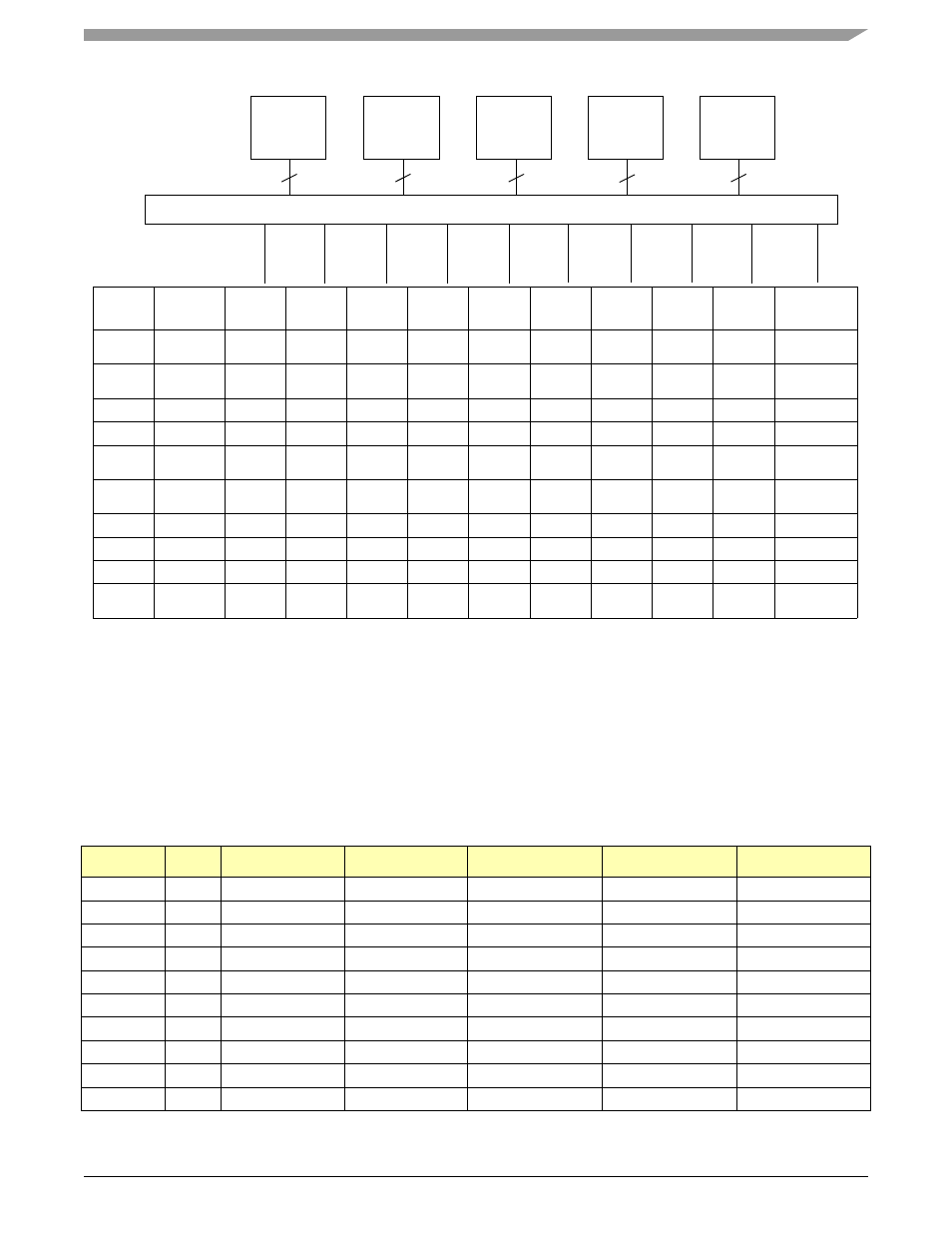

Figure 2-6. PSC3 Port Map—10 Pins
Table 2-13. PSC3 Pin Functions
Pin name Dir. GPIO USB2 UART3 UART3e CODEC3
PSC3_0 I/O (O) GPIO USB2_OE UART3_TXD UART3e_TXD CODEC3_TXD
PSC3_1 I/O(I) GPIO USB2_TXN UART3_RXD UART3e_RXD CODEC3_RXD
PSC3_2 I/O(I) GPIO USB2_TXP UART3_RTS UART3e_RTS CODEC3_CLK
PSC3_3 I/O(I) GPIO USB2_RXD UART3_CTS UART3e_CTS CODEC3_FRAME
PSC3_4 I/O(I) LP_CS_6 USB2_RXP LP_CS_6 UART3e_DCD LP_CS_6
PSC3_5 I/O LP_CS_7 USB2_RXN LP_CS_7 LP_CS_7 LP_CS_7
PSC3_6 I/O GPIO USB2_PRTPWR GPIO GPIO GPIO
PSC3_7 I/O GPIO USB2_SPEED GPIO GPIO GPIO
PSC3_8 I/O INTERRUPT_8 USB2_SUSPEND INTERRUPT INTERRUPT INTERRUPT
PSC3_9 I/O GPIO_W/WAKE-UP USB2_OVRCNT GPIO_W/WAKE_UP GPIO_W/WAKE_UP GPIO_W/WAKE_UP
GPIO USB2 UART3(e) CODEC3 SPI
Pin Drivers and MUX Logic
4 10
PSC3_5 PSC3_6 PSC3_7 PSC3_8 PSC3_9
10 5
PSC3_0 PSC3_1 PSC3_2 PSC3_3 PSC3_4
4
Function
Port_conf
[20:23]
PSC3_0 PSC3_1 PSC3_2 PSC3_3 PSC3_4 PSC3_5 PSC3_6 PSC3_7 PSC3_8 PSC3_9
GPIO 0000 GPIO GPIO GPIO GPIO LP_CS_6 or
INTERRUPT LP_CS_7 or
INTERRUPT GPIO GPIO INTERRUPT GPIO_W/WAKE-UP
USB2 0001 USB2_OE USB2_TXN USB2_TXP USB2_RXD USB2_RXP USB2_RXN USB2_PRTPW
R USB2_SPEED USB2_SUSPE
ND
USB2_OVRCNT
UART3 0100 UART3_TXD UART3_RXD UART3_RTS UART3_CTS LP_CS_6 LP_CS_7 GPIO GPIO INTERRUPT GPIO_W/WAKE_UP
UART3e 0101 UART3e_TXD UART3e_RXD UART3e_RTS UART3e_CTS UART3e_DCD LP_CS_7 GPIO GPIO INTERRUPT GPIO_W/WAKE_UP
CODEC3 0110 CODEC3_TXD CODEC3_RXD CODEC3_CLK CODEC3_FRA
ME
LP_CS_6 LP_CS_7 GPIO GPIO INTERRUPT GPIO_W/WAKE_UP
CODEC3 w/
MCLK
0111 CODEC3_w/
MCLK_TXD CODEC3_w/
MCLK_RXD CODEC3_w/M
CLK_CLK CODEC3_w/M
CLK_FRAME LP_CS_6 LP_CS_7 CODEC3_w/M
CLK_MCLK GPIO INTERRUPT GPIO_W/WAKE-UP
SPI 100X GPIO GPIO GPIO GPIO LP_CS_6 LP_CS_7 SPI_MOSI SPI_MISO SPI_SS SPI_CLK
UART3 / SPI 1100 UART3_TXD UART3_RXD UART3_RTS UART3_CTS LP_CS_6 LP_CS_7 SPI_MOSI SPI_MISO SPI_SS SPI_CLK
UART3e / SPI 1101 UART3e_TXD UART3e_RXD UART3e_RTS UART3e_CTS UART3e_DCD LP_CS_7 SPI_MOSI SPI_MISO SPI_SS SPI_CLK
CODEC3 /
SPI
111X CODEC3_TXD CODEC3_RXD CODEC3_CLK CODEC3_FRA
ME
LP_CS_6 LP_CS_7 SPI_MOSI SPI_MISO SPI_SS SPI_CLK
1. If Soft Modem or RS-232 functionality is desired, use UARTe/CODEC function and use available
NOTES:
GPIO from this or any other port.
2. Second USB port (USB2) can be configured on PSC3 or on the Ethernet port, but not both locations.
3. PSC3_4 can be configured to be LP_CS6 or an interrupt GPIO, except when PS3 is in USB2 or UART3e modes
In these modes, CS6 is not available.
4. PSC3_5 can be configured to be LP_CS7 or an interrupt GPIO, except when PS3 is in USB2 mode.
In this mode, LP_CS7 is not available.
