Page 407

MPC5200B Users Guide, Rev. 1
12-4
Freescale Semiconductor
Host Controller Interface

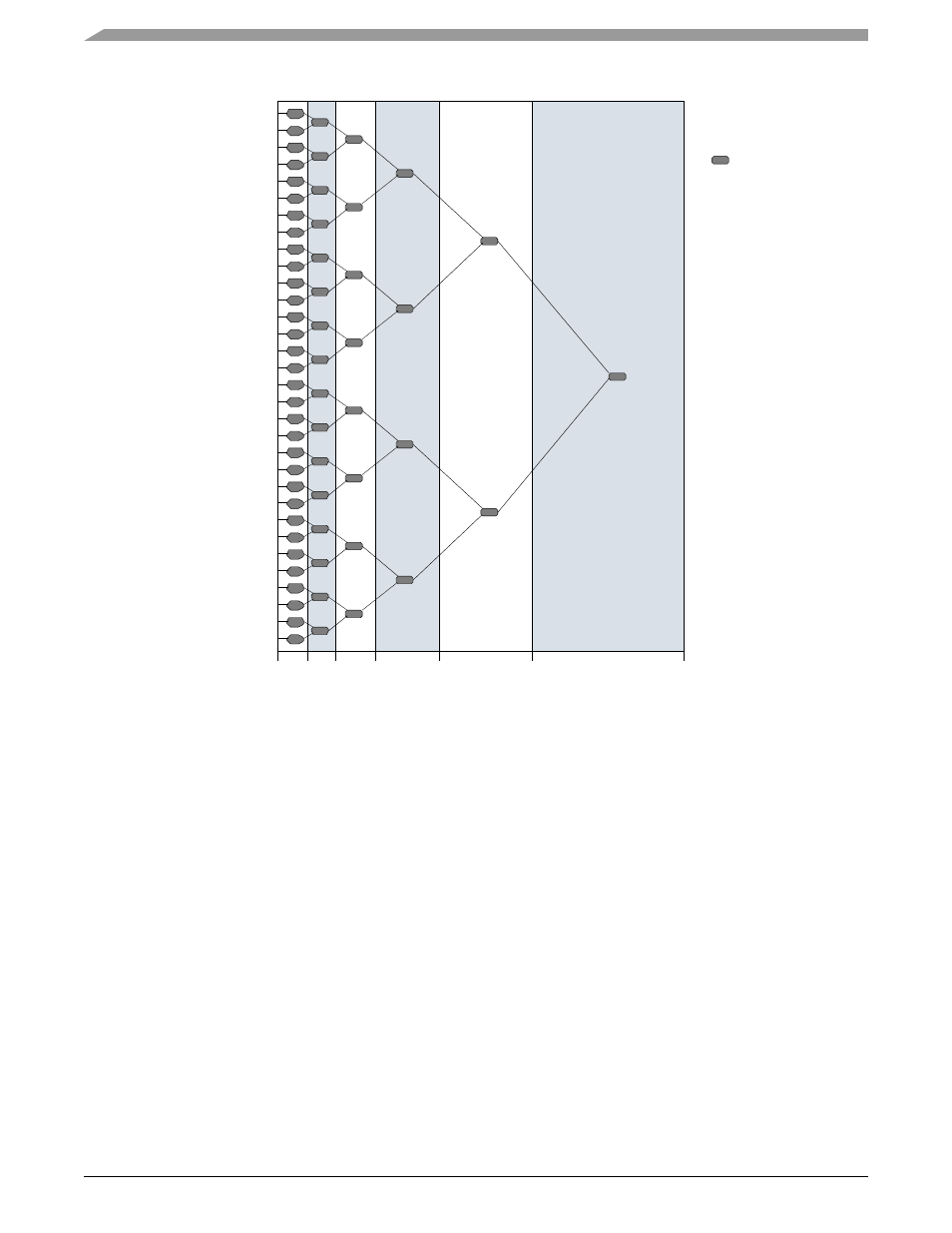

Figure 12-4. Interrupt ED Structure
shows a sample interrupt endpoint schedule. The schedule shows:
•
two endpoint descriptors at a 1ms poll interval
•
two endpoint descriptors at a 2ms poll interval
•
one endpoint descriptor at a 4ms poll interval
•
two endpoint descriptors at an 8ms poll interval
•
two endpoint descriptors at a 16ms poll interval
•
two endpoint descriptors at a 32ms poll interval.
NOTE
Unused interrupt endpoint placeholders are bypassed and the link is connected to the next available
endpoint in the hierarchy.
0
17
8
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
24
20
28
18
26
22
30
25
21
29
19
27
23
31
32 16
8
4
2
1
Interrupt
Endpoint
Descriptor
Placeholder
Endpoint Poll Interval (ms)
Interrupt
Headpointers
