General Purpose I/O (GPIO)
MPC5200B Users Guide, Rev. 1
Freescale Semiconductor 7-25
7.3.1 GPIO Pin Multiplexing

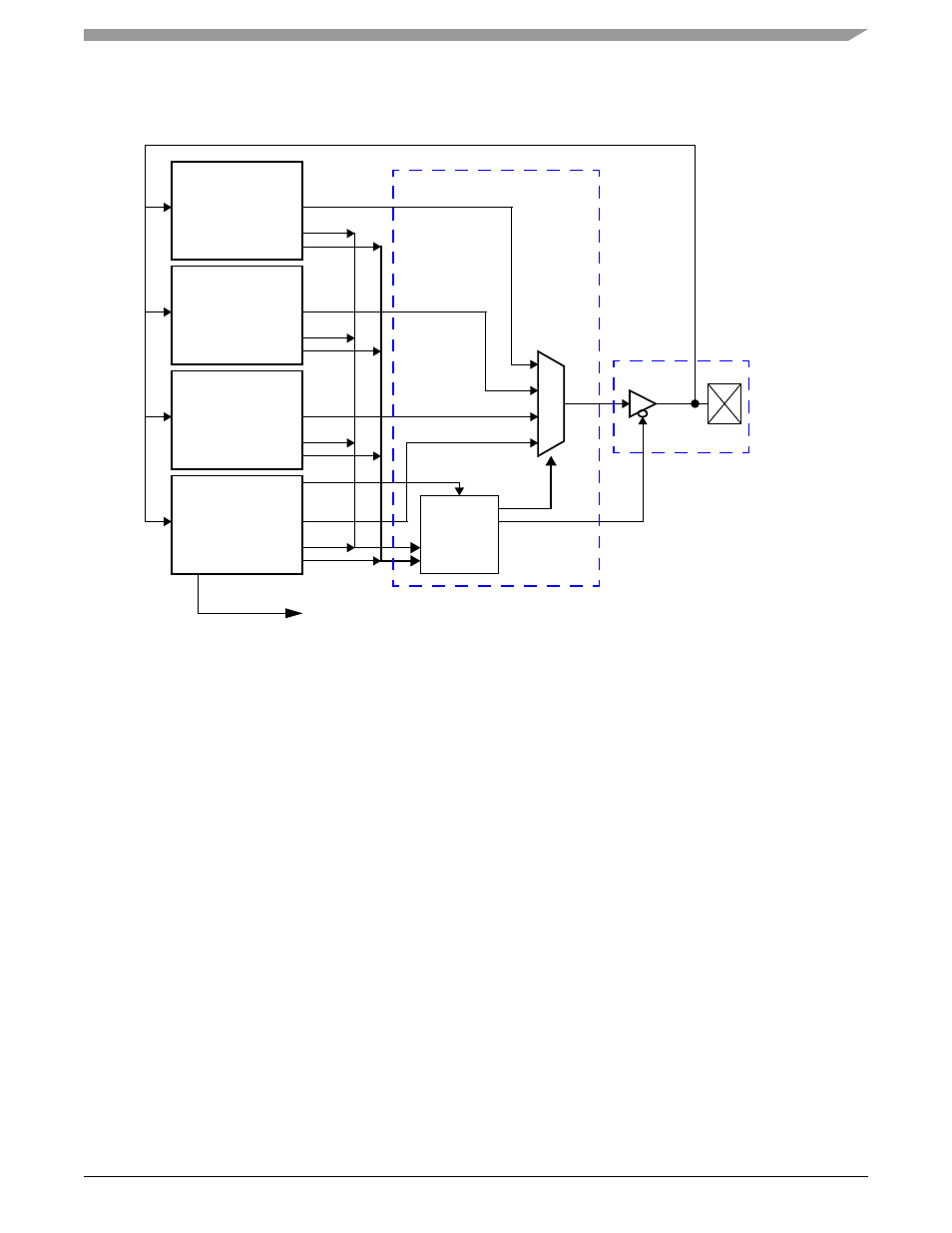

Figure 7-3 shows the GPIO/Generic MUX cell.
Figure 7-3. GPIO/Generic MUX Cell
Pin MUX Logic
I/O Cell
Alternate Func 1
IN OUT
BC
Enabled
Alternate Func 2
IN OUT
BC
Enabled
TIMER
IN OUT
BC
Enabled
GPIO/d/W
IN OUT
BC
Enabled
ODconfig
Multi-
Function
Output Enable
Interrupt for WakeUp supported GPIO pins only
Awake
Note:
1. Open-Drain Emulation is supported on the GPIO function.
2. Pin MUX Logic is controlled by the Port Configuration Register and supersedes any individual
GPIO register programming.
I/O
Priority
Logic
