Bank Switch Command Input

The

Bank Switch Command Input

field is active only when the

Command

bank switch mode is selected. This field accesses a discrete I/O

edit panel, where you can assign the

Bank Switch

command to one of the

Module I/O

System I/O

inputs, and thereby control bank switching from

your process equipment.

When you pick the

Bank Switch Command Input

field in the

Acquisition

System Settings

panel, the

Module I/O

panel appears, as shown in

Figure 3.21.

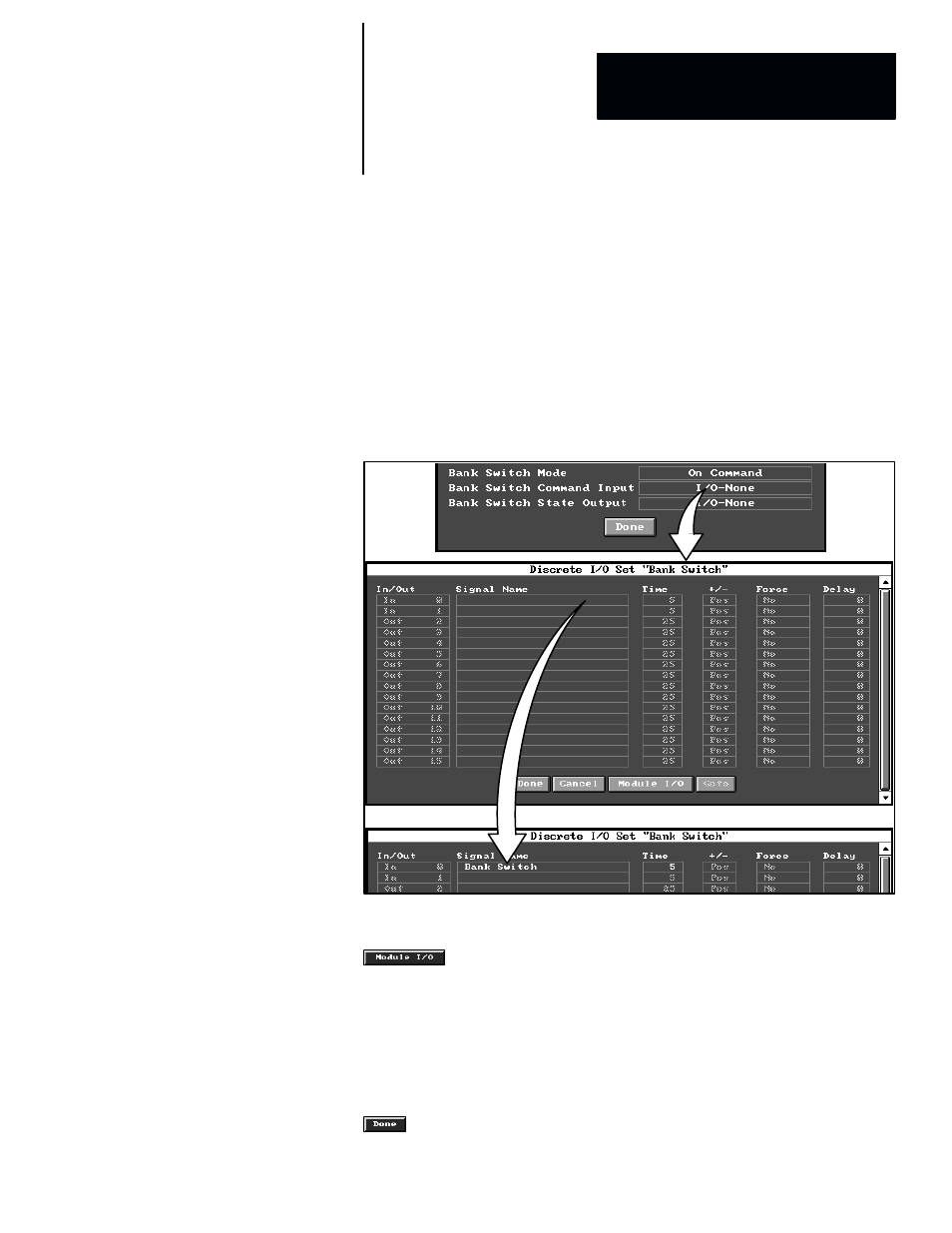

Figure 3.21 Example: Assigning Bank Switch to Module I/O Input 0

ЗЗ

ЗЗЗЗЗ

(Note that the

Module I/O

panel always appears first by default. If you want

to assign the bank switch function to a

System I/O

input, you can pick the

button to access the

I/O Device

panel, from which you can then

select the

System I/O

panel.)

As the example in Figure 3.21 illustrates, when you pick the “

In 0

” field in

the

Module I/O

panel, “

Bank Switch

” appears in the field, indicating that it

is now assigned as

Module I/O

input 0. (Note that you can remove

Bank

Switch

from input 0 by picking the same field again.)

After assigning the bank switch function to the appropriate input, pick the

button to exit back to the

Acquisition System Settings

panel.
