Rockwell Automation 5370-CVIM2 Module User Manual
Page 507
5
Chapter
Chapter 10
Environment Menu Selections
10–21
Figure 10.22 illustrates an expanded detail panel. In this case, it presents
results data from a window tool.

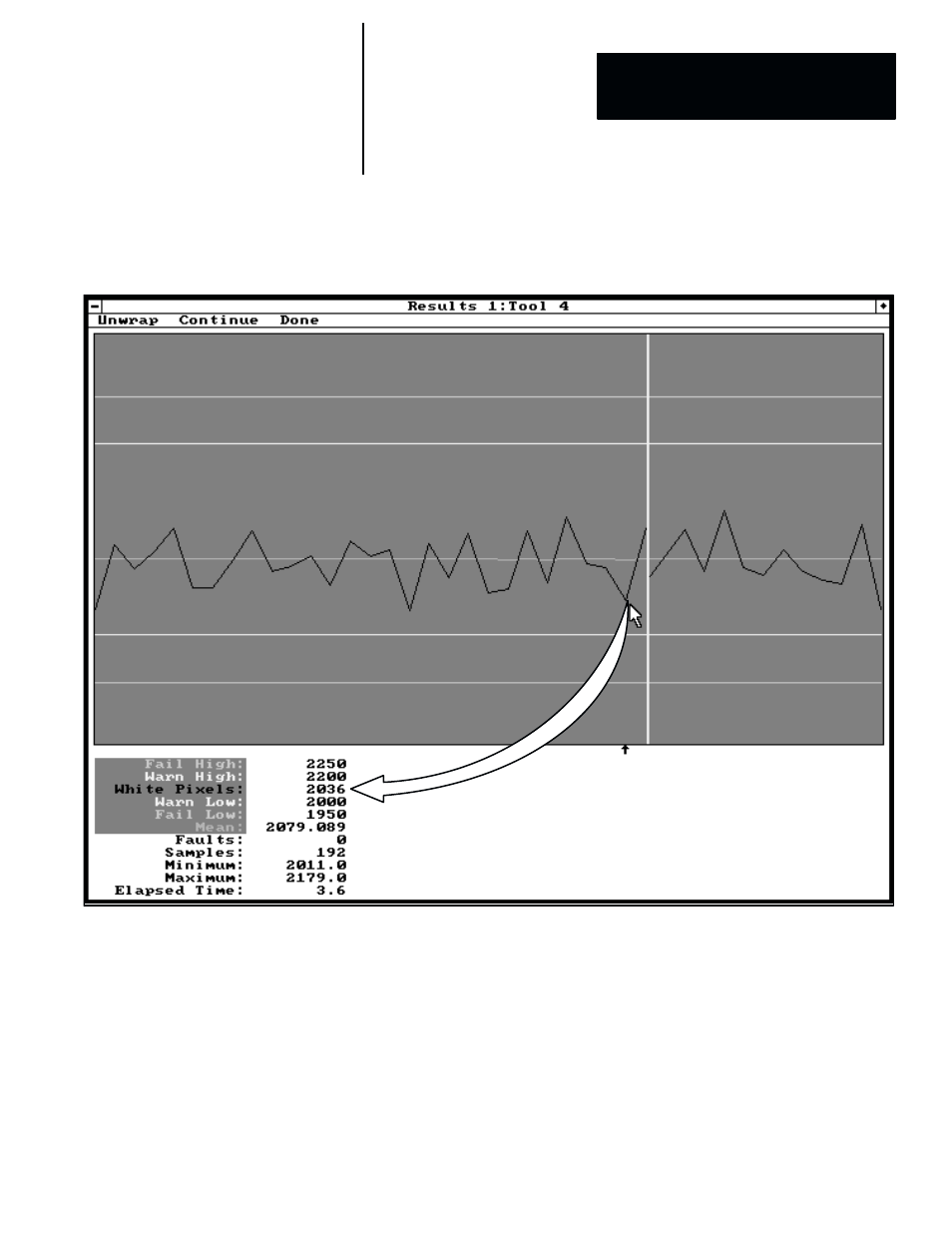

Figure 10.22 Example: Tool Results Graphic Display Panel (Maximized)
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
ЗЗЗЗЗЗЗЗЗЗЗЗЗ
The graphic data elements appearing in this example panel are typical for all
graphic displays, and are described briefly as follows:
•
Dynamic horizontal line (black) –– This line records the results value of
each inspection cycle.
•
Dynamic vertical line (yellow) –– The line moves left to right, and
shows the point of the current inspection result. Note that the inspection
results on the black line just to the left of the yellow vertical line are the
newest, while the results just to the right are the oldest.
