Chapter 4
Inspection Configuration
4–43
To store an image in a different device, enter the device name, a colon, and a
file name, such as . . .
EE:feature1
In all cases, after entering the appropriate image name in the keyboard panel,
pick the
key. When you do, the CVIM2 system begins saving the
subimage and displays this message:
Saving Image
Please Wait
When the CVIM2 system finishes saving the subimage, it displays this
message:
Done saving image
Compression ratio 2:1
The compression ratio value appearing in the message is truncated; thus, 2:1
could actually be 2.9:1. Also, the actual compression ratio value varies with
the details in the subimage. For lossless compression, however, it cannot
exceed the theoretical limit of 4:1.
After a period of time that varies according to the size of the subimage, the
“Done” message disappears and the
Image Manager
panel reappears. Note
that the newly saved image file appears as “
EE:image1 1, 55x59x8
” in
the scrolling window, as shown in Figure 4.34.

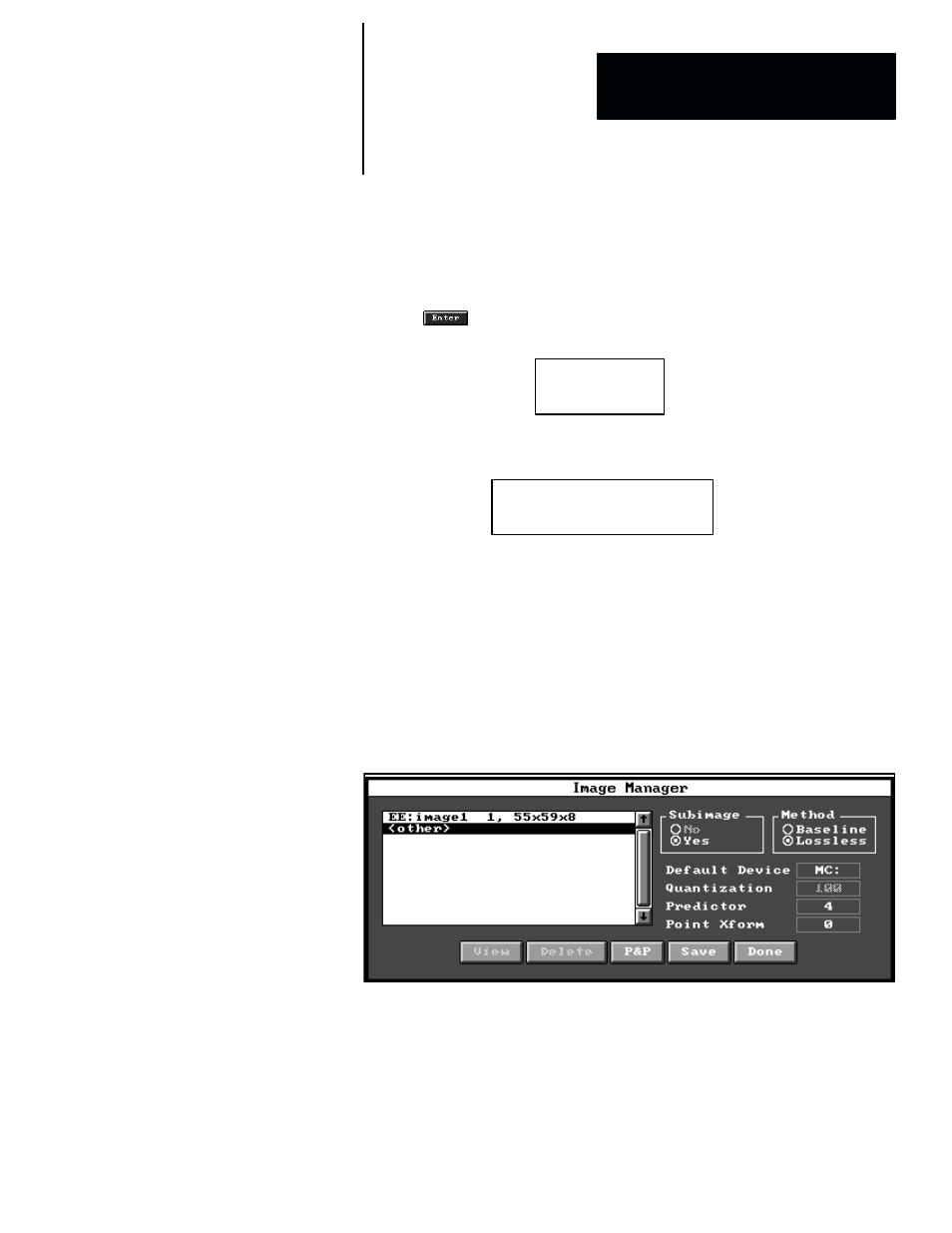

Figure 4.34 Example: Image Manager Panel After Saving Image
The “
EE:image1
” identifies the memory device and filename of the image
file. The “
1,
” indicates that the image is a gray scale image (currently, this
value is always “1”). The “
55x59x8
” indicates the image file size in pixels.
