Chapter

Chapter 7

Inspection Tools

7–145

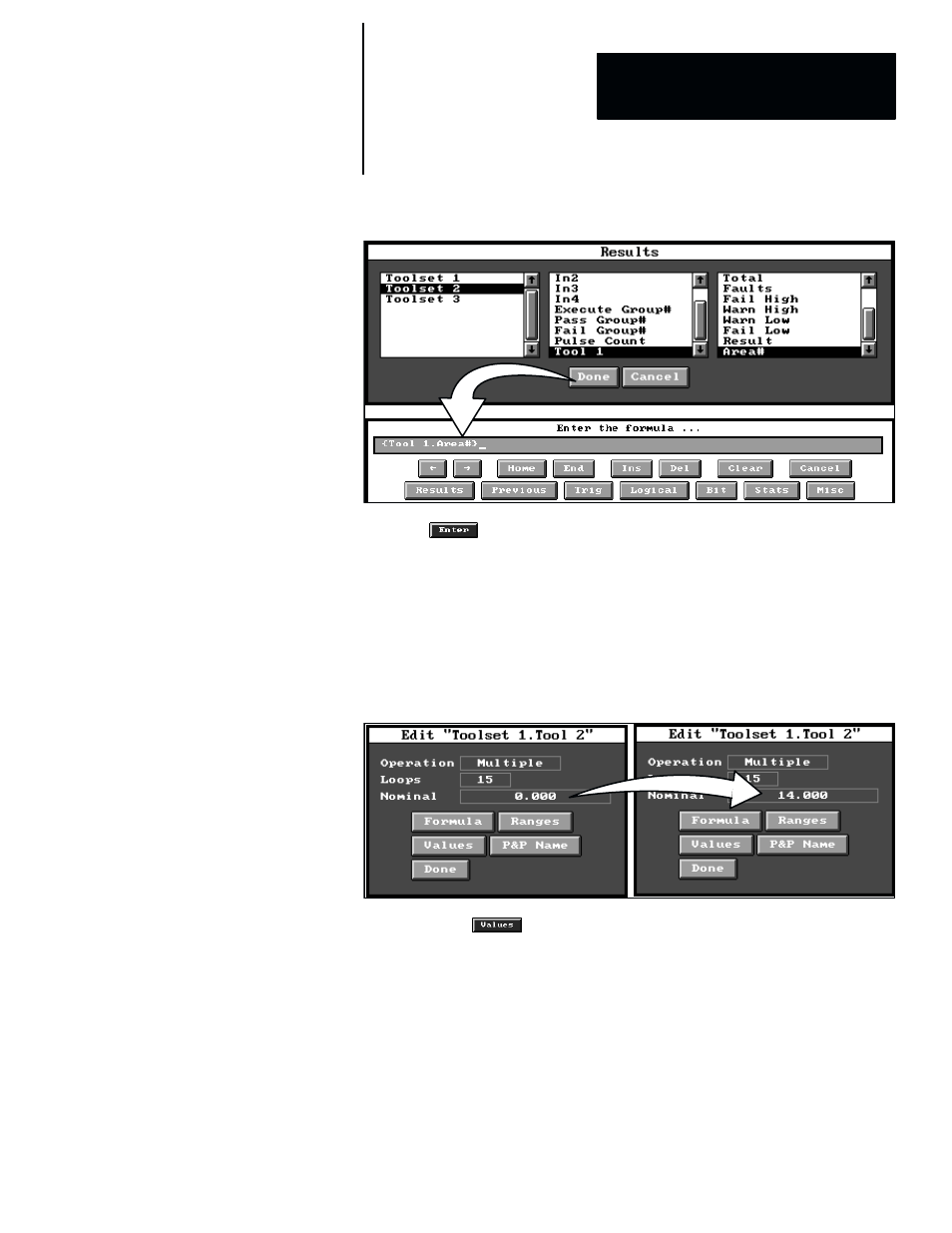

Figure 7.116 Example: Selecting “Area” Formula For Multiple Operation

ЗЗЗЗЗЗЗ

After the

button is picked and the formula entry keyboard exited, the

Loops

field in the math tool edit panel must be set to 15 in order to “loop”

through the formula up to 15 times.

When the

Nominal

field is picked, the math tool “learns” the number of

objects whose area has been generated, and this value appears in the field, as
shown in Figure 7.117. Note that in this example the number is 14, one less
than the number allowed by the

Loops

setting of 15.

Figure 7.117 Example: “Learning” the Number of Objects

ЗЗЗЗЗЗЗЗЗ

Next, when the

button is picked, the

Math Values

panel appears, as

shown in Figure 7.118 (page 7–146).
