Rockwell Automation 5370-CVIM2 Module User Manual
Page 107
5
Chapter
Chapter 4
Inspection Configuration
4–21

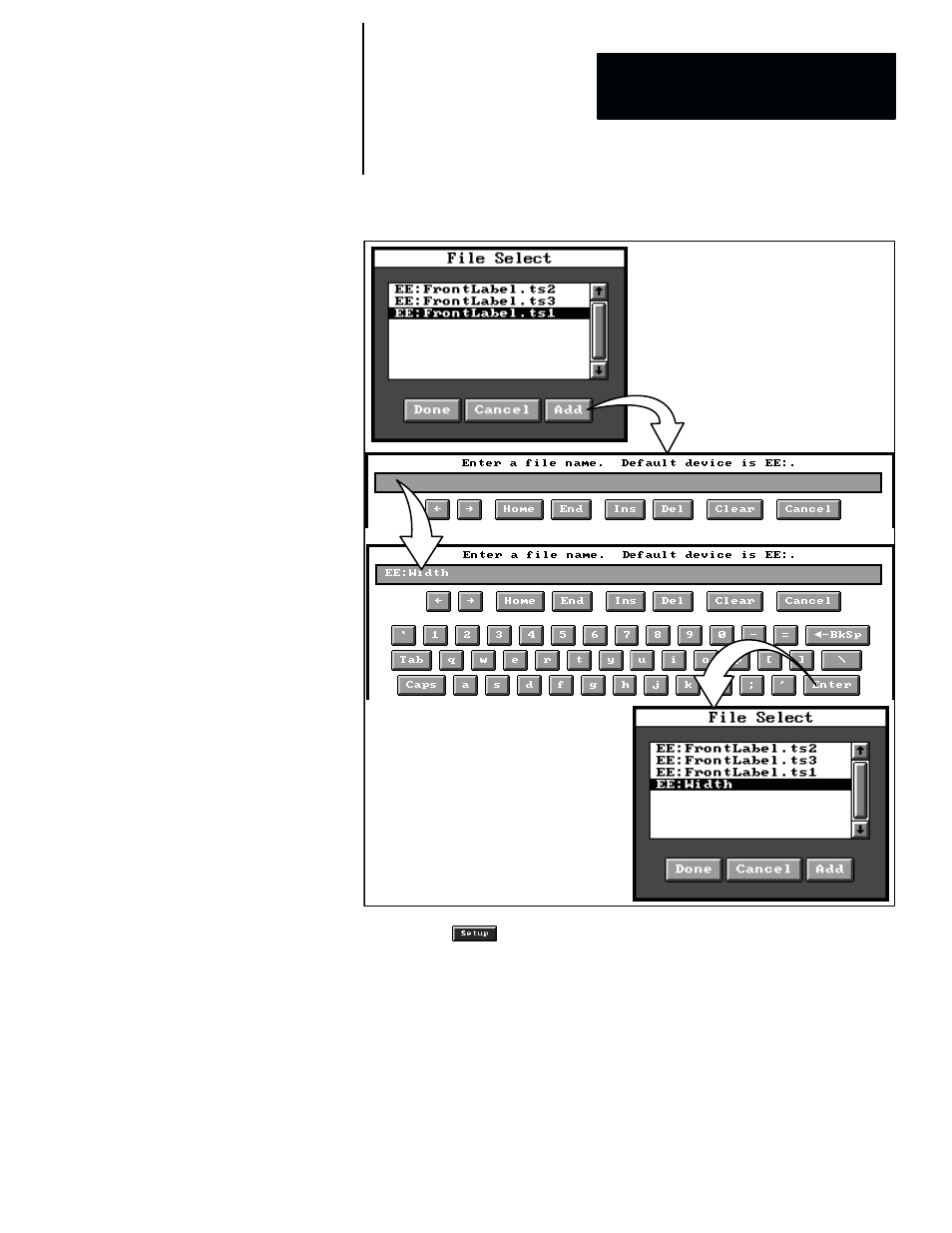

Figure 4.14 Example: File Select Panel
ЗЗЗЗЗ
ЗЗЗЗЗ
ЗЗЗЗЗ
ЗЗЗ
ЗЗЗ
ЗЗЗ
ЗЗЗ
ЗЗЗЗЗЗ
ЗЗЗЗЗЗ
ЗЗЗЗЗЗ
ЗЗЗЗЗЗ
3. Pick the
button. When you do, the setup mode image/tool display
panel (named “
Toolset 1
” in this example) appears on the screen, as
shown in Figure 4.15 (page 4–22). This panel is blank (dark) initially.
The purpose of the setup mode image/tool display panel is to display a
camera image during CVIM2 system setup so that you can configure the
inspection tools and evaluate their performance offline before placing the
system online.
(Also appearing, possibly in icon form, is the results display panel. This
panel is described in detail in Chapter 10, page 10–17, in the Inspection
Results Display Panel section.)
