Chapter 10
Environment Menu Selections
10–16
Display
When you pick Display in the menu bar, the Display menu appears, as
shown in Figure 10.18.

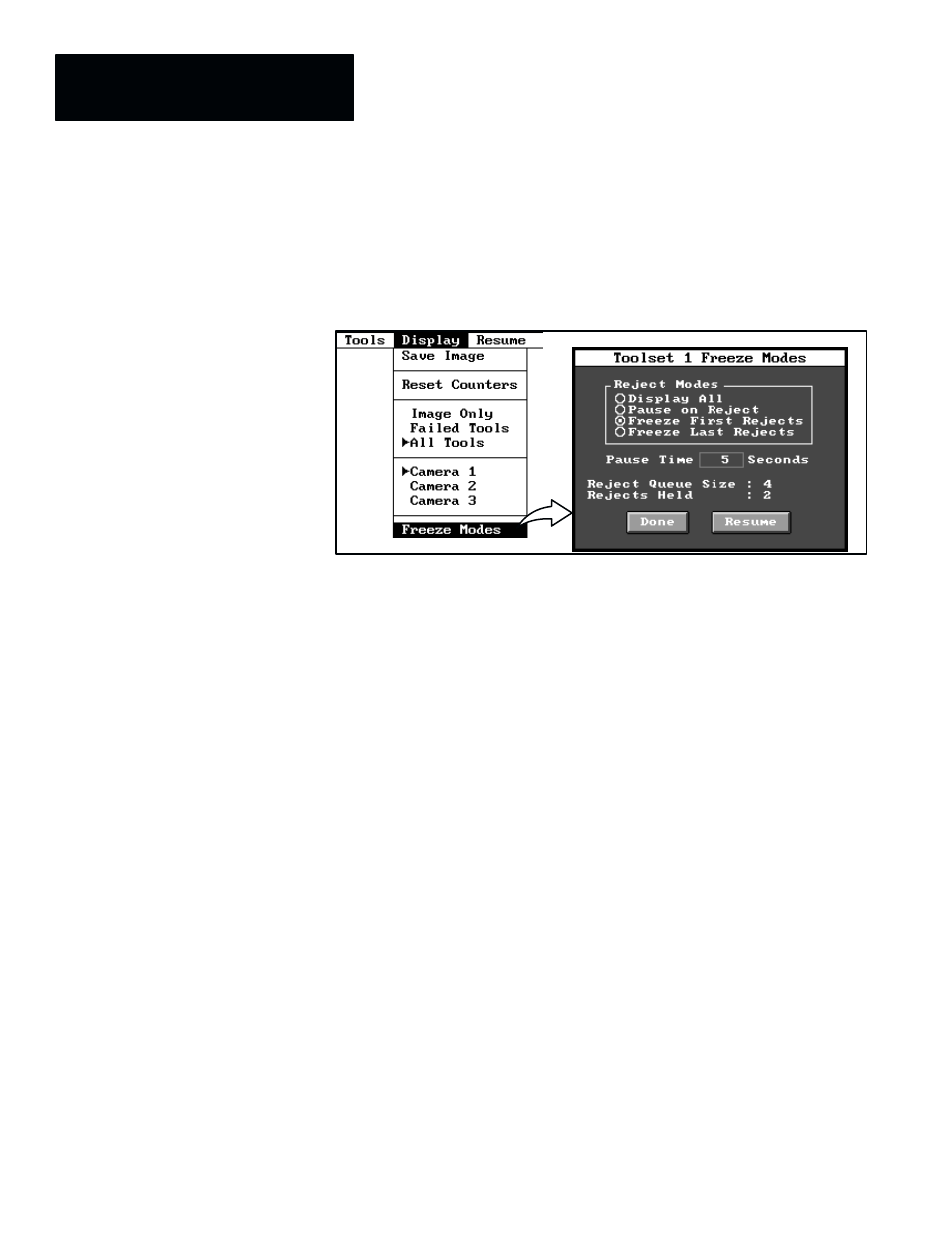

Figure 10.18 Example: Selecting the Freeze Mode Panel
ЗЗЗ
ЗЗЗ
ЗЗЗ
Note that the save image, reset counters, tool, and camera selections for the
online
Display panel are the same as in the setup mode Display panel (which
is described in Chapter 4, Inspection Configuration, on page 4–23). The
difference is that the online
Display panel does not contain a Load Image
field, and does contain a Freeze Modes field.
When you pick the Freeze Modes field, the Freeze Modes panel appears,
as shown in Figure 10.18. The selections in this panel cause the system to
“freeze” an image when a tool failure occurs, thus enabling you to inspect the
image and possibly determine the cause of the tool failure.
Note that in the Reject Modes section of the panel you can select one of the
following four reject display conditions:
•
Display All –– This selection causes the system to update the display
continuously regardless of reject conditions.
•
Pause on Reject –– This selection causes the system to “pause” for the
time specified in the
Pause Time field; that is, the image is “frozen”
when a reject occurs, for the specified pause time (1 to 30 seconds). After
that, screen updates resume, and they continue until the next reject occurs.
Inspection operations are not halted.
•
Freeze First Rejects, Freeze Last Rejects –– These selections cause the
system to store the image associated with a reject condition. Inspection
operations are not halted.
When Freeze First Rejects is selected, the first rejected image will be
held on the display. While the image is frozen, subsequent rejected
images will be stored in the reject queue. Once the queue is full,
additional rejected images will be discarded. When you select
Resume ,
the CVIM2 will continue to update the image display if the reject queue is
empty; otherwise, the next image in the queue will be removed from the
queue and displayed.
