Chapter 7
Inspection Tools
7–94
As noted earlier, the Template field in the tool edit panel is active when an
S1 – T or S1 + T arithmetic operation is selected. When you pick the
Template field, the Image Manager panel appears, as shown in
Figure 7.77.

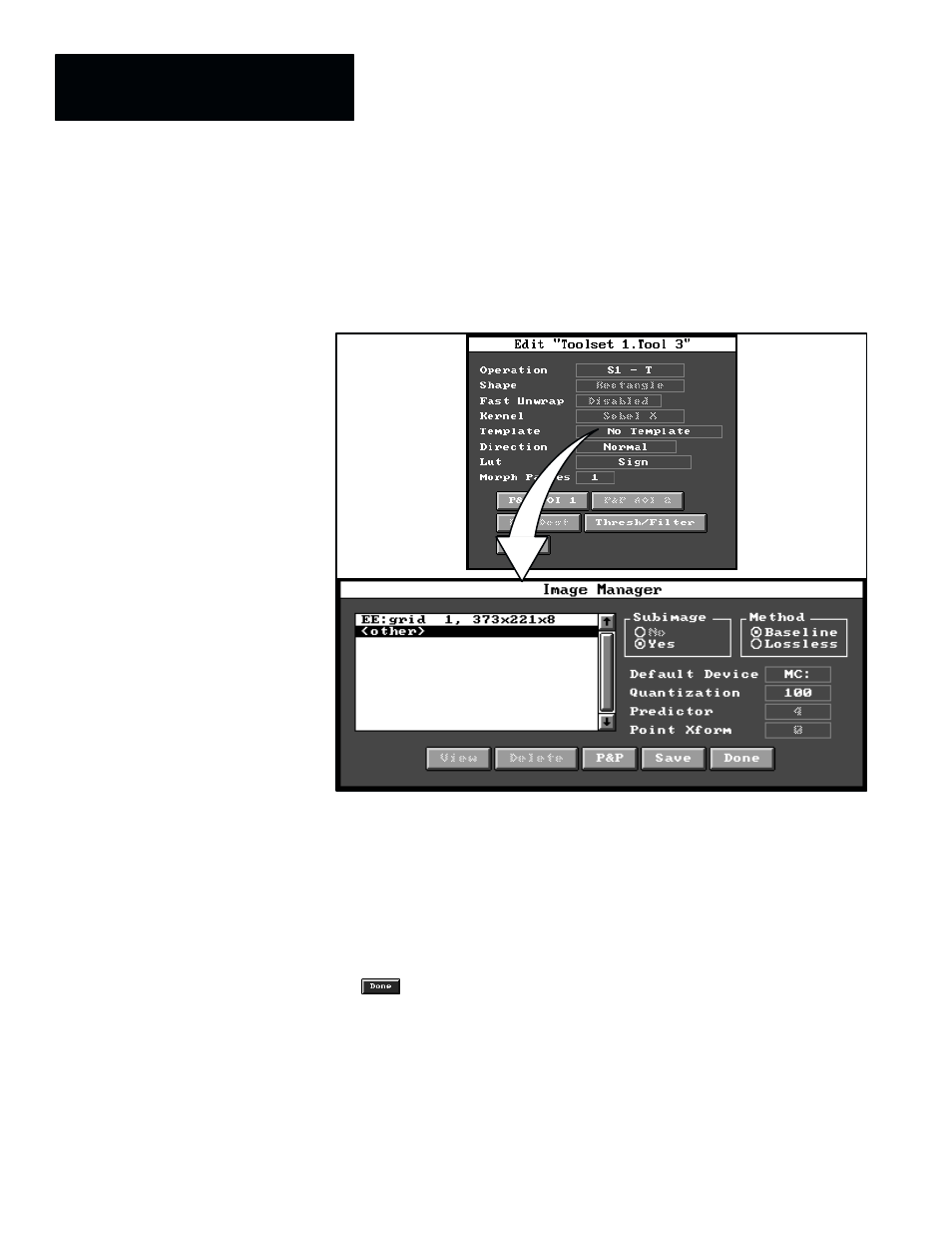

Figure 7.77 Accessing the Image Manager Panel to Select a Template Subimage
ЗЗЗЗЗ
ЗЗЗЗЗ
ЗЗЗЗЗ
ЗЗЗЗЗ
ЗЗЗЗЗ
ЗЗЗЗЗ ЗЗЗ
ЗЗЗ
ЗЗЗ
You can use the Image Manager panel to either create a new template
“subimage” from a portion of the current image or select an existing template
from the scrolling list in the panel, if appropriate. To create a new template,
leave the highlight bar at the
(other) entry in the list, then refer to Chapter 4,
Inspection Configuration, under the Image Manager Panel heading on page
4–40 for details about configuring a new subimage.
To select an existing template, highlight the appropriate subimage file name
in the scrolling list (such as the
EE:grid 1, 373x221x8 file name), then pick
the button to exit back to the tool edit panel. The highlighted file name
should now appear in the Template field of the tool edit panel.
Image Tool Template
